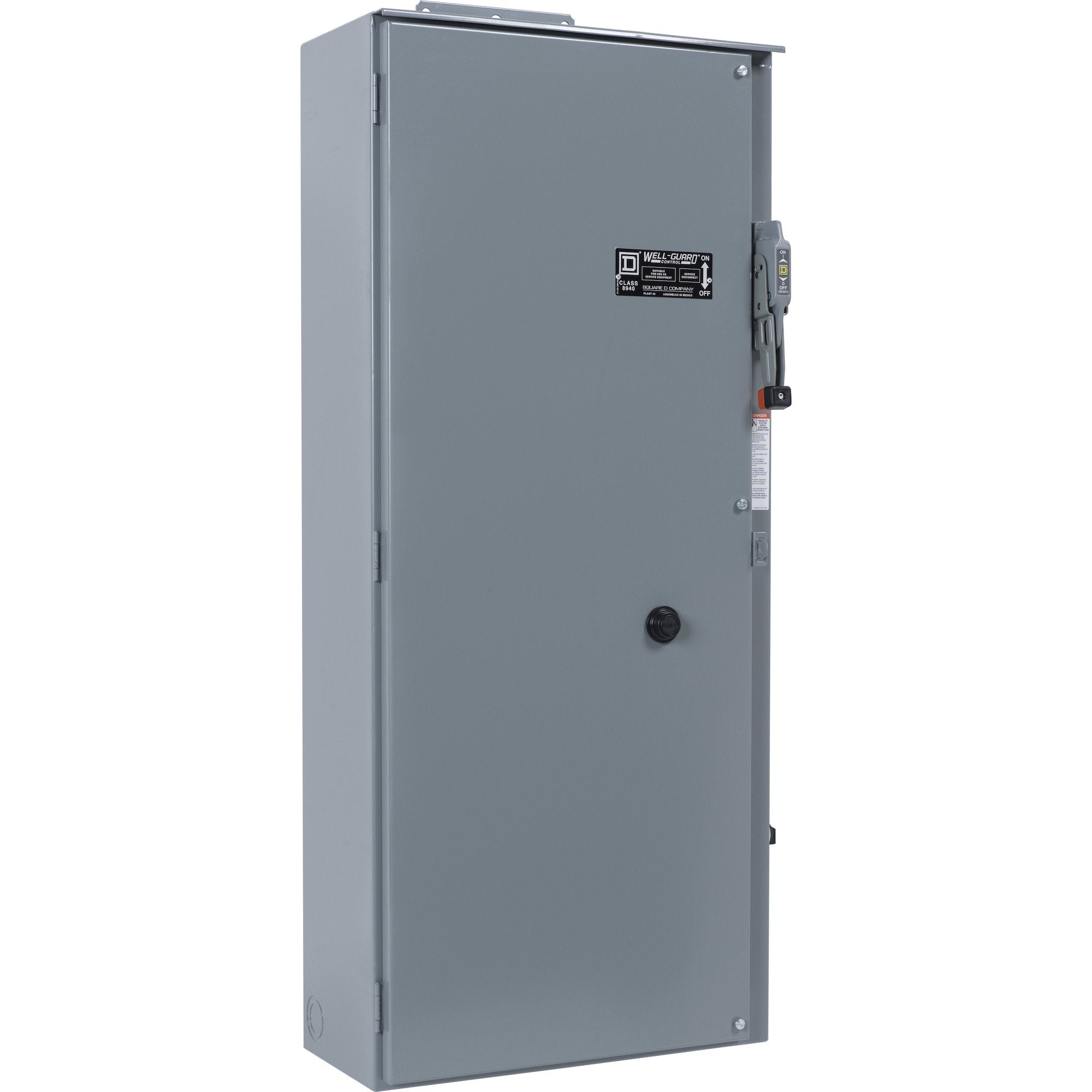

Square D 8940SSE2030 Pump Panel NEMA Type S Well Guard Size 3 90A 5kA SSCR 30HP

Product Description

The Square D 8940SSE2030 is a pump panel designed for effective pumping applications. This model features a NEMA Type S non-reversing magnetic starter suitable for various motor sizes. It includes a 100 amp fusible disconnect switch designed for Class H or K fuses.

• Rated for 30 horsepower motors with options for 20 and 25 horsepower.
• Operates on a 220/240 VAC coil, compatible with 50/60 Hz power.
• Equipped with a Motor Logic overload relay for current detection.

Product Highlights

This pump panel is ideal for use in protecting and controlling pumps, providing necessary overcurrent protection and making it suitable for diverse applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 8940SSE2030
• Country of Origin: Mexico
• Warranty Description: Contractual Warranty: 18 months
• UPC: 785901011804
• Made in USA: No
• Enclosure Dimensions: 49 inches tall, 19.15 inches wide, 10.37 inches deep
