Square D 8940ssd4030 440/480 VAC 45 Amp 30 Hp 3-Pole NEMA 3R Full Voltage Fusible Switch Pump Panel

Product Description

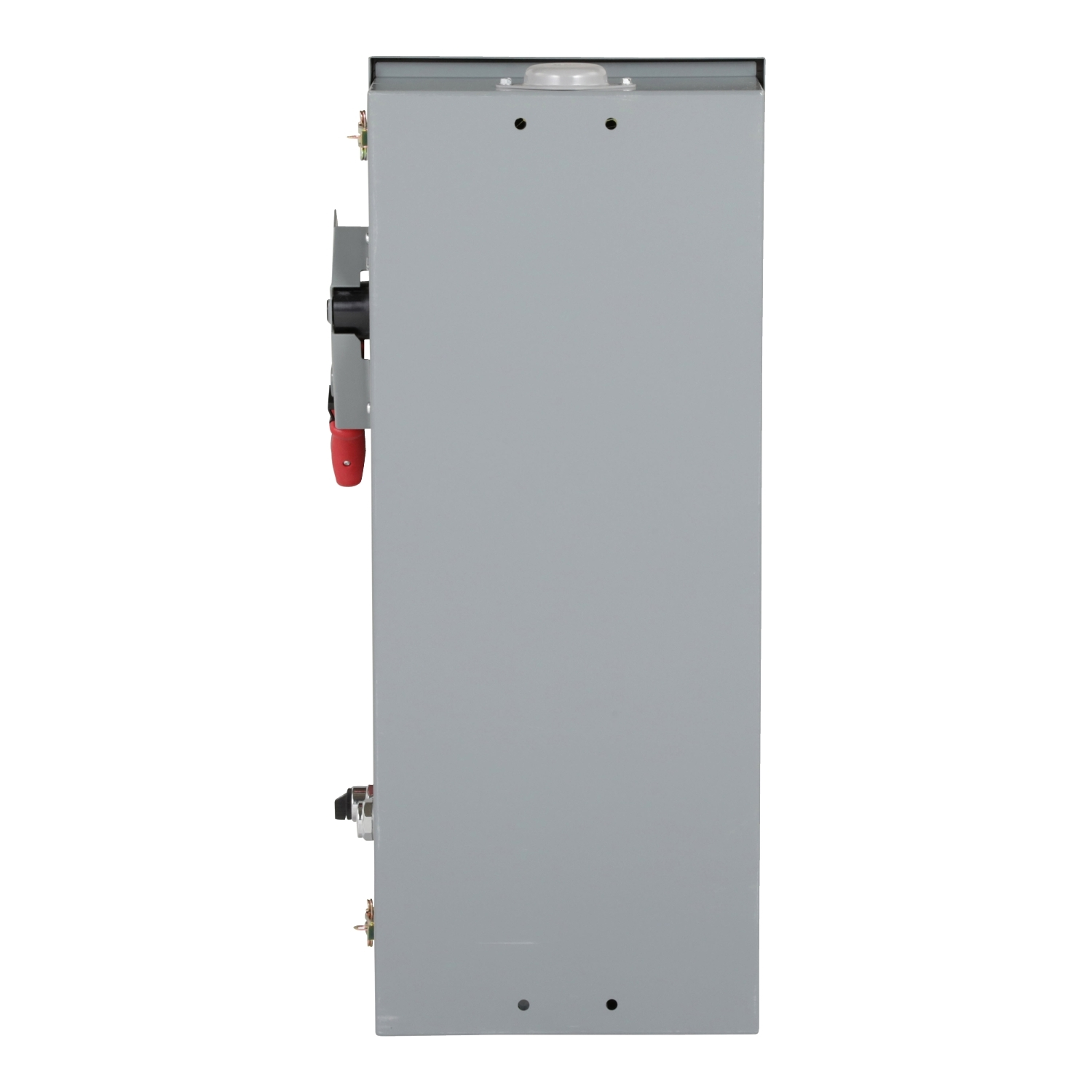

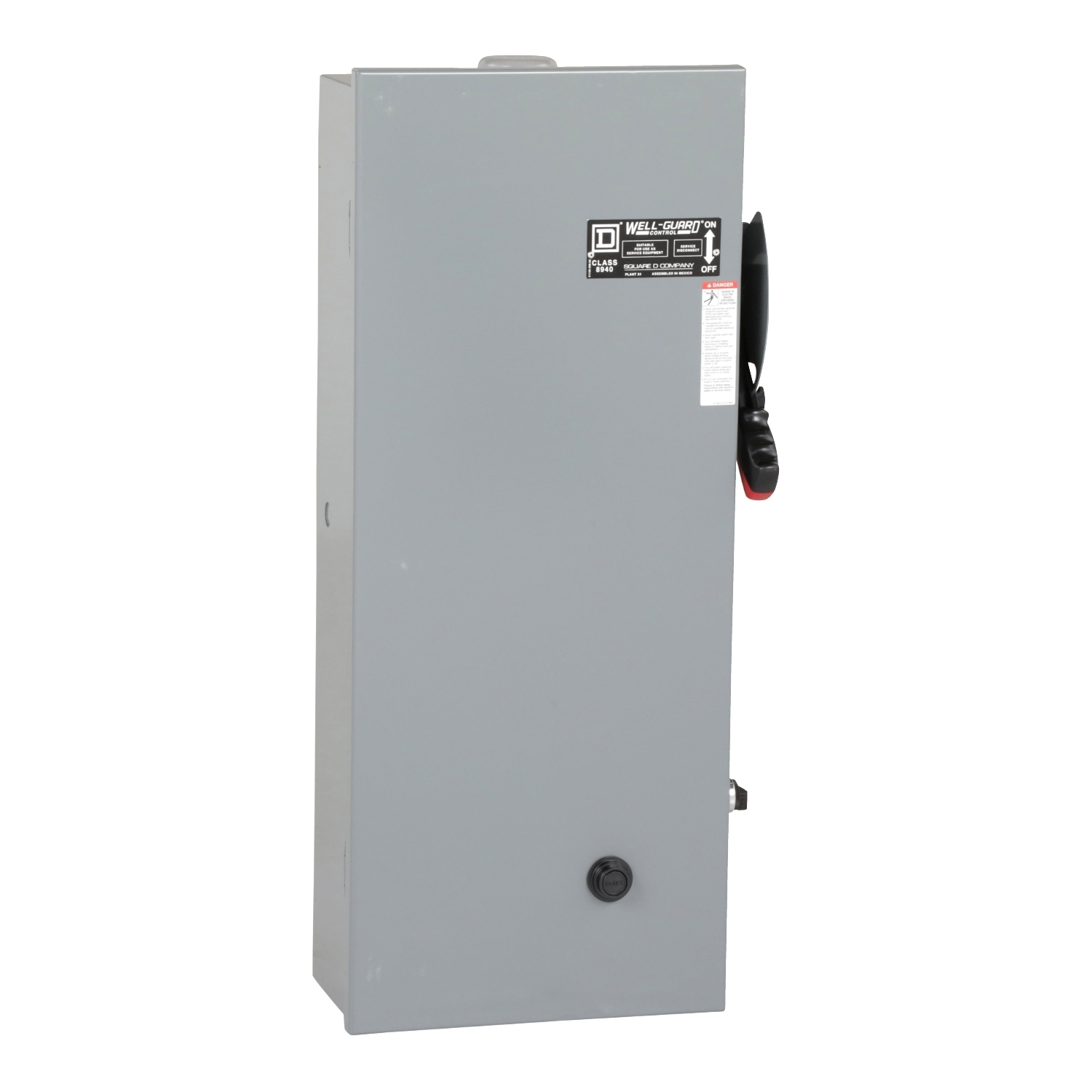

The Square D 8940SSD4030 is a Well-Guard pumping plant panel designed for pumping applications. It provides extra space for field installation of auxiliary equipment and uses Type S non-reversing magnetic starters. The panel features a 60A fusible disconnect switch and a NEMA Size 2 starter with a 30 HP rating at 480 VAC. It also includes a Motor Logic overload relay and a painted sheet steel NEMA 3R rainproof enclosure.

• Designed for pumping applications
• Features a 60A fusible disconnect switch
• NEMA 3R rainproof enclosure

Product Highlights

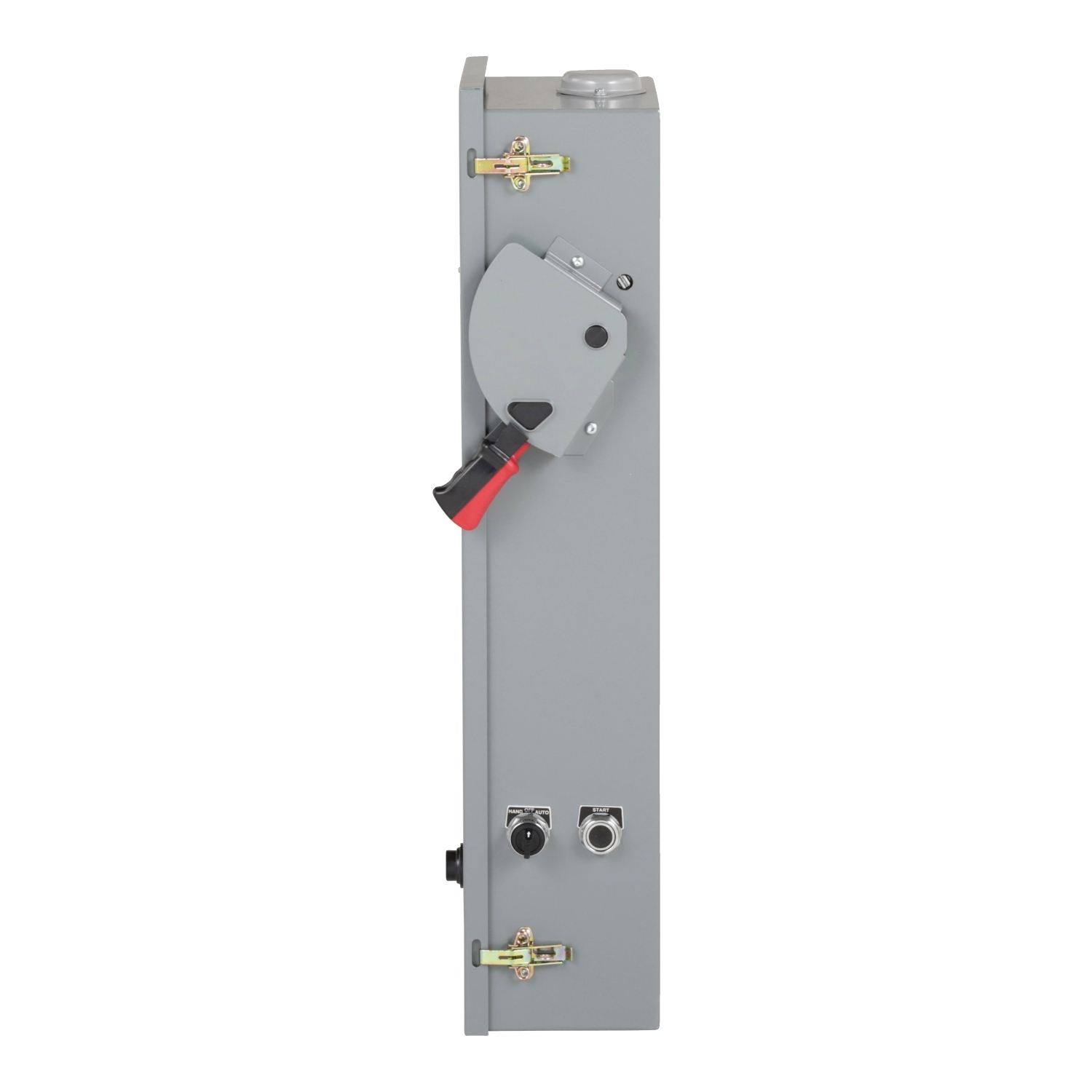

This Square D pump panel is UL listed, CSA certified, and marked Suitable for use as Service Equipment. It includes a START push button and a HAND/OFF/AUTO selector switch.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 8940SSD4030
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: 8940SSD4030
• Type: Class 8940 type SS
• Brand: Square D
• Voltage: 480 VAC
• Amperage: 45 Amp
• Enclosure: NEMA 3R
• Fuse Type: H Or K
• NEMA Size: 2
• Sub Brand: Well-Guard Control
• Reset Type: MOTOR LOGIC SOLID STATE CLASS 10/20
• Applications: PUMPING
• Mounting Type: Surface
• TC Connection: SCREW TERMINAL
• Certifications: UL Listed
• Disconnect Type: Fusible disconnect switch
• Number of Poles: 3 Pole
• Line Rated Current: 45 A
• Environmental Conditions: WEATHERPROOF ENCLOSURE FOR INDOOR/OUTDOOR
• Motor/Line Voltage: 480 VAC at 50/60 Hz
• Power Rating: 30 HP
• Number of Phases: Poly-Phase
• Disconnect Rating: 60 Ampere
• Overloads: Class 10 Ambient Temperature Compensated
• Coil Voltage: 440 V at 50 Hz, 480 V at 60 Hz
• Approval: UL
• Application: Submersible Pump
• Maximum Horse Power Rating: 30-30 hp 480 V AC, 3 phase
• Permissible Voltage: 600 V AC
• Electrical Connection: screw terminal
• Protection Type: overload || phase loss || phase unbalance
• Control Circuit: common control circuit
• Associated Fuse Rating: 60 A
• Device Application: pumping
• Device Short Name: class 8940 type SS
• Thermal Overload Type: Motor Logic solid state class 10/20
• Disconnector Device Type: fusible disconnect switch
• Control Type: selector switch HAND-OFF-AUTO) || push-button START)
• Associated Fuse Current: 60 A
• Phase: 3
• Poles: 3
• Volts AC: 600
• Volts AC Control: 480
• IP/NEMA Rating: NEMA 3R
• SCCR: 5 kA
• Horsepower: 30 Hp
• Fuse Clip: 60A Class HAnd K
