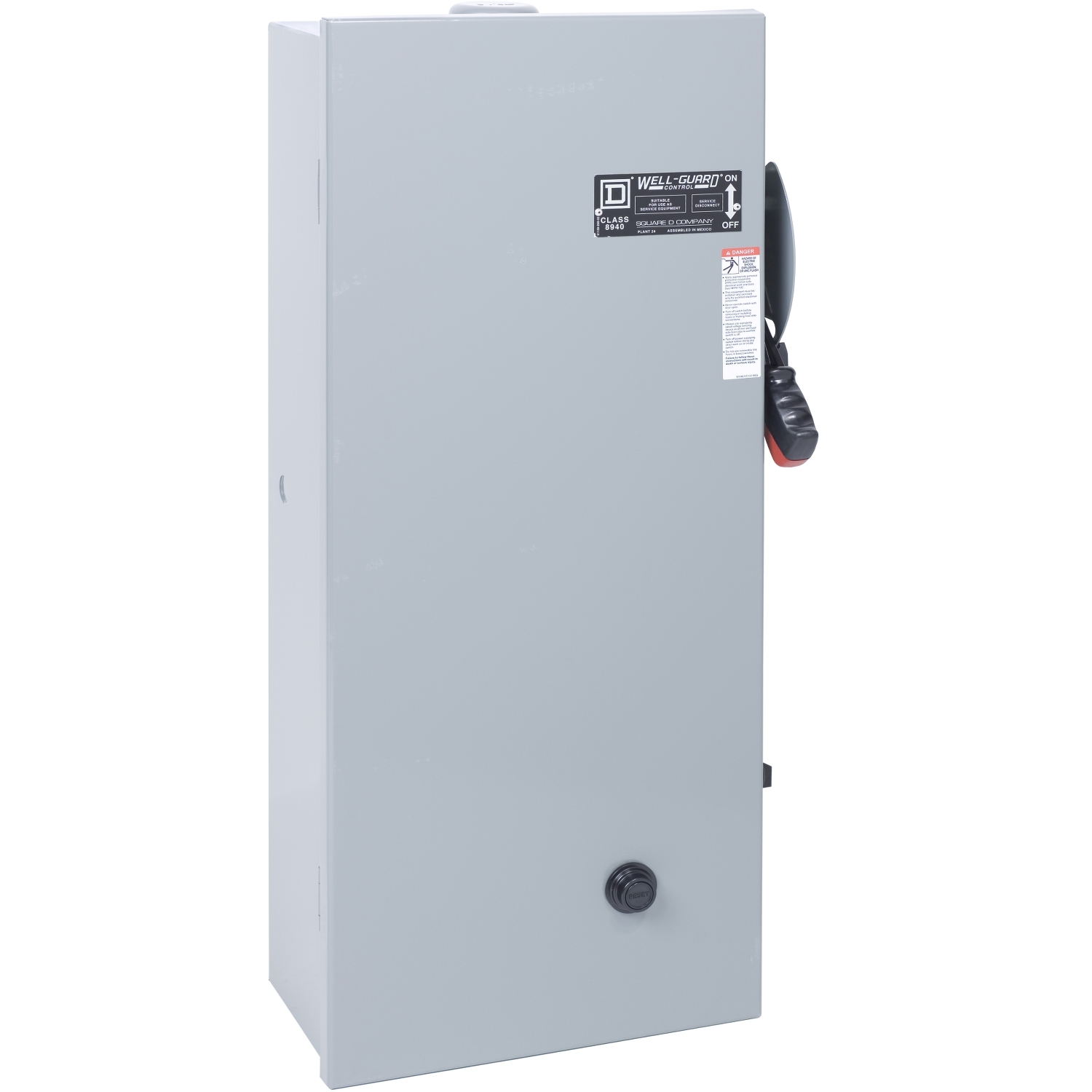

Square D 8940SSD4025 Pump Panel 440/480 VAC 45 Amp 25 Hp 3-Pole NEMA 3R

Product Description

The Square D 8940SSD4025 Well-Guard pumping plant panel is designed for pumping applications, providing extra space for field installation of auxiliary equipment. It uses Type S non-reversing magnetic starters and features a 60A fusible disconnect switch for Class H or K fuses. The 3 pole NEMA Size 2 non-reversing starter has a 45 ampere rating and a Motor Logic overload relay with a 15A to 45A range.

• Designed for pumping applications
• Provides extra space for field installation of auxiliary equipment
• Uses Type S non-reversing magnetic starters

Product Highlights

This pump panel is UL listed, CSA certified and marked Suitable for use as Service Equipment. It features a painted sheet steel NEMA 3R rainproof enclosure.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 8940SSD4025
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: 8940SSD4025
• Type: PUMP PANEL
• Brand: Square D
• Voltage: 480 VAC
• Amperage: 45 Amp
• Enclosure: NEMA 3R
• Fuse Type: H Or K
• NEMA Size: 2
• Sub Brand: Well-Guard Control
• Reset Type: MOTOR LOGIC SOLID STATE CLASS 10/20
• Applications: PUMPING
• Mounting Type: Surface
• TC Connection: SCREW TERMINAL
• Certifications: UL Listed
• Disconnect Type: Fusible disconnect switch
• Number of Poles: 3 Pole
• Country of Origin: Mexico
• Line Rated Current: 45 A
• Environmental Conditions: WEATHERPROOF ENCLOSURE FOR INDOOR/OUTDOOR
• Motor/Line Voltage: 480 VAC at 50/60 Hz
• Power Rating: 15, 20, 25 HP
• Number of Phases: Poly-Phase
• Disconnect Rating: 60 Ampere
• Overloads: Class 10 Ambient Temperature Compensated
• Coil Voltage: 440 V at 50 Hz, 480 V at 60 Hz
• Application: Indoor/Outdoor Applications
• Includes: Hand-Off-Auto Selector Switch, Start Pushbutton, Type S Contactor
• Approval: UL
• 3-Phase HP Rating (Max.): 25 HP
• Rated Current: 45A
• Alternate Catalog Number: 8940SSD4025
• Amperage Rating: 45/60
• Connection: Screw Terminal
• Connection Type: Screw
• Control Type: Pushbutton Start/Selector Switch Hand-Off-Auto
• Phase: 3
• Standard: UL LISTED-NEMA
• Voltage Rating: 480 VAC
• Manufacturer: Schneider Electric
• Enclosure Type: NEMA 3R
