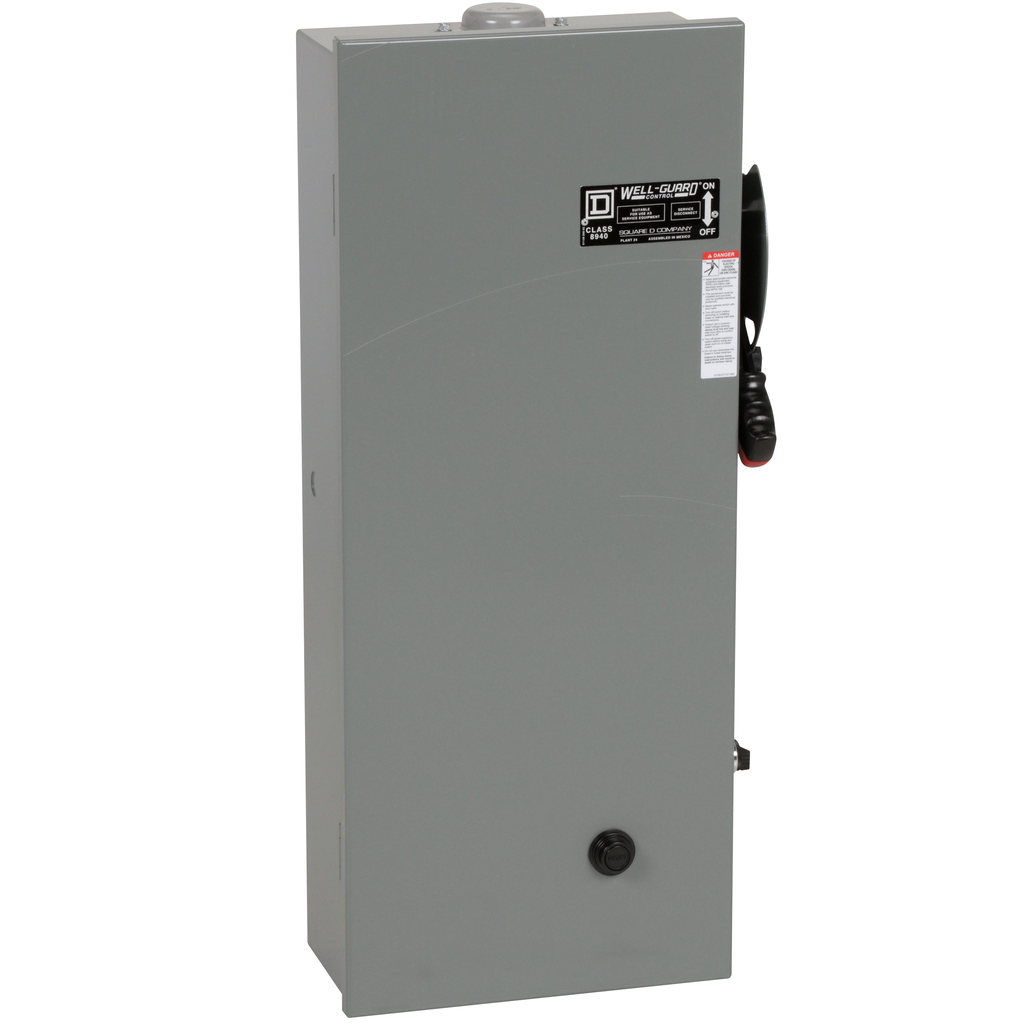

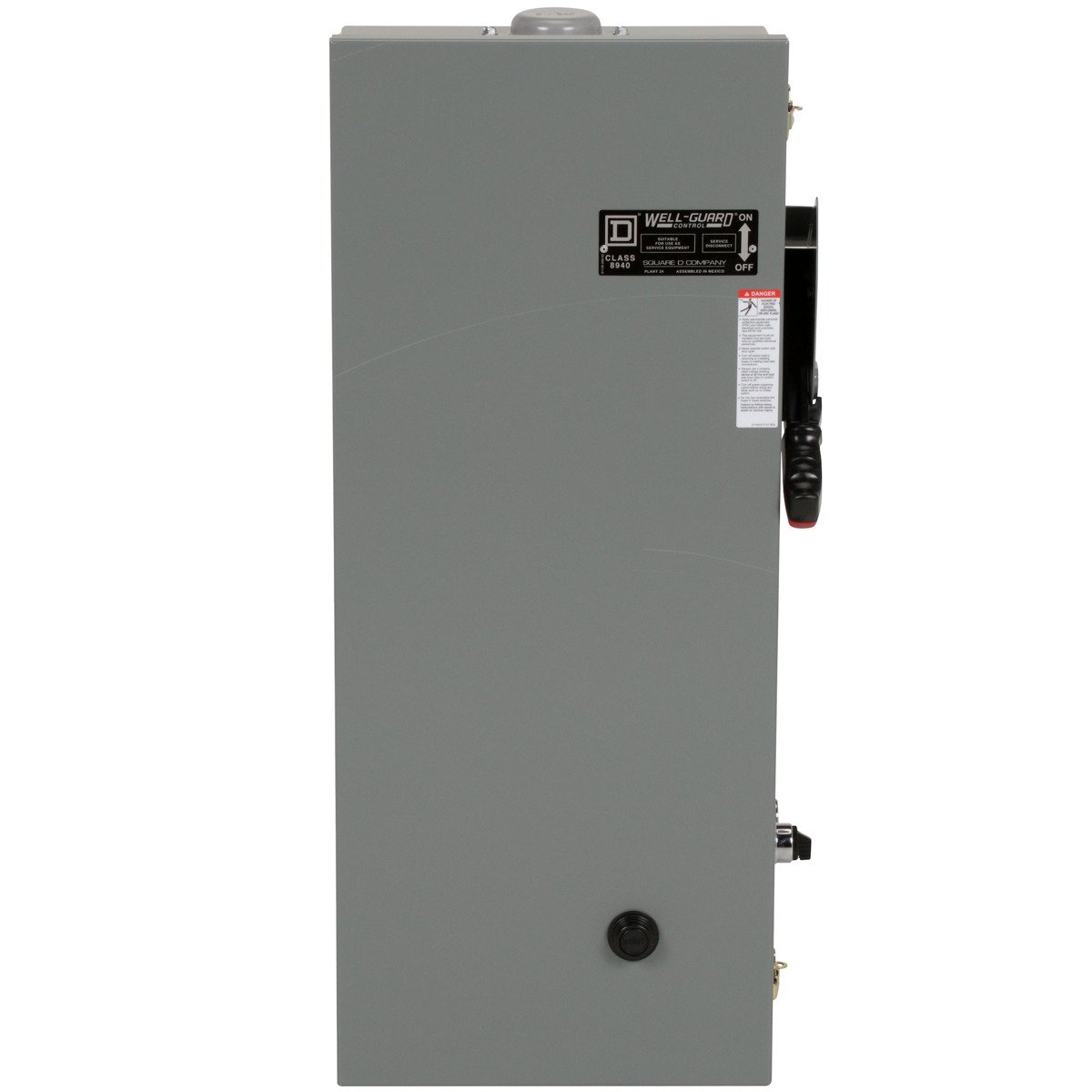

Square D 8940SSC4010 Pump Panel 440/480 VAC 27 Amp 10 Hp

Product Description

Square D 8940SSC4010 is a pump panel designed specifically for pumping applications. It offers ample space to install additional equipment in the field. The panel features a Type S non-reversing magnetic starter and includes a thirty amp fusible disconnect switch for Class H or K fuses. This three-pole NEMA Size 1 starter supports various motor ratings, including three, five, seven point five, and ten horsepower, and can handle a maximum of twenty-seven amperes.

• Features a durable NEMA 3R rainproof enclosure.
• Includes a Motor Logic overload relay with a nine to twenty-seven ampere range.
• UL listed and CSA certified for safety and reliability.

Product Highlights

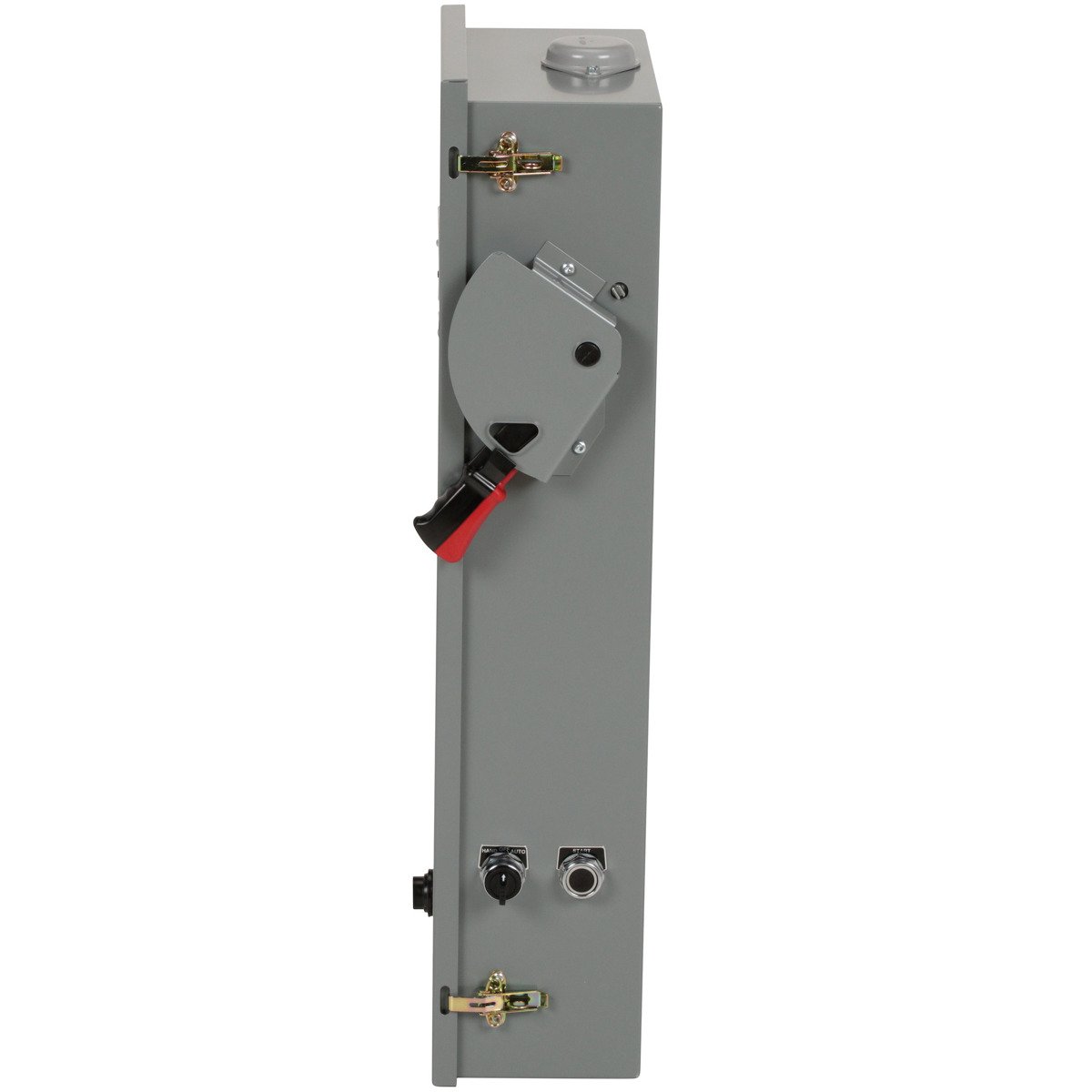

This pump panel is equipped with a START momentary push button and HAND/OFF/AUTO selector switch for operational flexibility. The enclosure dimensions are thirty-nine point zero five inches tall, thirteen point seven three inches wide, and nine point seven inches deep.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 8940SSC4010
• Voltage: 480 VAC
• Amperage: 27 Amp
• NEMA Size: 1
• Enclosure Type: NEMA 3R
• Fuse Type: H or K
• Country of Origin: Mexico
• Warranty Length: 18 months
