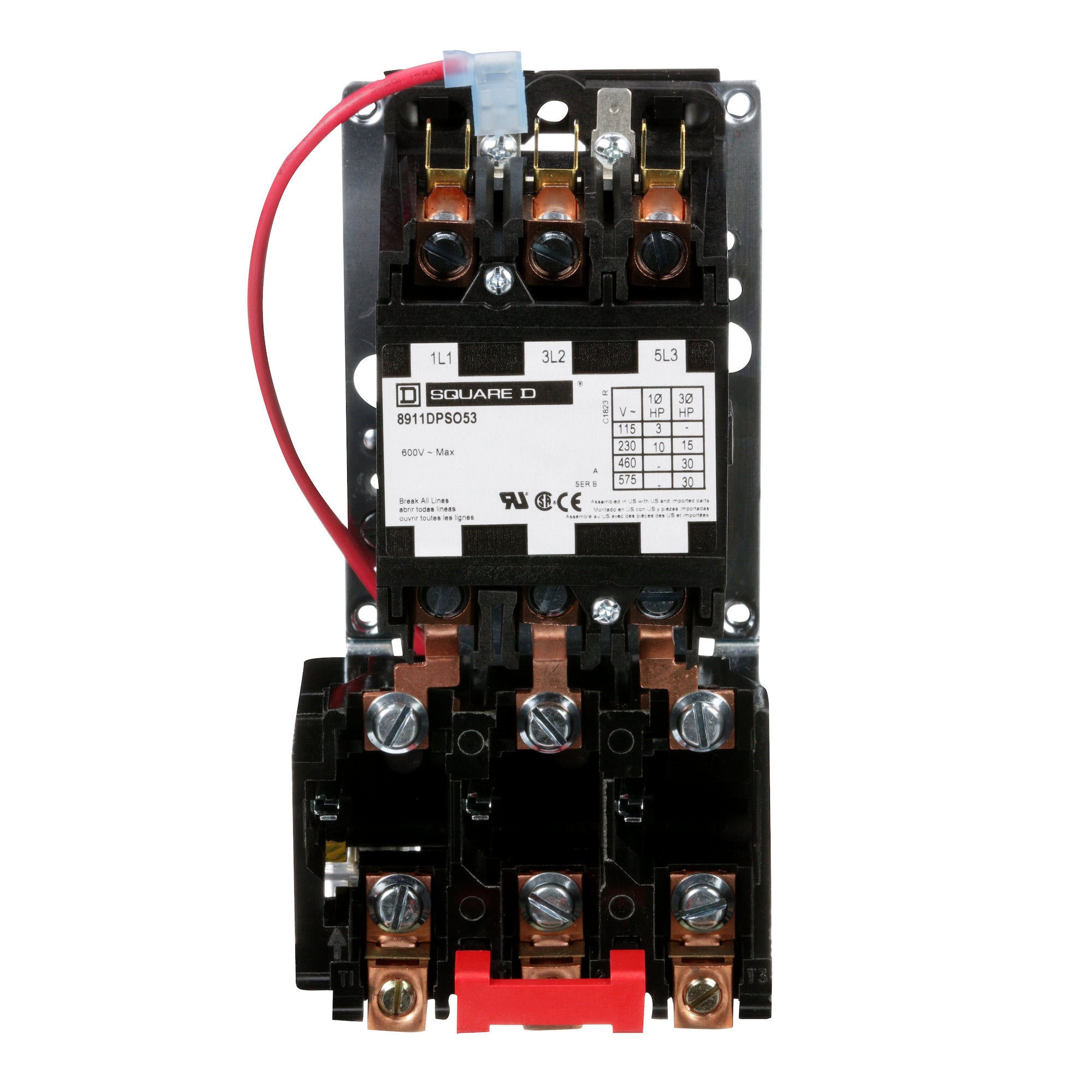

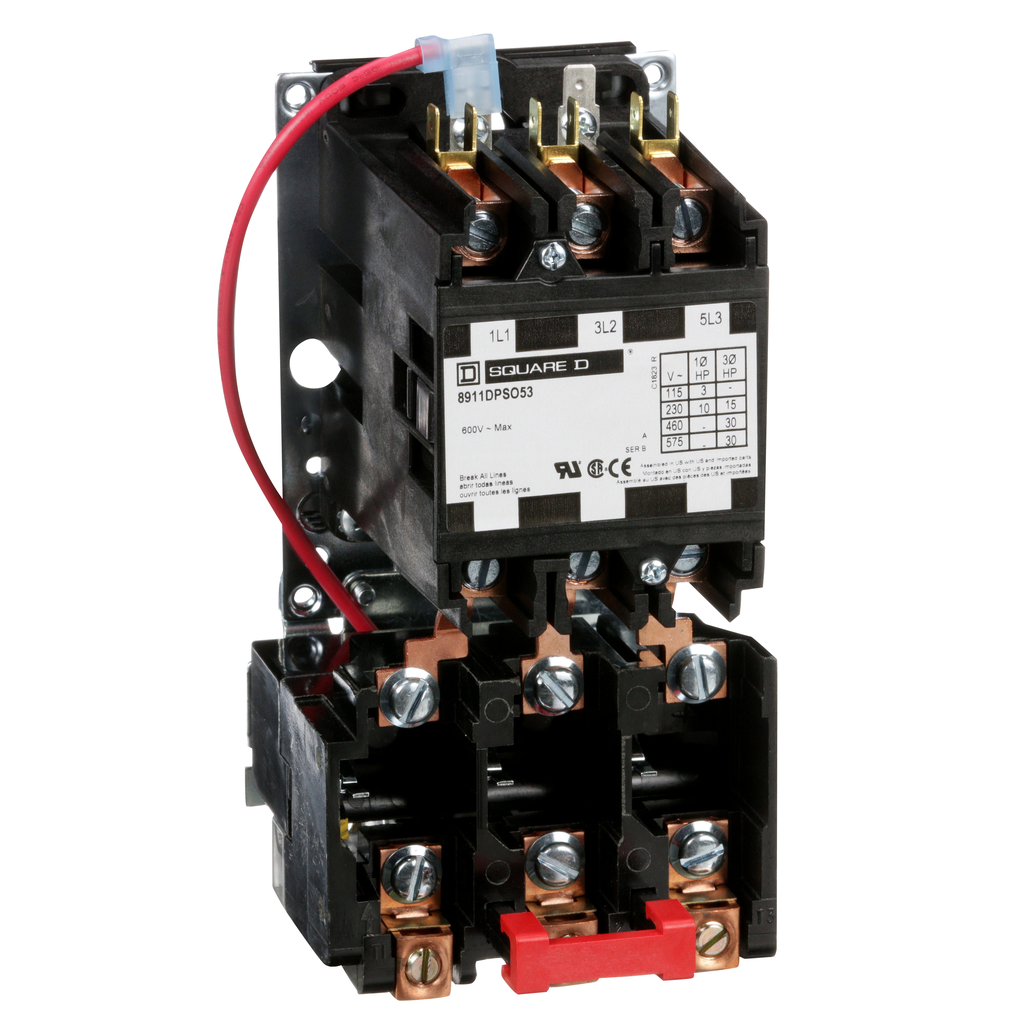

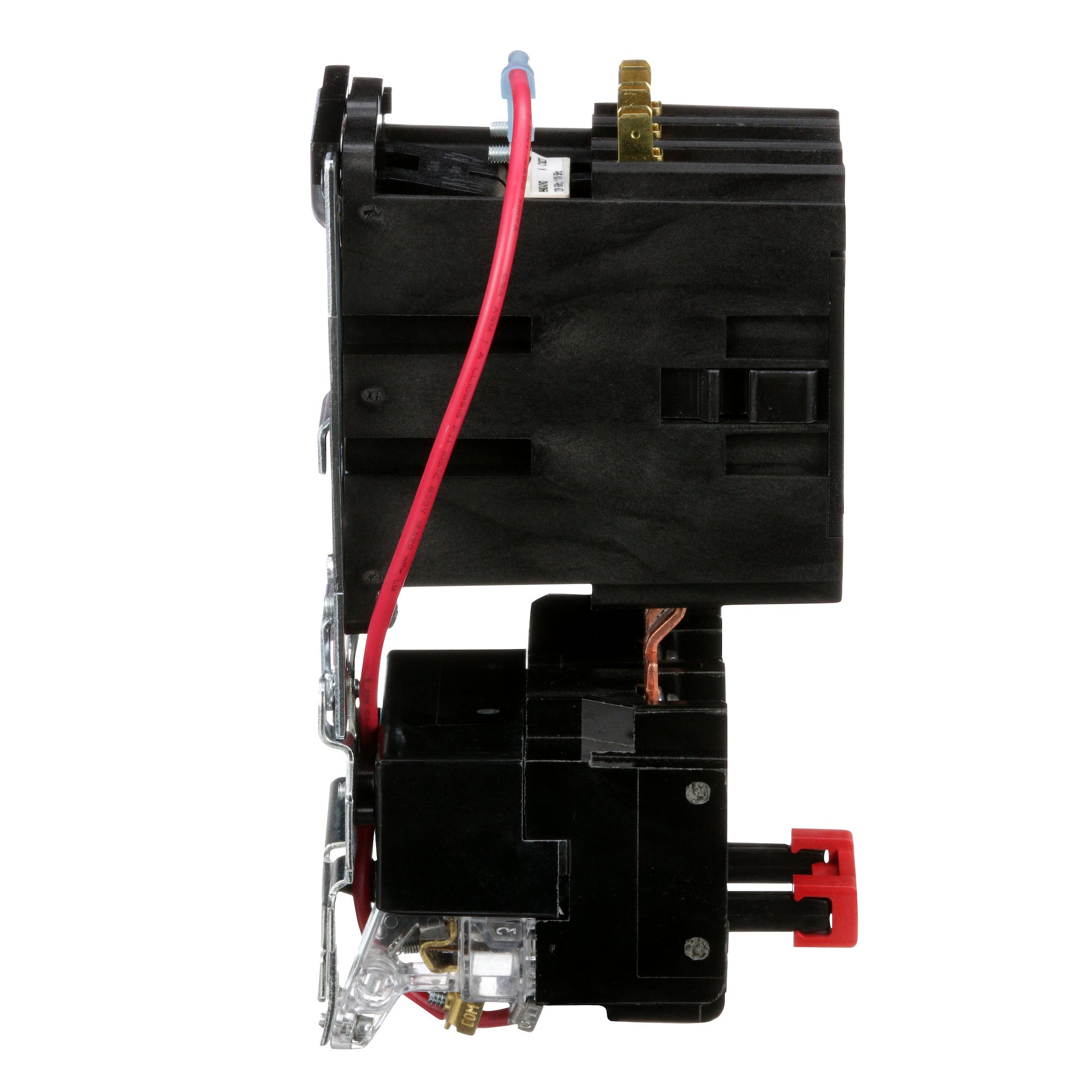

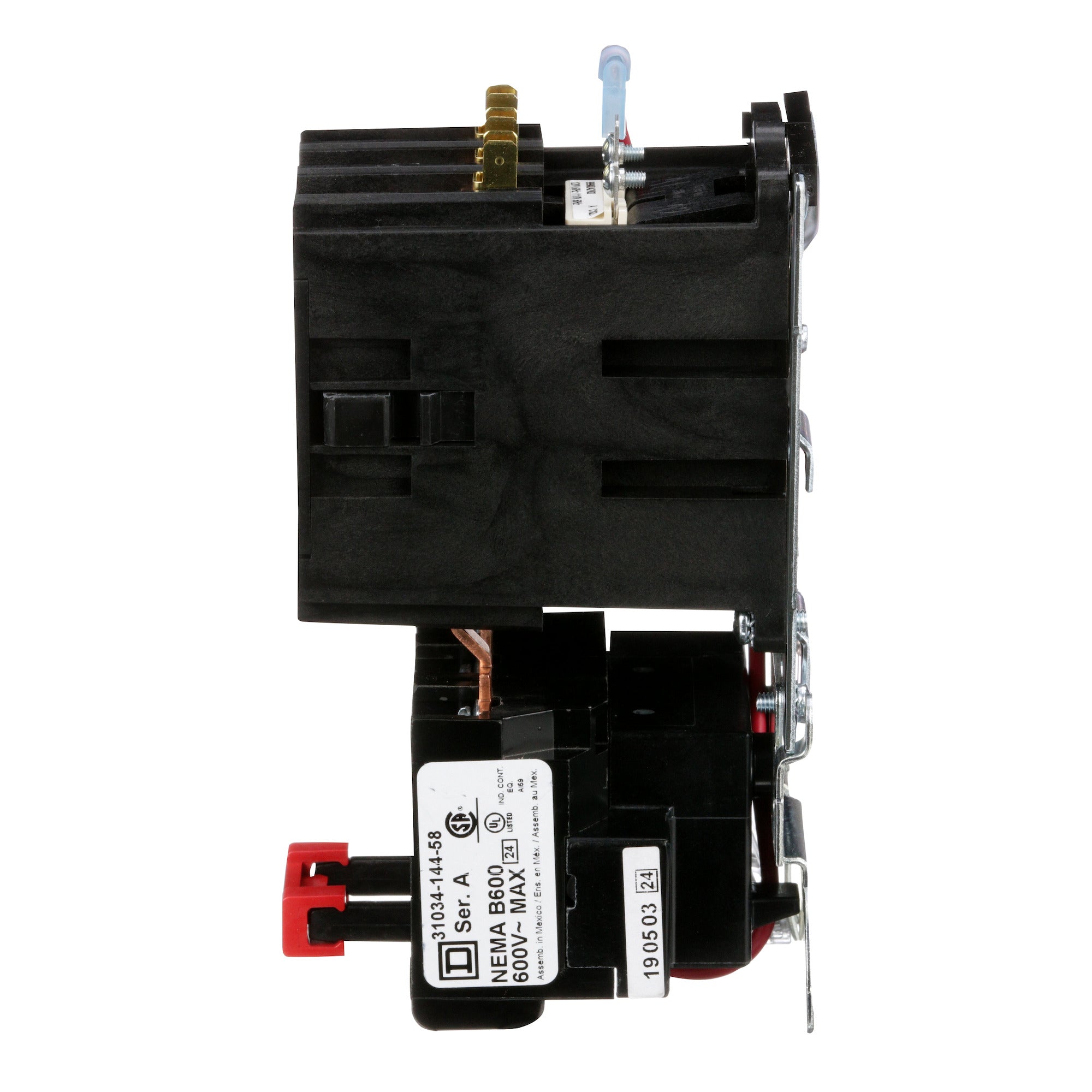

Square D 8911DPSO53V02 110/120 VAC 50 Amp 30 Hp Polyphase 3-Pole Open Type Magnetic Definite Purpose Starter

Product Description

The Square D 8911DPSO53V02 is a magnetic definite purpose starter designed for applications with lower duty cycles. Common uses include air compressors, agricultural equipment, and HVAC systems.

• Full load rating of 50 amperes
• Suitable for 3 HP at 115 VAC and 30 HP at 460 VAC
• Includes replaceable coil with various voltage options

Product Highlights

This starter features a coil rated at 110/120 VAC and 50/60 Hz. It incorporates straight through wiring and utilizes a melting alloy type overload relay with Type B thermal units for overcurrent protection. The design does not include an enclosure, but enclosures are available separately.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 8911DPSO53V02
• Power Supply: 120VAC@60HZ - 110VAC@50HZ
• Voltage: 600 Volt
• Amperage: 50 Amp
• Number of Poles: 3 Pole
• Number of Phases: 3 Phase
• Dimensions: 7.0 inches tall, 3.5 inches wide, 4.0 inches deep
• Country of Origin: China
• Warranty Length: 18 months
• Environmental Conditions: Open
