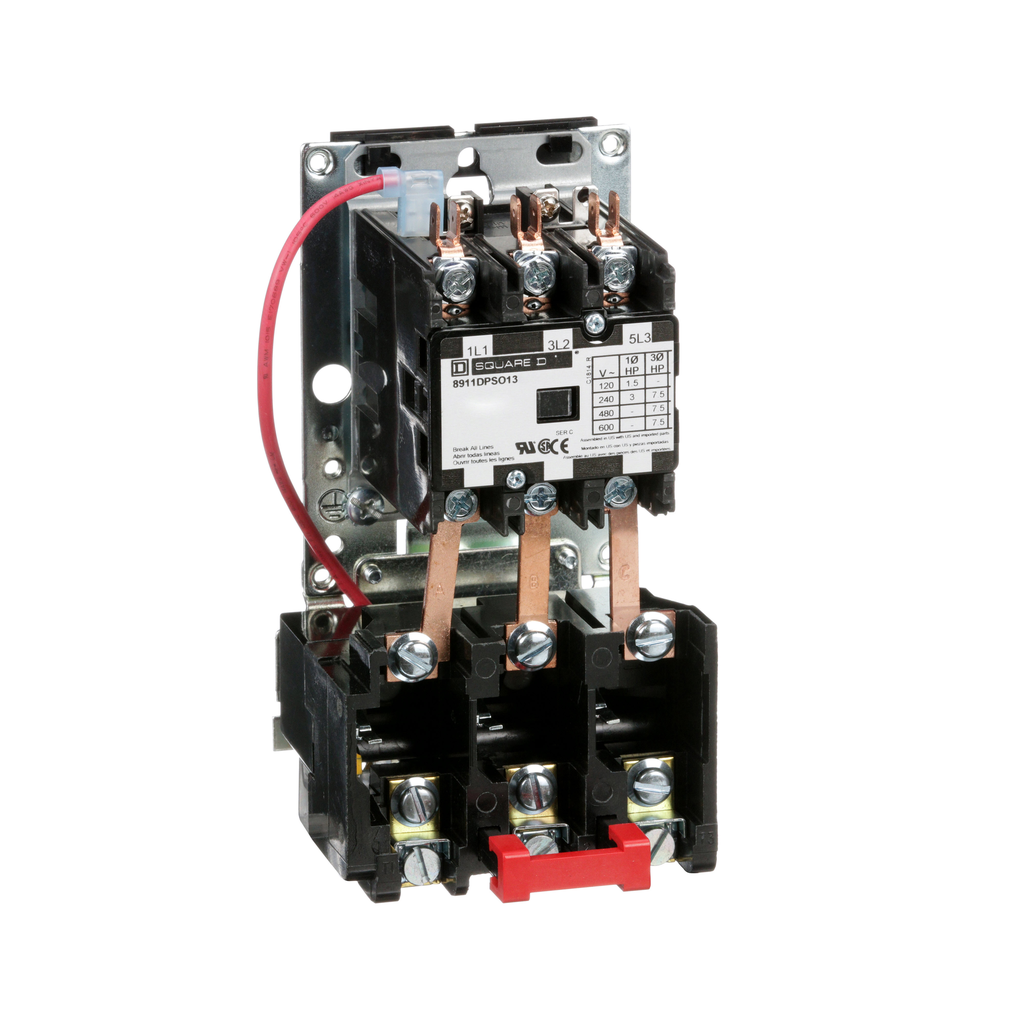

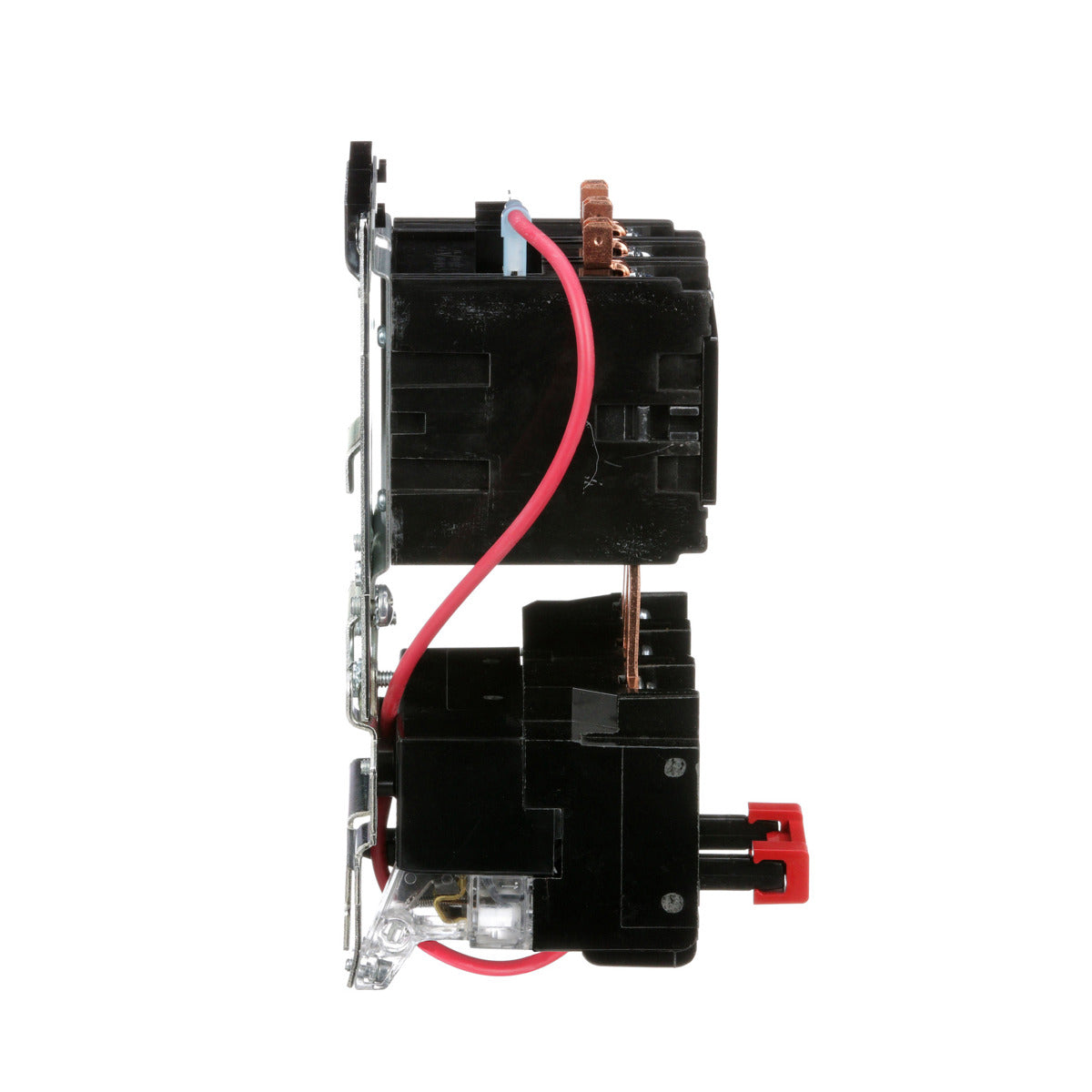

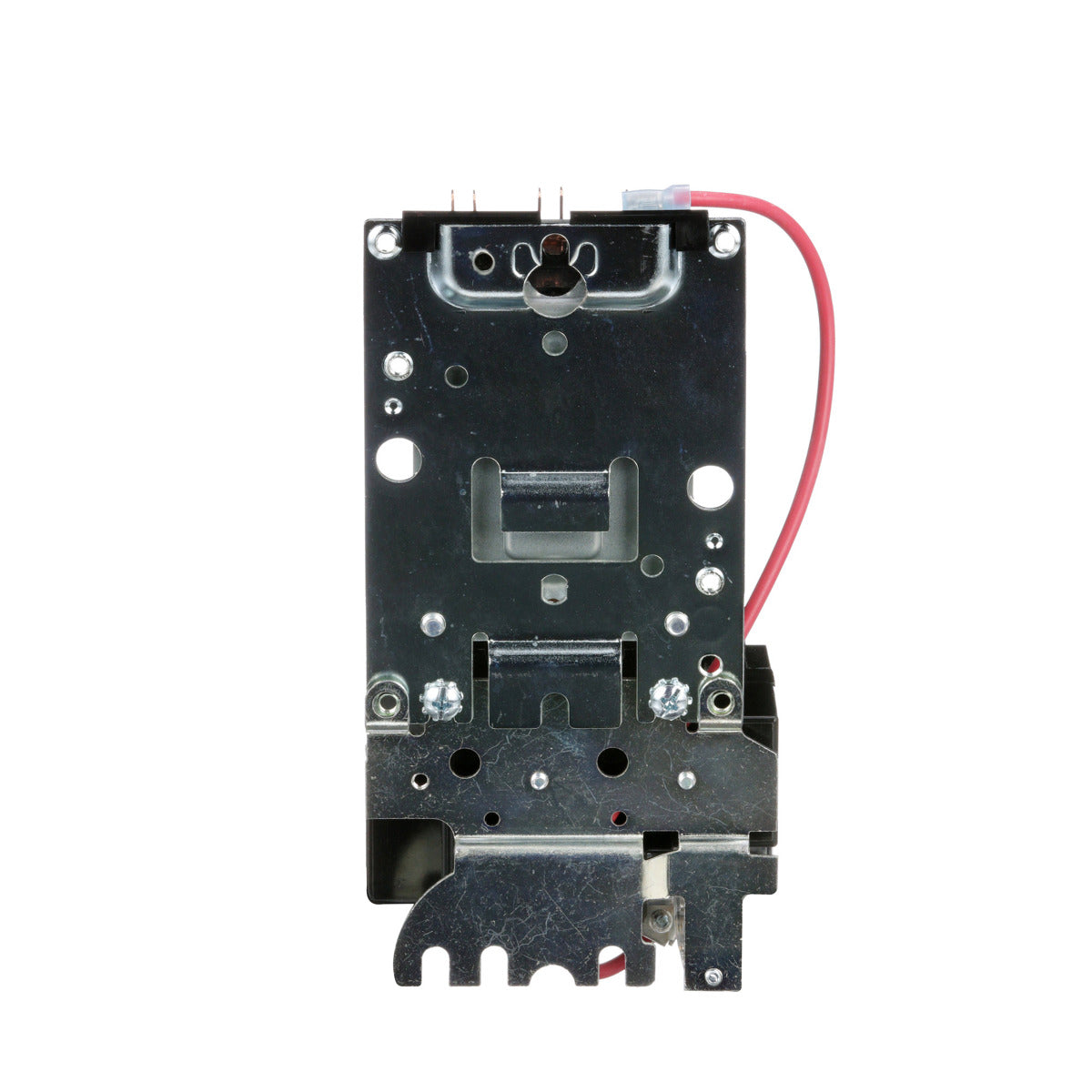

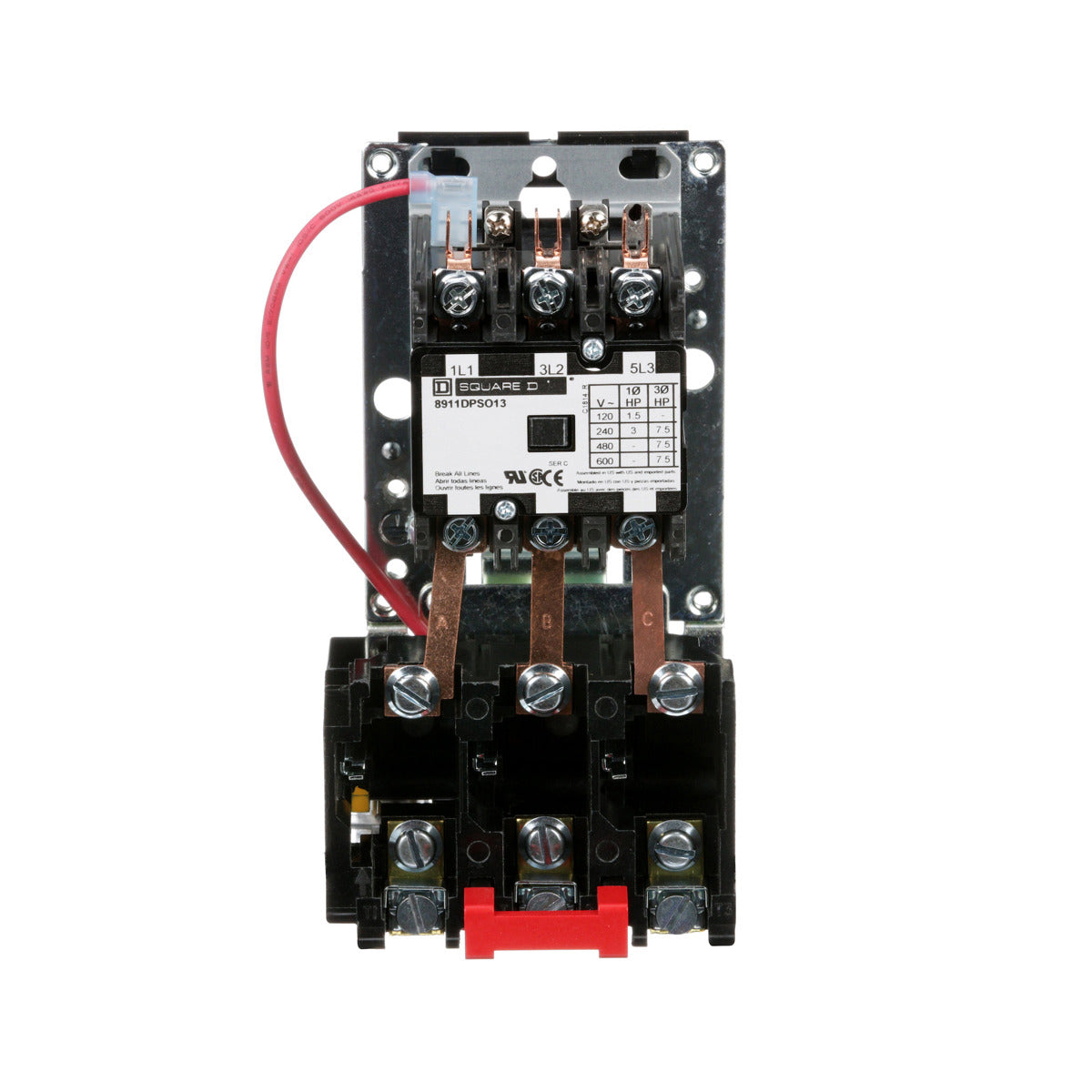

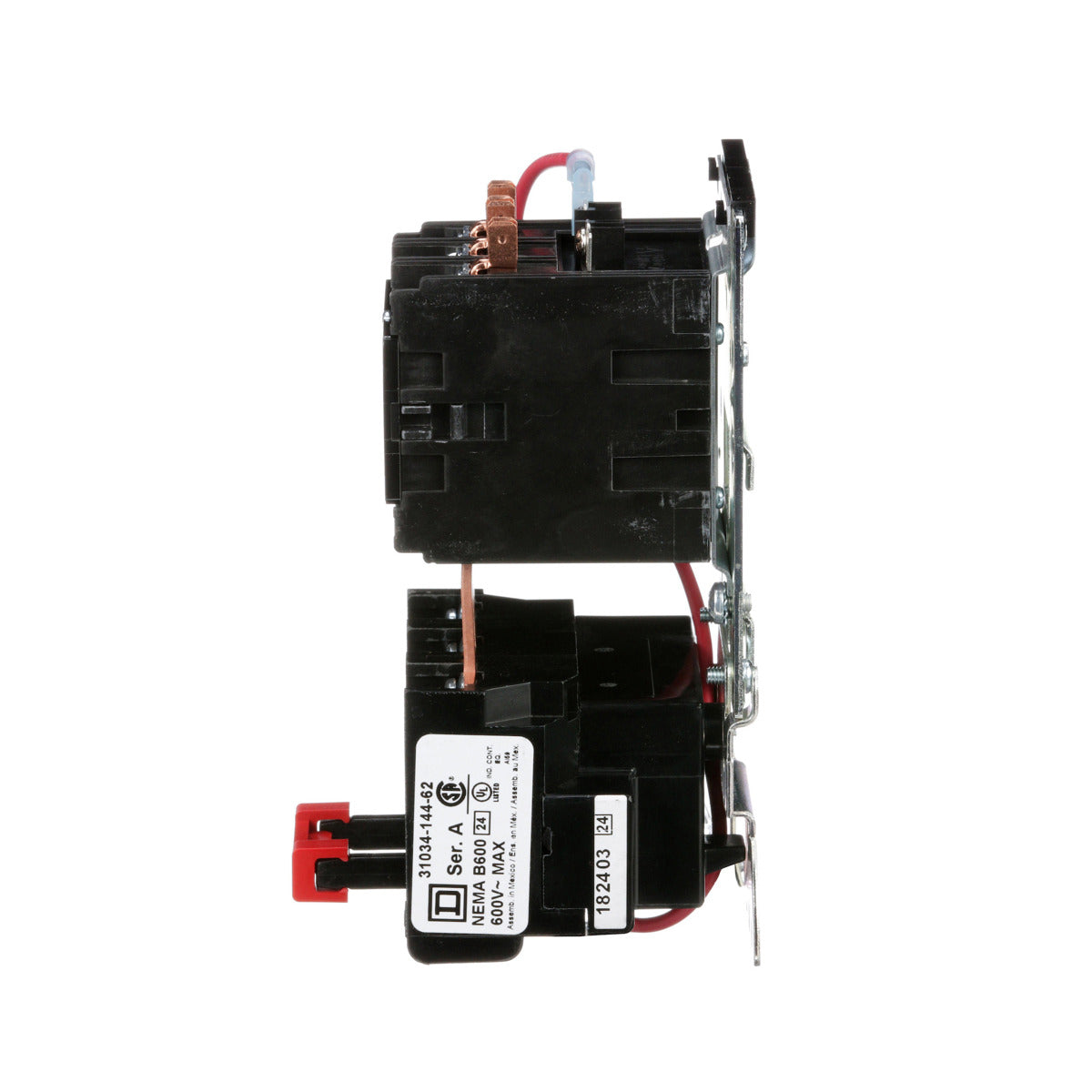

Square D 8911DPSO13V14 24 VAC 20 Amp 7.5 Hp Polyphase 3-Pole Open Type Magnetic Definite Purpose Starter

Product Description

The Square D 8911DPSO13V14 is a magnetic definite purpose starter designed for demanding applications. This starter operates at 24 VAC with a current rating of 20 amps and is suitable for a power rating of up to 7.5 horsepower in polyphase systems. It is a three-pole device, making it ideal for starting and controlling three-phase motors in various industrial environments.

• NEMA starter type S, reversing horizontal, suitable for motor control.
• Designed for reliable performance in open environments.
• Features a thermal melting alloy overload for motor protection.

Product Highlights

Designed for use in motor control systems, this starter enables safe and efficient operation of three-phase motors.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 8911DPSO13V14
• Voltage: 600 Volt
• Amperage: 20 A
• Coil Voltage: 24 VAC@50/60Hz
• Number of Poles: 3 Pole
• Number of Phases: 3 Phase
• Enclosure: Not Rated
• Warranty Length: 18 months
