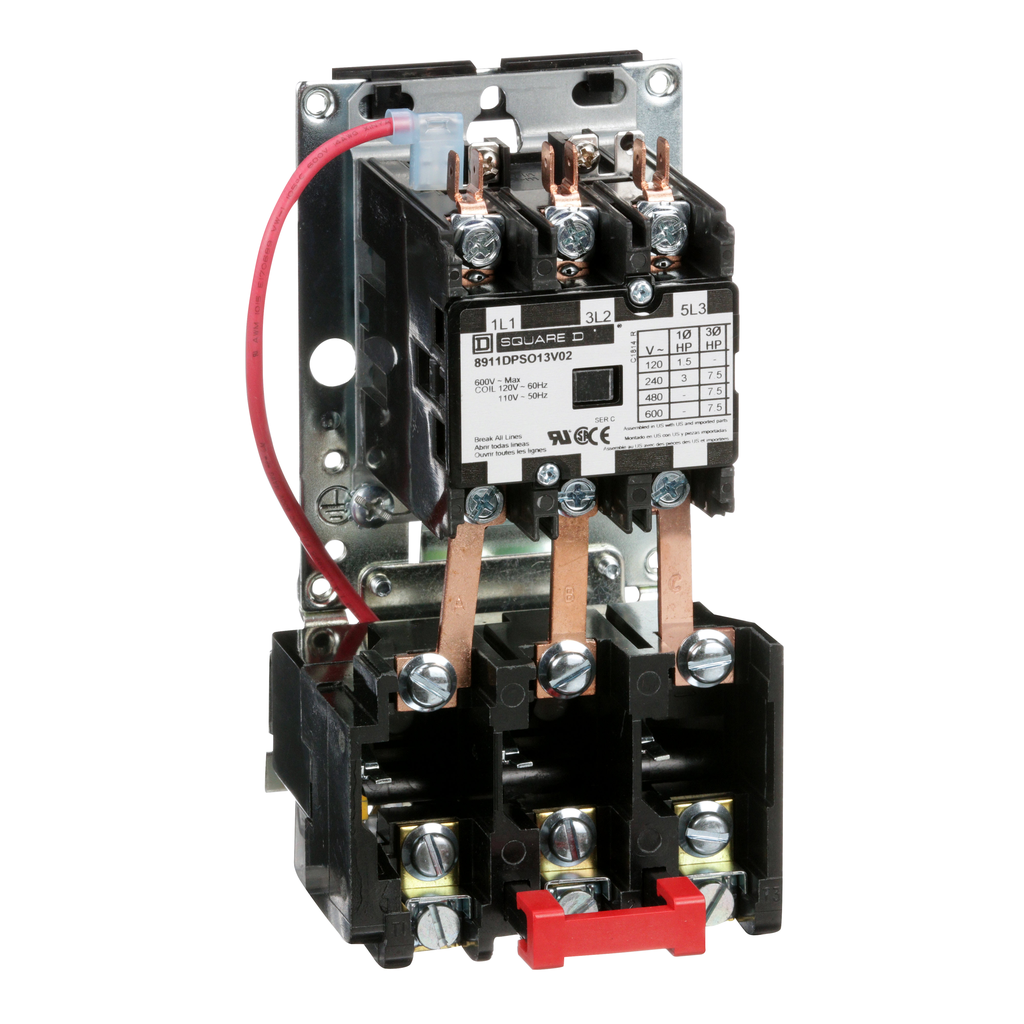

Square D 8911DPSO13V02 110/120 VAC 20 Amp 7.5 Hp Polyphase 3-Pole Open Type Magnetic Definite Purpose Starter

Product Description

The Square D 8911DPSO13V02 Magnetic Motor Starter by Schneider Electric is a reliable solution for low-duty cycle applications. Ideal for use in air compressors, agricultural machinery, pumps, and HVAC systems. The device features a 3-pole configuration designed to handle up to 7.5 horsepower in polyphase circuits and 1.5 to 3 horsepower in single-phase circuits.

• 20 Amp full load rating
• Operates at 110/120 VAC
• Compact and open type design

Product Highlights

This starter offers a straightforward wiring system and incorporates a melting alloy type overload relay. Its construction is built to ensure durability in demanding industrial settings without an enclosure. Auxiliary contacts and enclosures are available separately.

Product Information

Standard Information

• MPN: 8911DPSO13V02
• Brand: Square D
• Country of Origin: China

Technical Specifications

• Catalog Number: 8911DPSO13V02
• Manufacturer: Schneider Electric
• Amperage: 20 Amp
• Voltage: 110/120 VAC
• Number of Poles: 3
• HP at 1 Phase - 115 VAC: 1.5 HP
• HP at 1 Phase - 230 VAC: 3 HP
• HP at Polyphase - 230 VAC, 460 VAC and 575 VAC: 7.5 HP
• Coil Voltage: 120 VAC at 60 Hz, 110 VAC at 50 Hz
• Height: 6.73 inches
• Width: 3.5 inches
• Depth: 4.09 inches
• Enclosure: Not Included
• Warranty Length: 18 months
• UPC: 785901116752
• GTIN: 00785901116752
• Country: China
• RoHS URL: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=561587&lang=en-us
