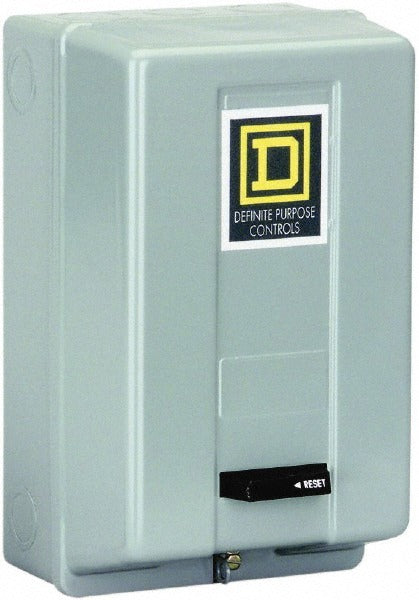

Square D 8911DPSG23V06 Definite Purpose Contactor 3P 25A

Product Description

The SQUARE D 8911DPSG23V06 is a 3-pole definite purpose contactor rated for 25 amps inductive load with a coil voltage of 440 VAC at 50 Hz and 480 VAC at 60 Hz. It ships in an enclosed NEMA 1 enclosure, making it suitable for protected indoor installations. This contactor is designed for motor switching and load control applications in commercial and light industrial electrical systems. Licensed electricians and industrial maintenance technicians install this device as part of motor starter assemblies, HVAC equipment controls, and similar definite purpose switching circuits. The unit weighs 5.8 pounds.

This contactor is well suited for single-phase and three-phase motor applications across a range of horsepower ratings. Horsepower ratings include 2 HP at 115 VAC single-phase, 5 HP and 10 HP at 230 VAC, 15 HP at 460 VAC, and 20 HP at 575 VAC three-phase. These ratings cover a broad span of commercial HVAC compressors, fan motors, pump motors, and similar definite purpose loads found in light commercial and industrial environments. The NEMA 1 enclosed design suits dry, indoor electrical panels and motor control centers.

Key Features

• 3-pole configuration for three-phase and single-phase motor switching
• 25 amp inductive load rating supports a wide range of motor sizes
• Dual-rated coil: 440 VAC at 50 Hz and 480 VAC at 60 Hz
• NEMA 1 enclosed enclosure for protected indoor use
• Horsepower ratings from 2 HP at 115 VAC up to 20 HP at 575 VAC
• Meets NEMA 1 standards for enclosure integrity

Compatibility

Designed as an OEM-style definite purpose contactor replacement for 3-pole, 25 amp, 480V inductive load motor control applications in commercial HVAC, pump, and fan motor circuits requiring a NEMA 1 enclosed contactor.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out the circuit before removing or installing the contactor. Verify coil voltage matches the control circuit supply before energizing. Do not exceed the published inductive load amperage or horsepower ratings for the intended application.
