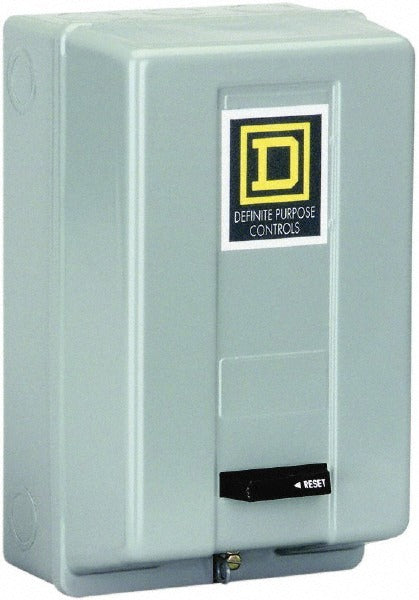

Square D 8911DPSG13V09 Definite Purpose Contactor 3P 20A

Product Description

The SQUARE D 8911DPSG13V09 is a 3-pole definite purpose contactor rated for 20 amps inductive load, designed for use in motor control and HVAC switching applications. The coil operates at 208 to 240 volts AC at 60 Hz and 220 volts AC at 50 Hz, making it suitable for both domestic and international equipment. It ships in a NEMA 1 enclosed housing, measuring 11.2 inches in length, 6.9 inches in width, and 6.4 inches in height, and weighs 5.69 pounds. Licensed electricians and HVAC technicians are the primary installers for this type of switching device.

This contactor is rated for single-phase and three-phase motor loads across a range of voltages. Horsepower ratings include 1.5 HP at 115 volts AC, 3 HP at 230 volts AC, 7.5 HP at 230 volts AC, 7.5 HP at 460 volts AC, and 7.5 HP at 575 volts AC. These ratings make it appropriate for compressor contactors, fan motor circuits, pump controls, and similar definite purpose switching loads found in commercial and residential HVAC, refrigeration, and light industrial systems.

Key Features

• 3-pole configuration handles single-phase and three-phase motor loads
• 20 amp inductive load rating suited for compressors and fan motors
• 208-240V coil at 60 Hz and 220V coil at 50 Hz for broad voltage compatibility
• NEMA 1 enclosed housing provides basic protection in indoor electrical panel environments
• Horsepower ratings up to 7.5 HP across multiple voltage levels

Compatibility

Rated for use with single-phase and three-phase motor loads including 1.5 HP at 115 volts AC, 3 HP at 230 volts AC, 7.5 HP at 230 volts AC, 7.5 HP at 460 volts AC, and 7.5 HP at 575 volts AC. Designed as an OEM-style definite purpose replacement contactor for HVAC, refrigeration, and light industrial motor control applications.

Installation Notes

Installation should be performed by a licensed electrician or qualified HVAC technician in accordance with the National Electrical Code (NEC). Disconnect and lock out all power to the circuit before removing or installing the contactor. Verify coil voltage and pole configuration match the existing circuit before wiring. Mount the contactor securely in a panel or enclosure rated for the environment and load.
