Square D 8911DPSG13V06 <1000 VAC Motor Control Starter

Product Description

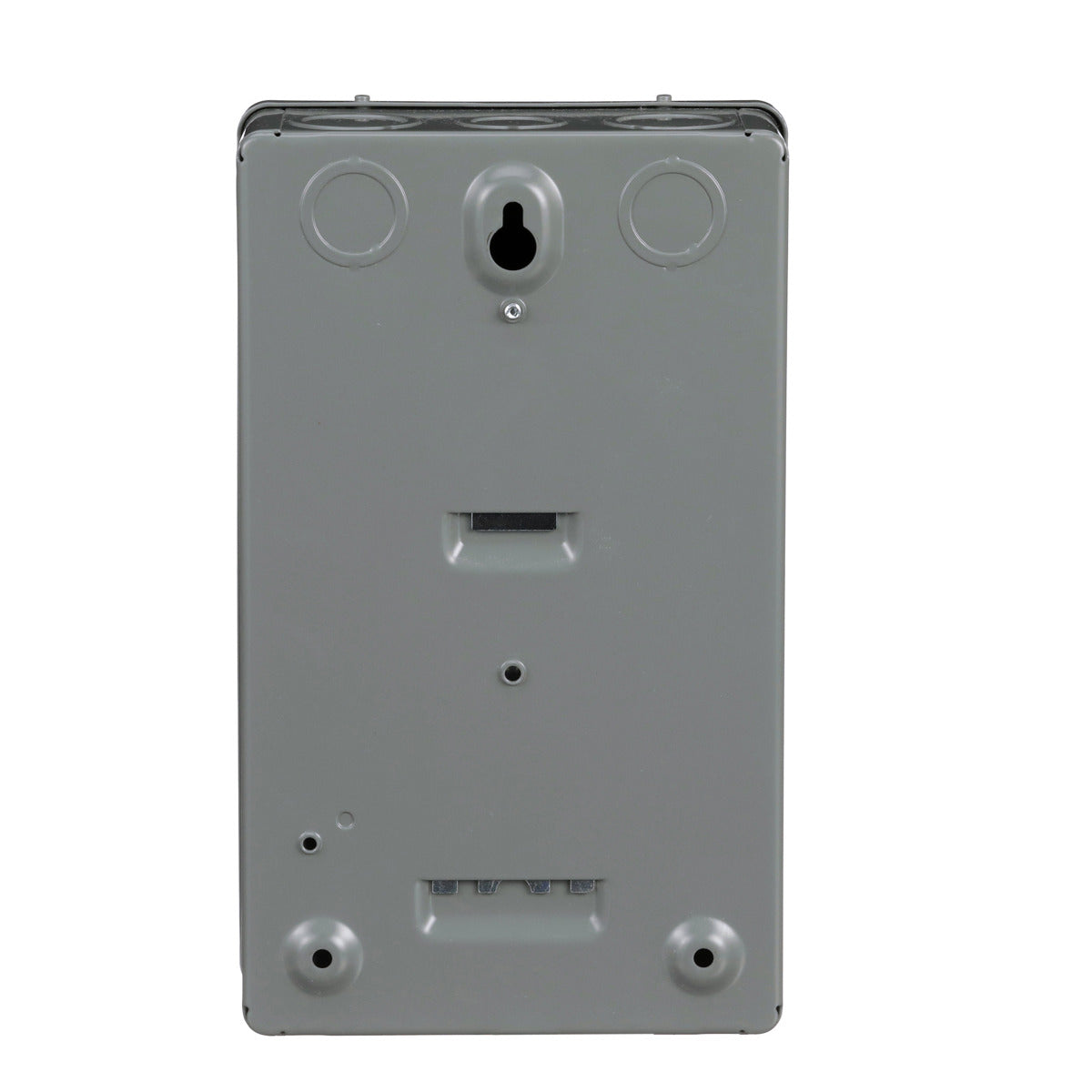

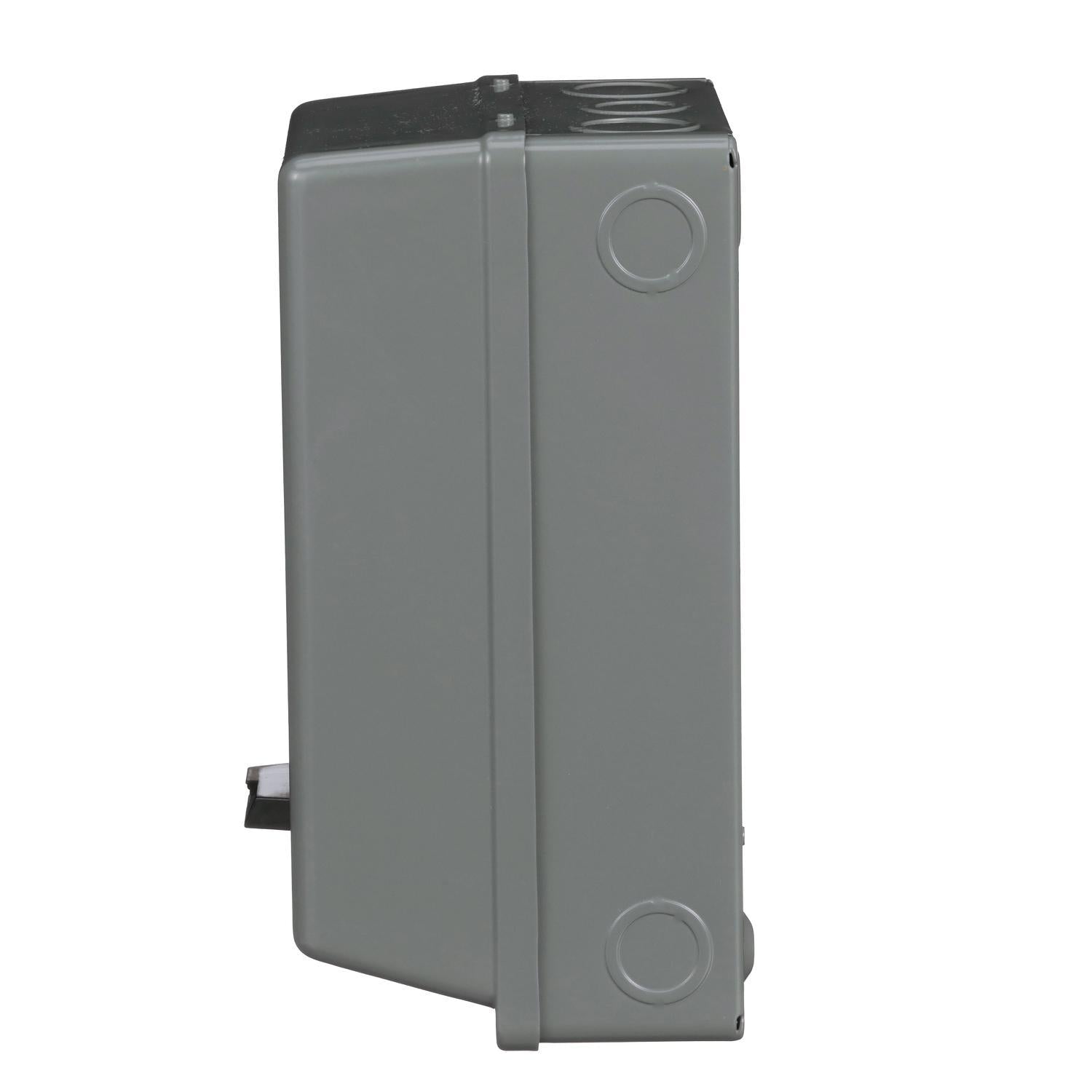

The Square D 8911DPSG13V06 definite purpose starter is designed for applications with relatively low duty cycles, such as air compressors, agricultural equipment, pumps, and HVAC equipment. This three pole starter has a full load rating of 20 amperes and straight through wiring. It features a melting alloy type overload relay and a painted sheet steel NEMA 1 general purpose enclosure. It is a UL component recognized.

• Inexpensive starters for applications with relatively low duty cycles
• Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment
• Three pole definite purpose starter

Product Highlights

The Square D 8911DPSG13V06 is ideal for use in air compressors, agricultural equipment, pumps, and HVAC equipment.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 8911DPSG13V06
• Country of Origin: China

Technical Specifications

• Type: DEFINITE PURPOSE STARTER
• Brand: Square D
• Range: DPS
• Voltage: 600 Volt
• Amperage: 20 Amp
• Enclosure: 1
• NEMA Size: 1
• Sub Brand: DPS
• Reset Type: THERMAL - MELTING ALLOY
• Power Supply: 480VAC@60HZ - 440VAC@50HZ
• Number of Poles: 3 Pole
• Enclosure Rating: 1
• Number of Phases: 3 Phase
• Country of Origin: China
• Enclosure Material: Steel
• Line Rated Current: 20 A
• Environmental Conditions: GENERAL PURPOSE (INDOOR)
• Manufacturer: Schneider Electric
• Made in USA: Yes
• Phase: 3
• MPN: 8911DPSG13V06
• Power Rating/Voltage: 1.5 HP at 115 VAC 1-Phase, 3 HP at 230 VAC 1-Phase, 7.5 HP at 230/460/575 VAC 3-Phase
• Coil Voltage: 440/480, 440/480 V AC, 440/480 VAC
• Control Type: Separate
• Motor FLA: 20 Ampere
• Enclosure Type: NEMA 1
• Overloads: Melting Alloy
• Construction: Standard NEMA
• Locked Rotor Current Rating: 80 Ampere at 575 VAC, 100 Ampere at 460 VAC, 120 Ampere at 230 VAC
• Application: HVAC, Food and Beverage
• Material: Copper
• Wattage: 1.4 KW
• Phase Type: Three Phase
• Item model number: 8911DPSG13V06
• Part Number #: 8911DPSG13V06
• SKU #: 2171048
• Motor Power: 1-1/2 hp at 115 VAC, 3 hp at 230 VAC, 7-1/2 hp at 230/460/575 VAC
• Series: 8911
• UNSPSC: 39121521
• Poles: 3
• IP/NEMA Rating: NEMA 1
• Volts AC: 600
• Volts AC Control: 480
• Standards: California Proposition 65
