Product Description

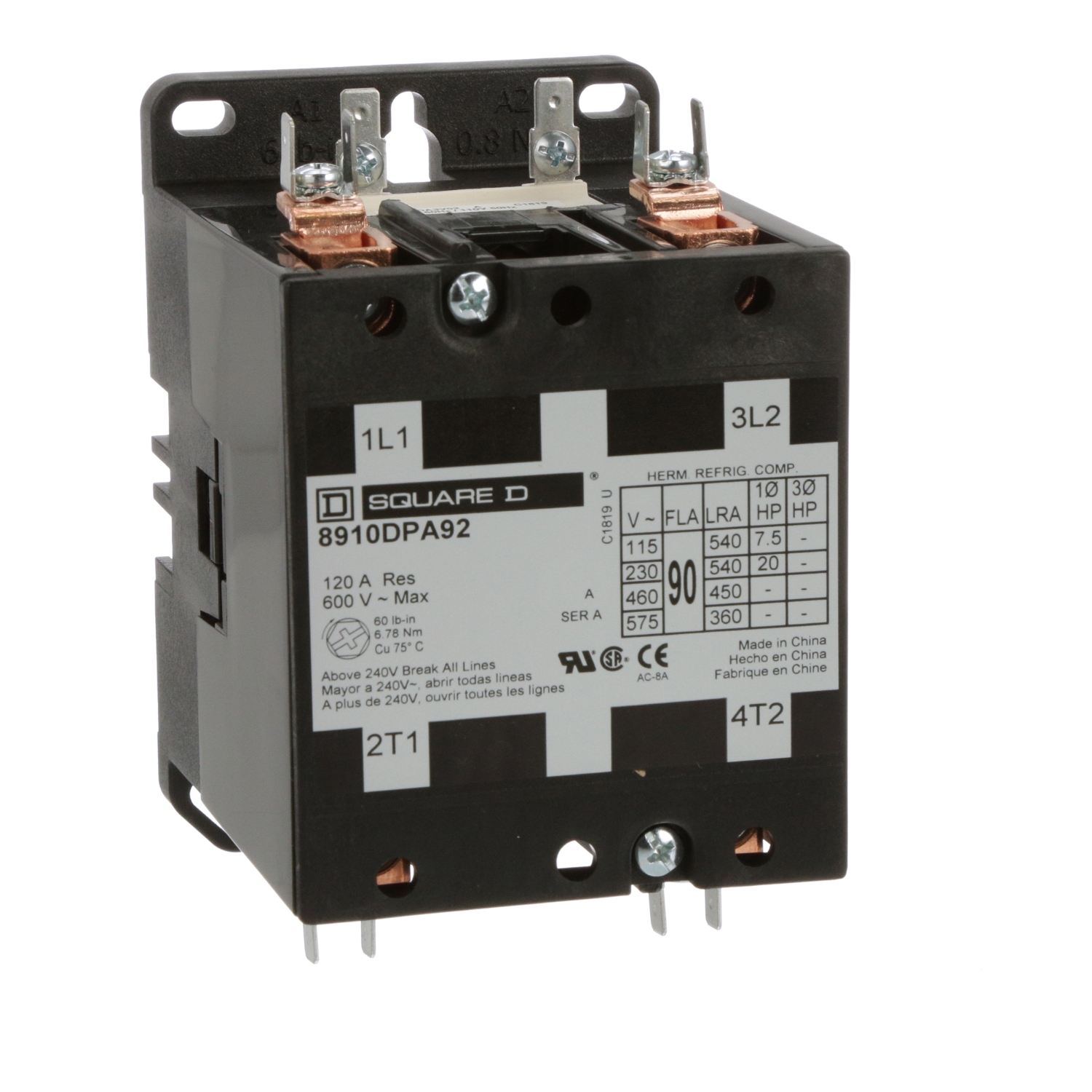

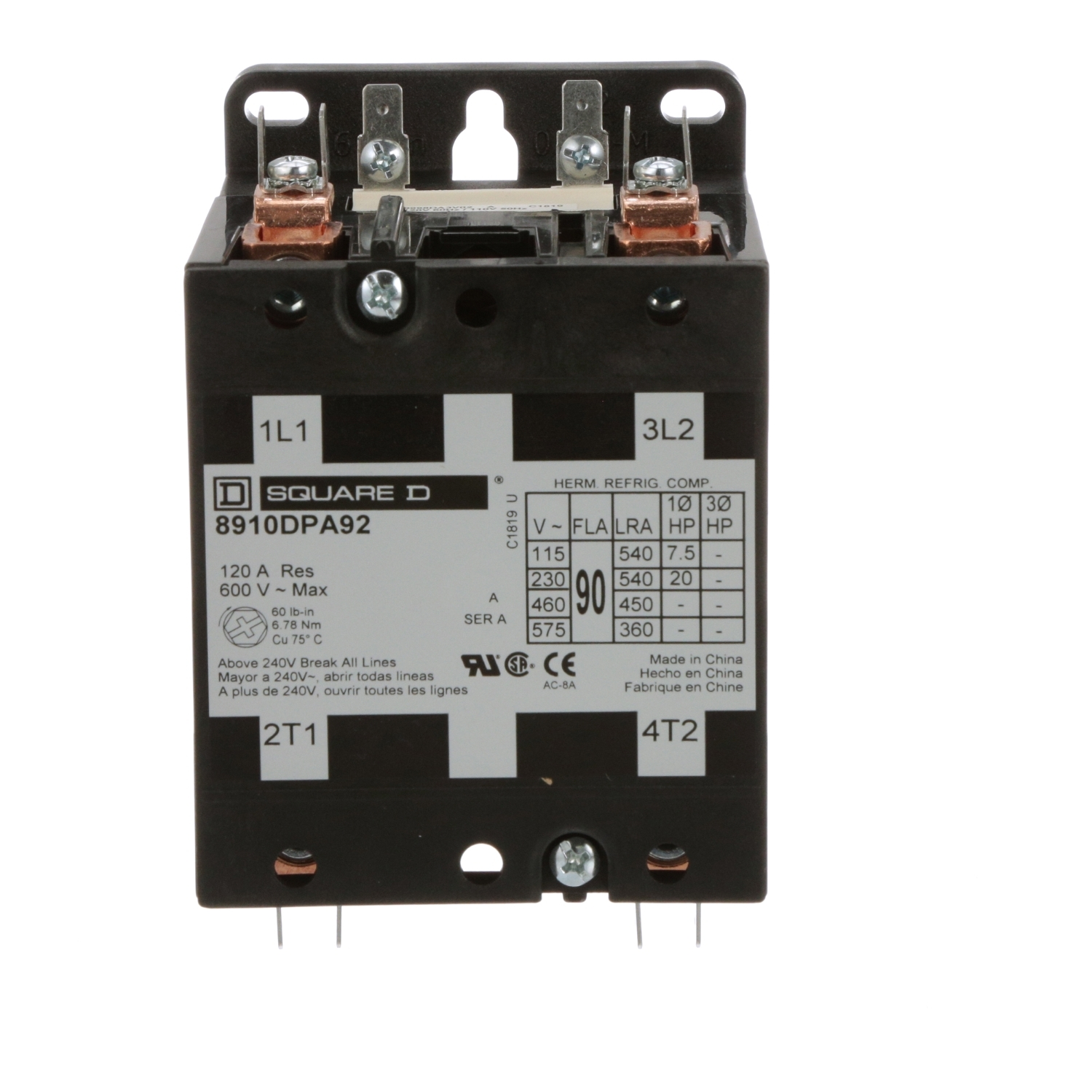

The Square D 8910DPA92V02 definite purpose magnetic contactors are designed for heating, air conditioning, and refrigeration applications. This two-pole contactor has a full load rating of 90 Amp and a resistive rating of 120 Amp. It features straight-through wiring and a 110/120 VAC 50/60 Hz coil. Ideal for data processing and food service equipment.
- Designed for heating, air conditioning and refrigeration applications
- Current ratings up to 120 amperes resistive and 50 HP at 600 VAC
- Straight through wiring
Product Highlights
This definite purpose contactor is UL component recognized and CSA certified. It has quick connect terminals and box lugs.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: 8910DPA92V02
-
Country of Origin: China
Technical Specifications
-
Type: Definite Purpose Magnetic Contactors
-
Brand: Square D
-
Voltage: 600 Volt
-
Amperage: 90 Amp
-
Sub Brand: DPA
-
Size: 2P
-
Applications: IDEAL FOR HEATING, AIR CONDITIONING, REFRIGERATION, DATA PROCESSING AND FOOD SERVICE EQUIPMENT.
-
Coil Voltage: 120 V AC 60 HZ-110 V AC 50 HZ
-
TC Connection: Quick connect terminals;Box lugs
-
Certifications: CSA,UL Recognized
-
Contact Rating: 90 A
-
Number of Poles: 2
-
Number of Phases: 1 Phase
-
Line Rated Current: 90 A
-
Contact Configuration: 2 NO
-
Manufacturer: Schneider Electric
-
Country of Origin: China
-
Made in USA: No
-
Power Rating/Voltage: 7-1/2 HP at 115 VAC 1 Phase, 20 HP at 230 VAC 1 Phase, 30 HP at 230 VAC 3 Phase, 50 HP at 460/575 VAC 3 Phase
-
Resistive Ampere: 120 Ampere
-
Auxiliary Contact: 2NO
-
Enclosure: Open
-
Construction: Standard NEMA
-
Approval: UL, CSA, CE
-
Application: HVAC, Food and Beverage, Data Center
-
Locked Rotor Rating: 540 Ampere at 230 VAC, 450 Ampere at 460 VAC, 360 Ampere at 575 VAC
-
Range Of Product: DPA
-
Product Or Component Type: Definite Purpose Contactor
-
Pole Contact Composition: 2 NO
-
Poles Description: 2P
-
[Uc] Control Circuit Voltage: 120 V AC 60 Hz || 110 V AC 50 Hz
-
Locked Rotor Rated Current: 540 A 277 V AC || 450 A 460 V AC || 360 A 575 V AC
-
Maximum Horse Power Rating: 7.5-7.5 hp 115 V AC, 1 phase || 20-20 hp 230 V AC, 1 phase
-
Phase: 1 phase
-
Electrical Connection: quick connect terminals || box lugs
-
[Ue] Rated Operational Voltage: 600 V AC
-
Hz: 50/60
-
Depth: 4.37 in
-
Width: 3.39 in
-
Action: Non-Reversing
-
Height: 5.2 in
-
Series: Standard
-
Includes: Quick Connect Terminal
-
Reversing: No
-
Standards: CE, CSA, UL
-
Coil Volts: 120V AC
-
Product Type: Definite Purpose Magnetic Contactor
-
Enclosure Type: Open
-
HP @ 1 Phase - 120V: 7 1/2 hp
-
HP @ 1 Phase - 230V: 20
-
HP @ 1 Phase - 240V: 20 hp
-
Enclosure NEMA Rating: No Enclosure
-
Full Load Amps-Inductive: 90 A
-
Full Load Amps-Resistive: 120 A
-
UNSPSC Code: 39120000
-
Contact Current Rating: 90 A
-
Contact Form: DPST-NO
-
Control Voltage: 120 V
-
Horsepower Rating: 20 hp
-
Maximum Operating Temperature: 65 °C
-
Minimum Operating Temperature: 0 °C
-
Mounting Type: Panel Mount
-
Temperature Operating Range: 0 to 65 C
-
Terminal Type: Quick Connect
-
Termination: Quick Connect
-
Voltage Rating: 600 V
-
Model: 8910DPA92V02
-
ECCN: EAR99
-
UNSPSC: 39121529
-
Rated Current: 90A
-
No. of Poles: 2
