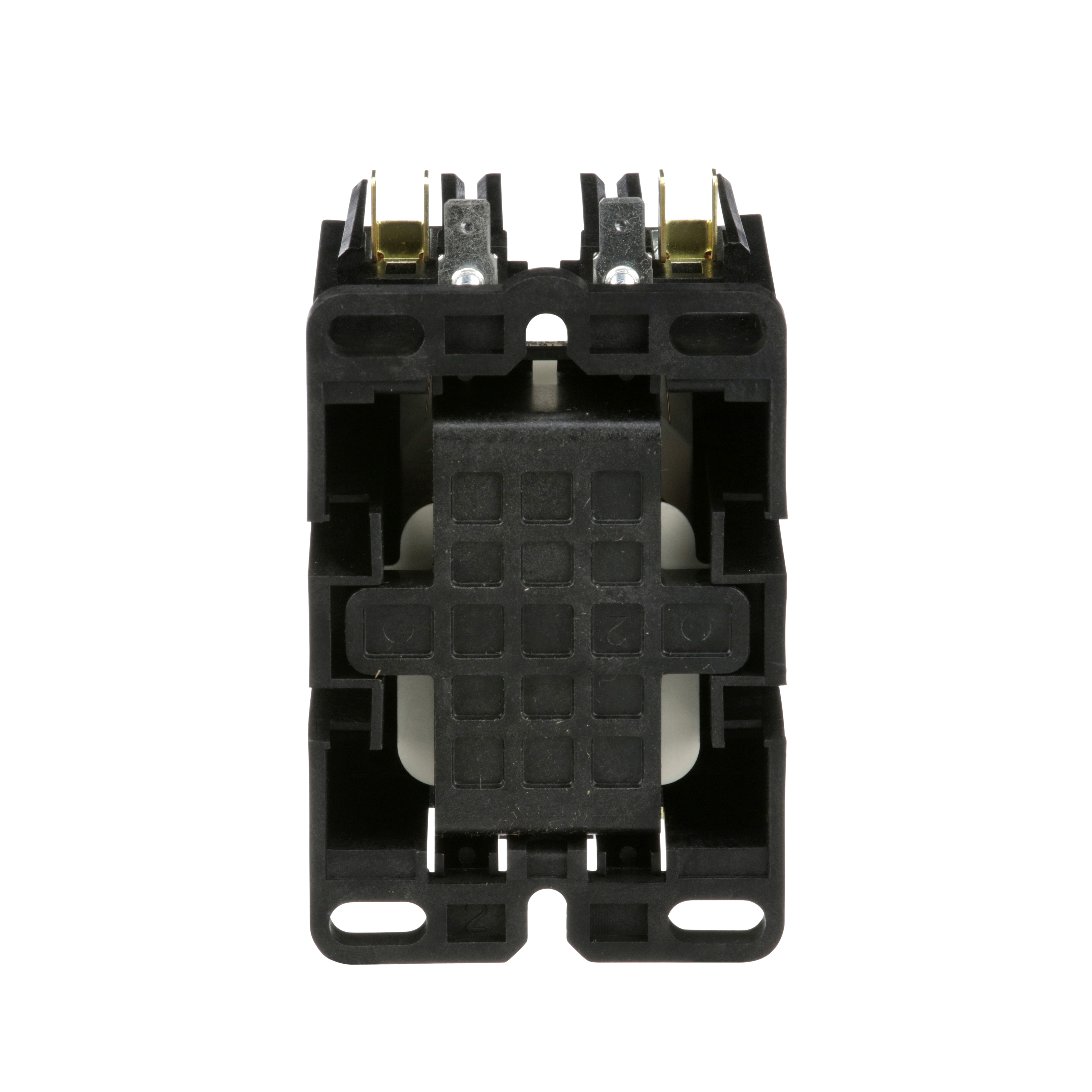

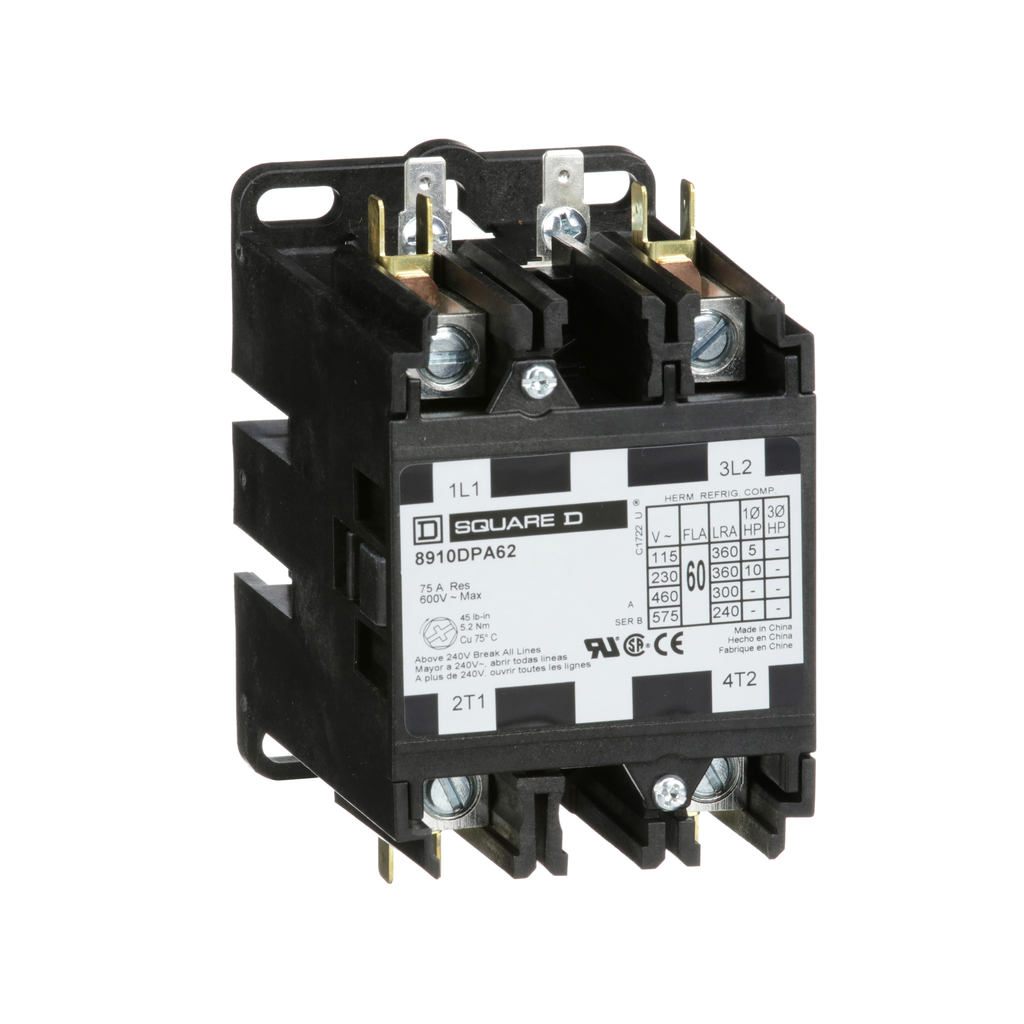

Square D 8910DPA62V02 Non-Reversing Contactor 110/120 VAC 60 Amp 2-Pole

Product Description

Square D offers the 8910DPA62V02, a non-reversing definite purpose contactor designed for HVAC and refrigeration applications. This contactor can handle a voltage of 110/120 VAC and has a full load rating of sixty amperes. It is rated for up to fifty horsepower at six hundred VAC. The device is built to manage current loads with reliability and has quick connect terminals for easy installation.

• Designed for heating and cooling applications.
• Specifications include a two-pole configuration with a contact rating of sixty amps.
• UL recognized and CSA certified for safety and reliability.

Product Highlights

Ideal for heating, air conditioning, refrigeration, and food service equipment. The contactor features a robust design and various coil voltage options.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Coil Voltage: 120 V AC 60 Hz, 110 V AC 50 Hz
• Number of Poles: 2 Pole
• Amperage: 60 Amp
• Rated Operational Voltage: 600 V AC
• Applications: Ideal for heating, air conditioning, refrigeration, data processing, and food service equipment.
• Contact Configuration: 2 NO
• Certifications: CSA, UL Recognized
• Country of Origin: China
