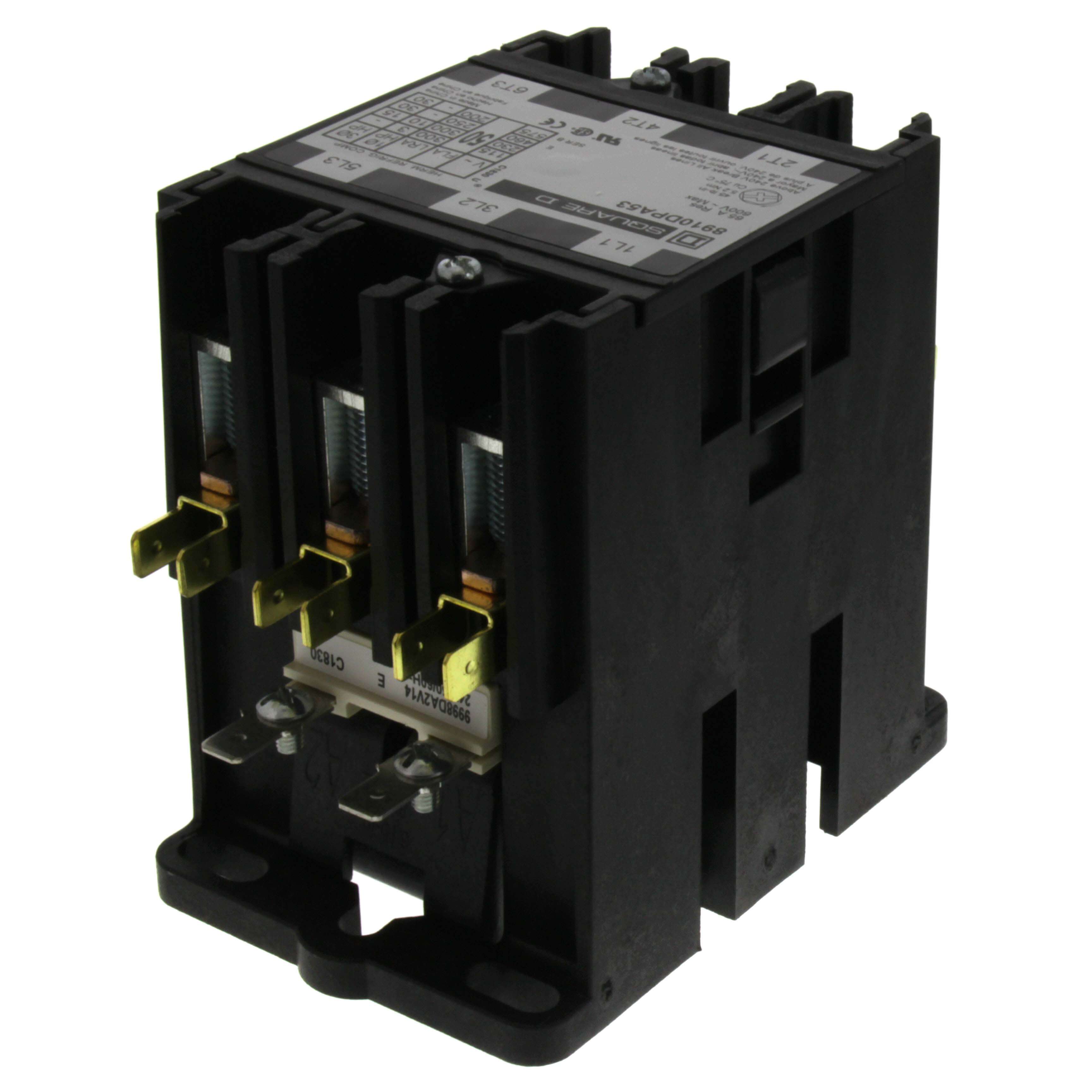

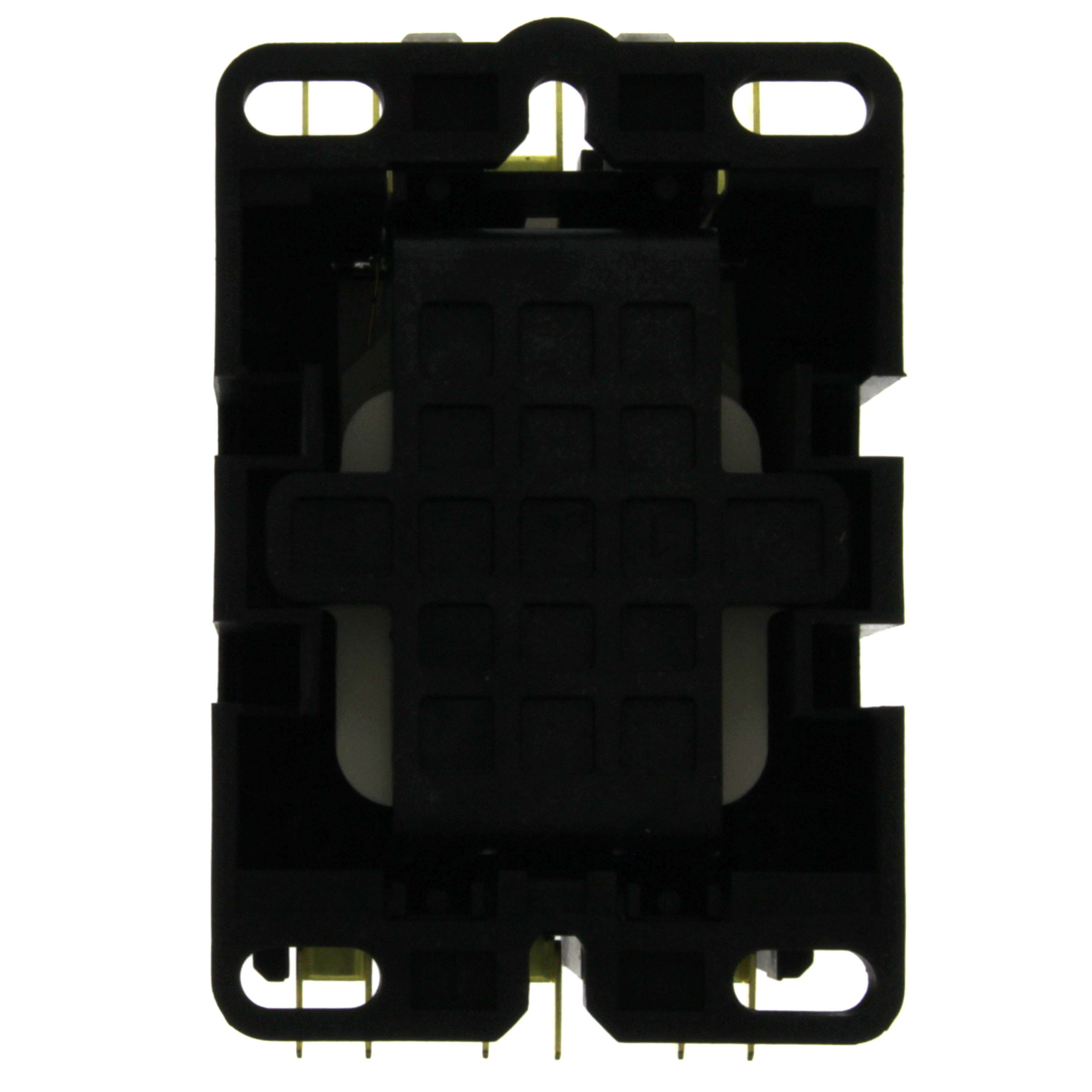

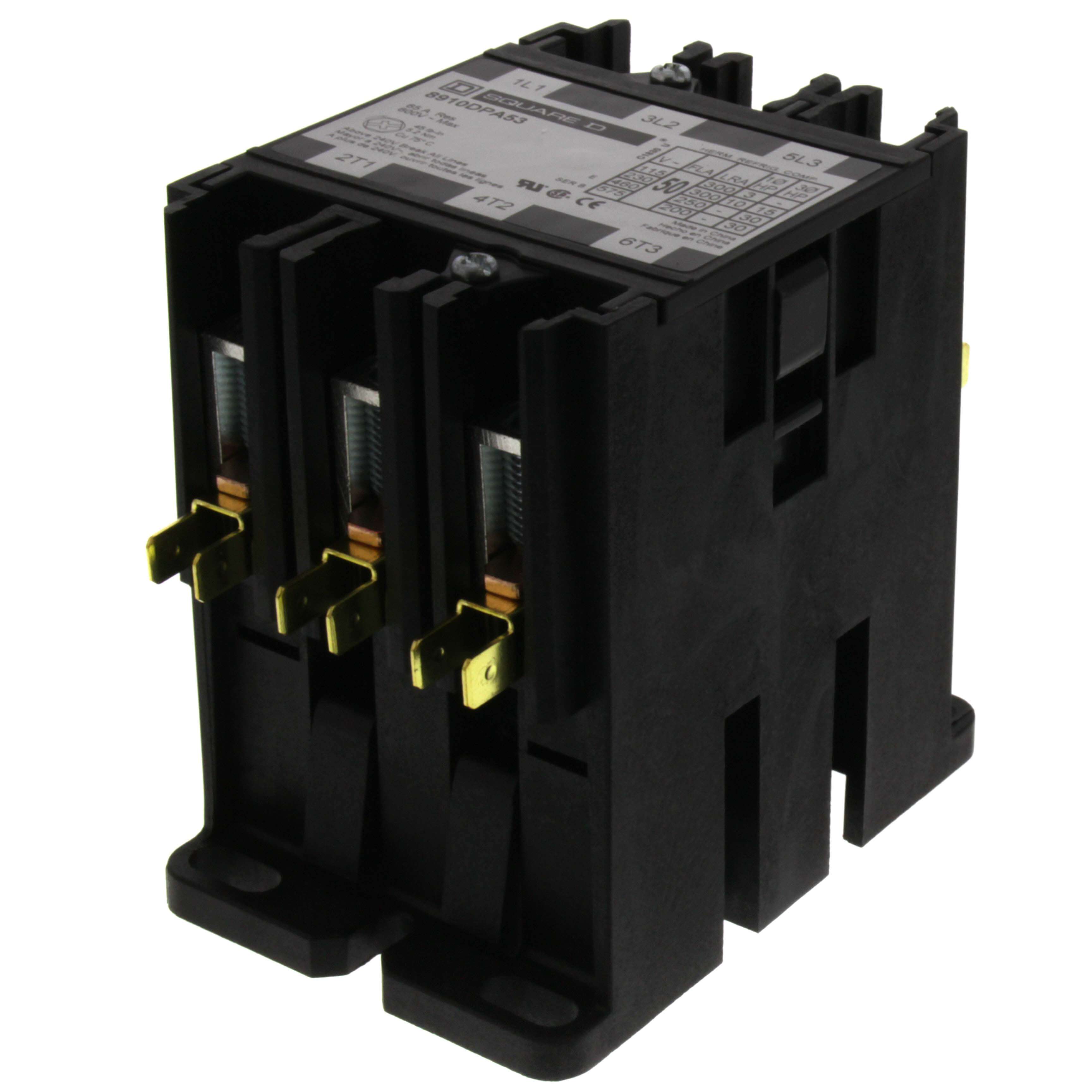

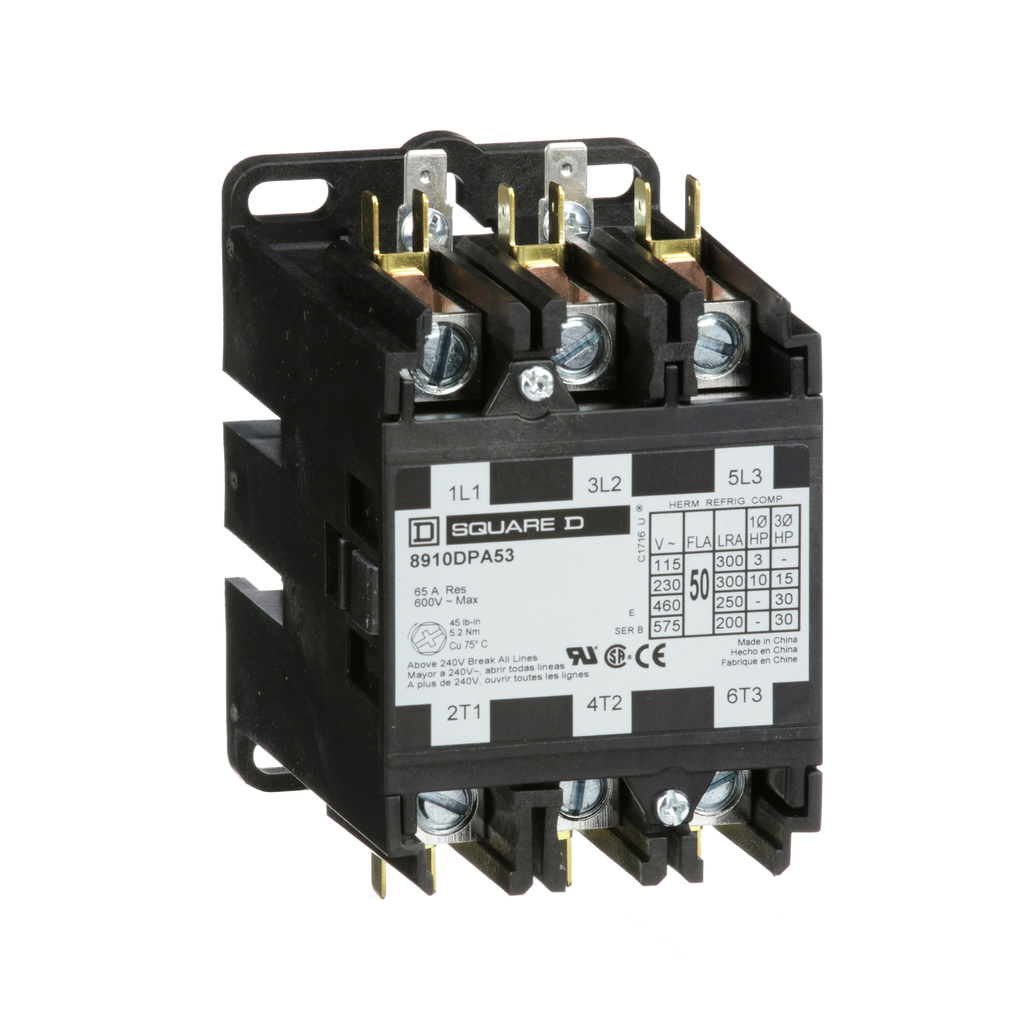

Square D 8910DPA53V14 Definite Purpose Contactor 50 Amp 3-Pole 24 VAC

Product Description

The Square D 8910DPA53V14 Definite Purpose Contactor is designed for heating, air conditioning, and refrigeration applications. It features a 24 VAC coil and a 3-pole configuration. The contactor supports both resistive and inductive loads, with a maximum current rating of 50 amps and a resistive rating of 65 amps.

• 3-pole configuration for versatile applications
• Supports up to 50 amps inductive and 65 amps resistive
• UL and CSA certified for reliable performance

Product Highlights

This Square D contactor is ideal for HVAC and refrigeration systems. It offers straight-through wiring for ease of installation and is UL component recognized. The robust design ensures long-term reliability and efficient operation even in demanding environments.

Product Information

Standard Information

• Brand: Square D
• MPN: 8910DPA53V14
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 8910DPA53V14
• Number of Poles: 3
• Voltage: 24 VAC
• Amperage: 50 A
• Coil Voltage: 24 V AC 50/60 HZ
• Contact Rating: 50 A
• Contact Configuration: 3 NO
• Warranty Length: 18 months
• Country of Origin: China
