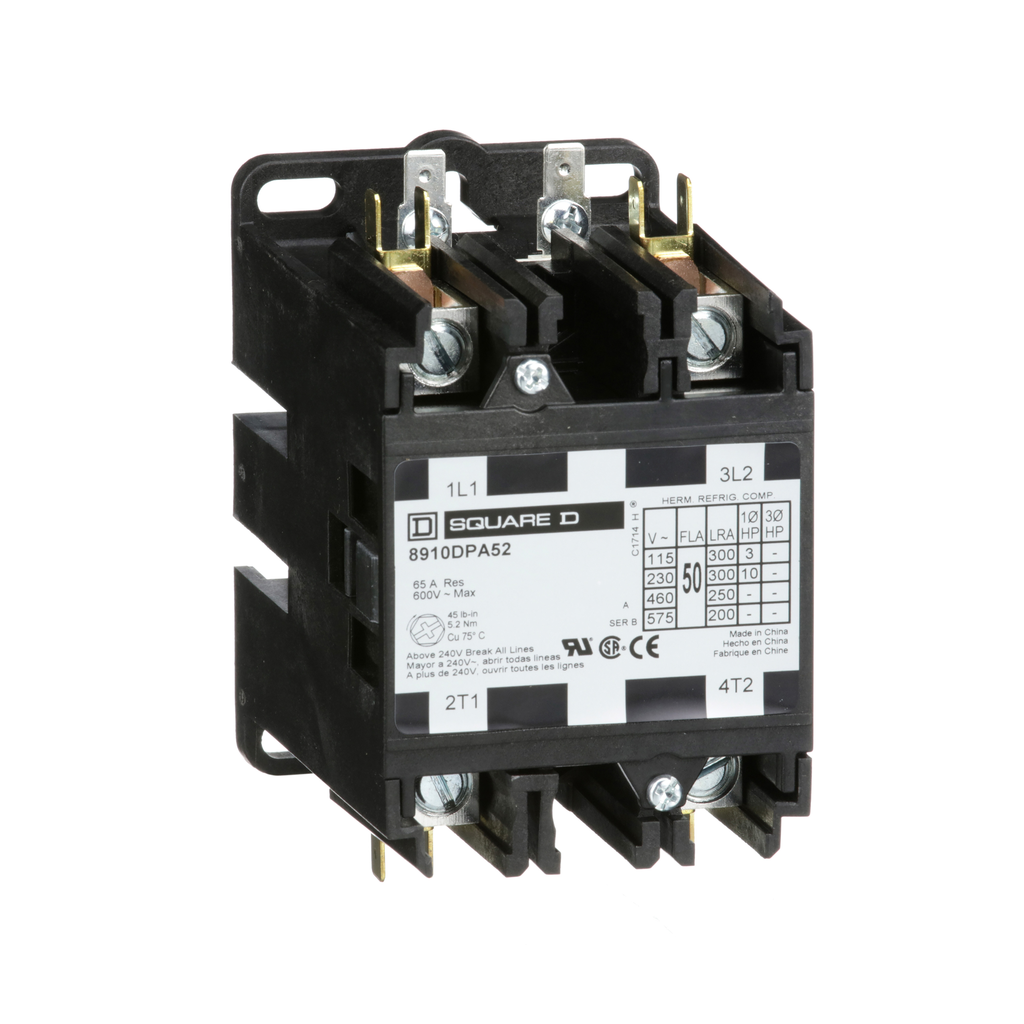

Square D 8910DPA52V02 110/120 VAC 50 Amp 2-Pole 2NO NEMA 1 Non-Reversing Definite Purpose Contactor

Product Description

The Square D 8910DPA52V02 is a definite purpose contactor designed for heating, air conditioning, and refrigeration applications. This contactor operates at 110/120 VAC and has a full load rating of 50 amps. The device also accommodates a variety of coil voltages and includes support for quick connect terminals and box lugs.

• Current ratings up to 120 amperes resistive
• Application ideal for heating, air conditioning, refrigeration
• UL and CSA certified

Product Highlights

The contactor is suitable for equipment ranging from data processing to food service. It measures four point zero six inches by two point five six inches and stands three point six seven inches tall.

Product Information

Standard Information

• Catalog Number: 8910DPA52V02
• Brand: Square D

Technical Specifications

• Voltage: 600 Volt
• Amperage: 50 Amp
• Number of Poles: 2 Pole
• Coil Voltage: 120 V AC 60 HZ-110 V AC 50 HZ
• Contact Configuration: 2 NO
• Certifications: CSA, UL Recognized
• Warranty Length: 18 months
• Country of Origin: China
