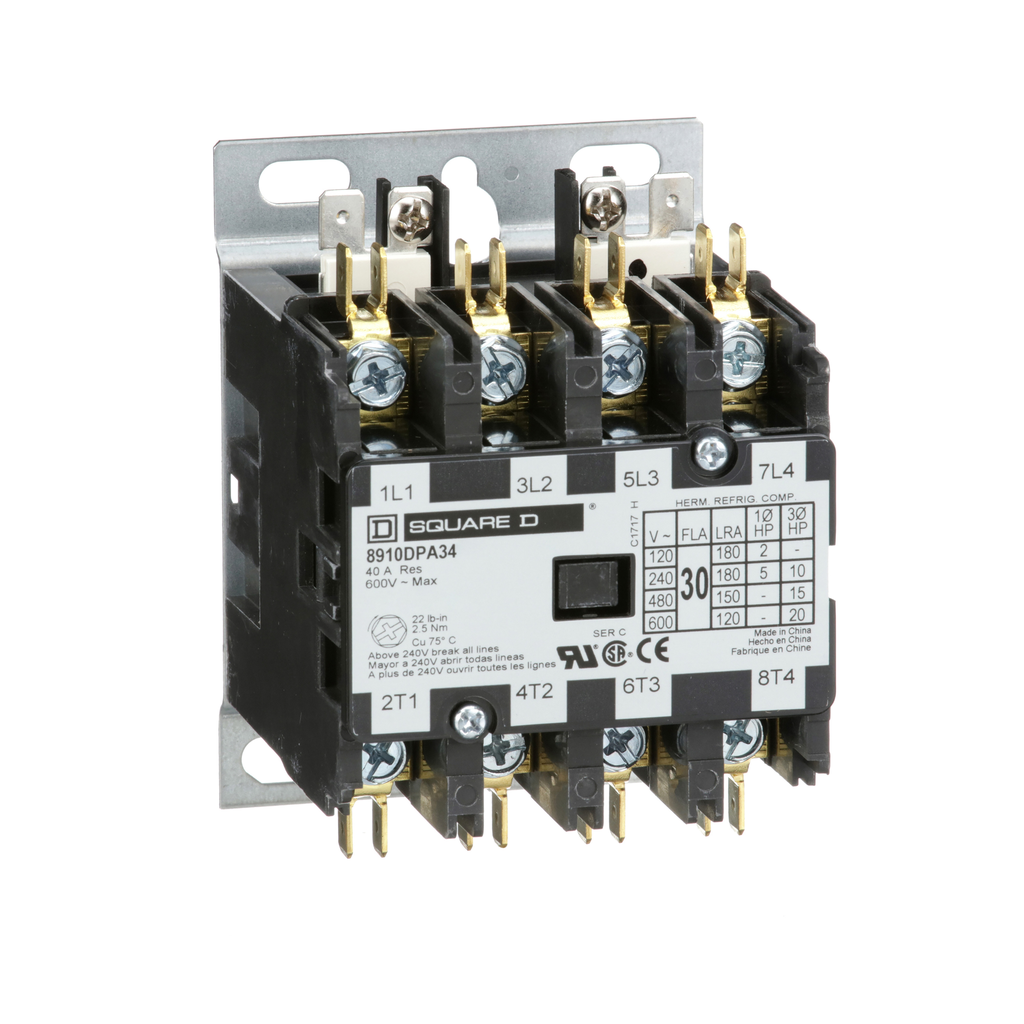

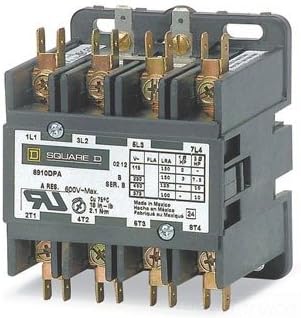

Schneider Electric 8910DPA34V14 24V 30A 4-Pole Definite Purpose Contactor

Product Description

The Schneider Electric 8910DPA34V14 is a reliable 24V 30A 4-pole definite purpose contactor. Suitable for industrial applications, this contactor is designed for heating, air conditioning, refrigeration, and motor control. It features quick connect terminals and binder head screws for easy wiring, and straight-through wiring for efficiency.

• Full load rating of 30 amps
• Resistive rating of 40 amps
• UL and CSA certified

Product Highlights

Efficient and reliable contactor with multiple applications in industrial automation and motor control.

Product Information

Standard Information

• Brand: Schneider Electric (Square D)
• MPN: 8910DPA34V14

Technical Specifications

• Voltage: 24 V AC 50/60 Hz
• Amperage: 30 Amp
• Horsepower: 2 HP at 115 V AC single phase, 5 HP at 230 V AC single phase, 10 HP at 230 V AC three phase, 15 HP at 460 V AC three phase, 20 HP at 575 V AC three phase
• Number of Poles: 4
• Certifications: CSA, UL Recognized
• Coil Voltage: 24 V AC 50/60 Hz
• Dimensions: 3.2 inches x 4.1 inches x 3.1 inches
• Operating Temperature: -5 to 140°F (-20 to 60°C)
• Contact Configuration: 4 NO
