Product Description

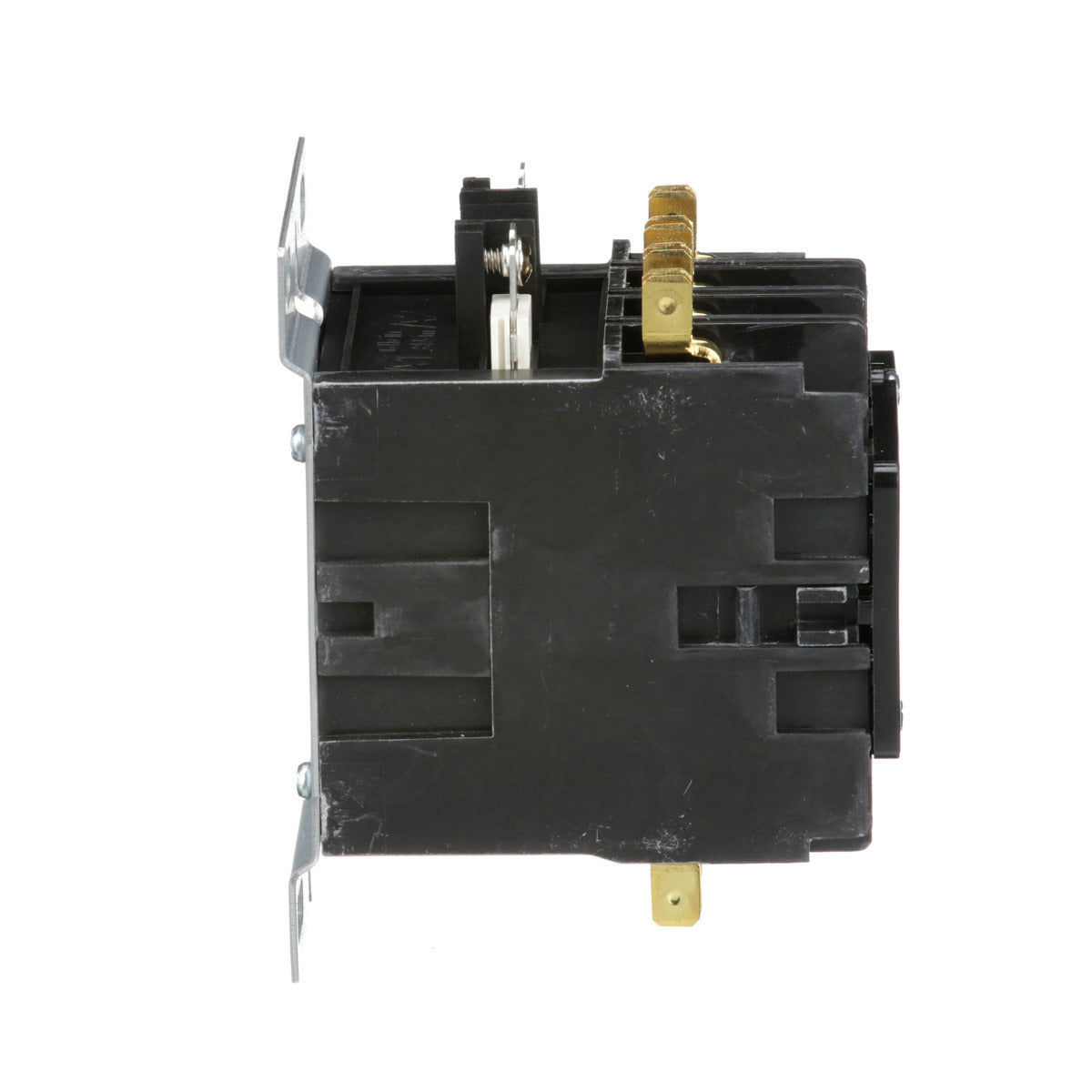

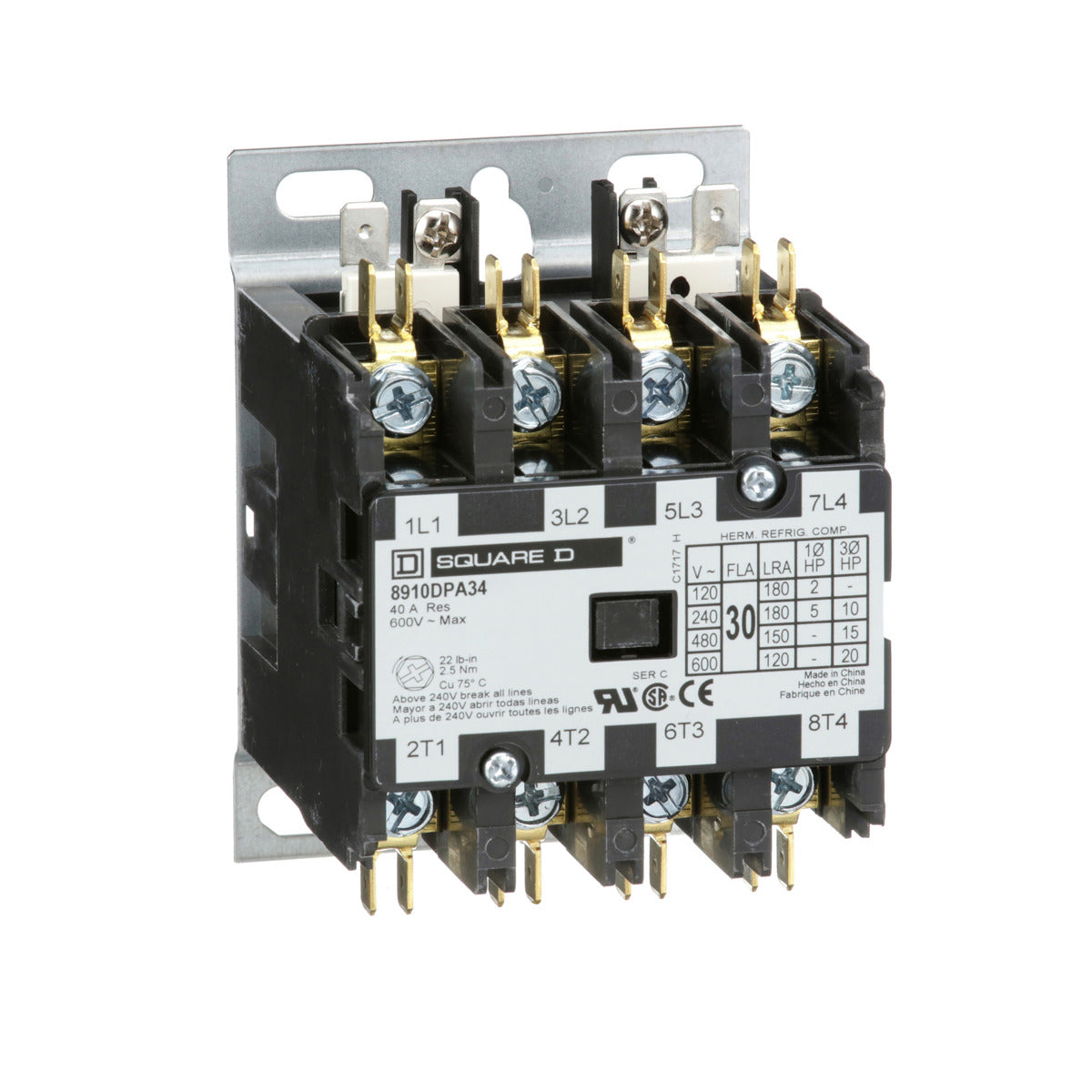

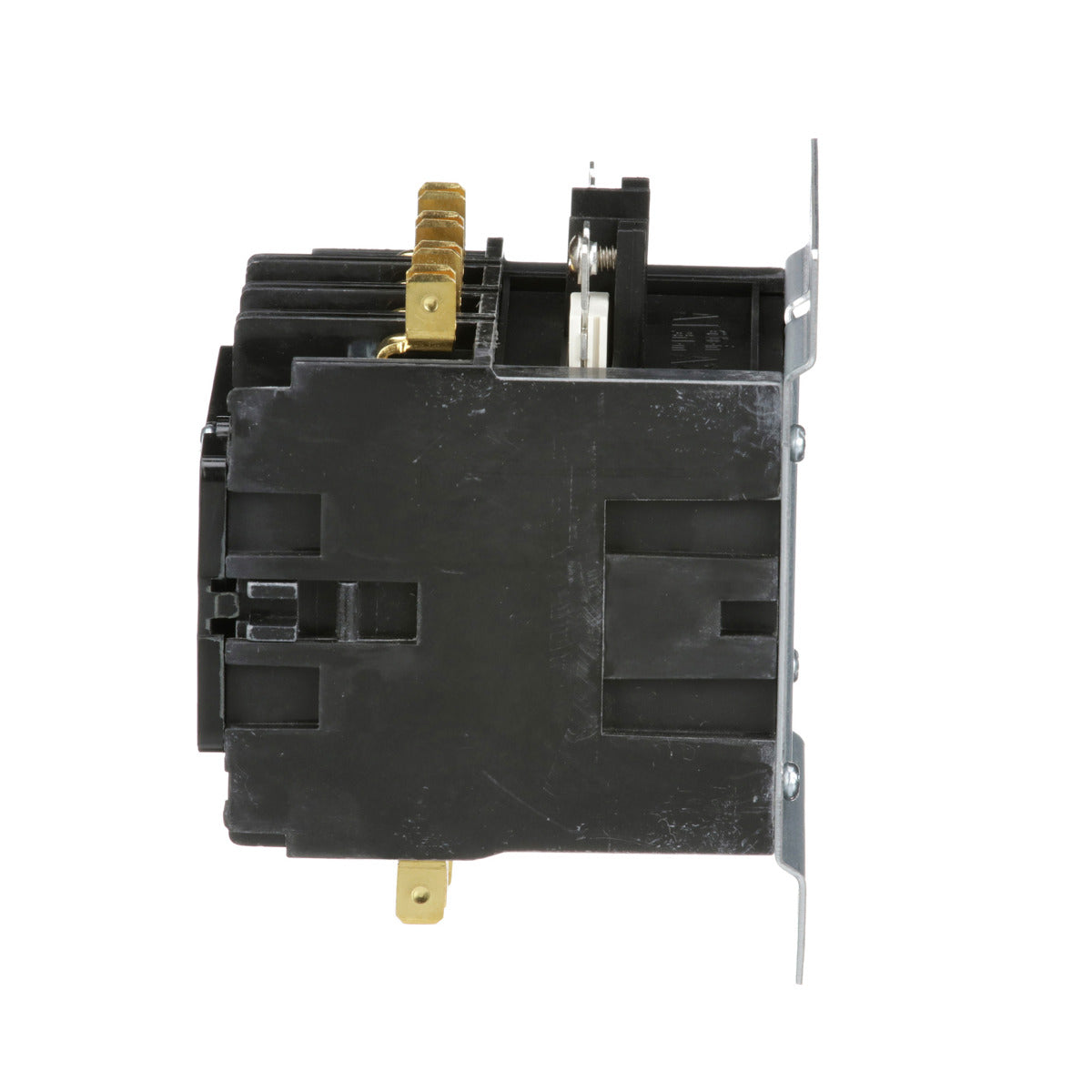

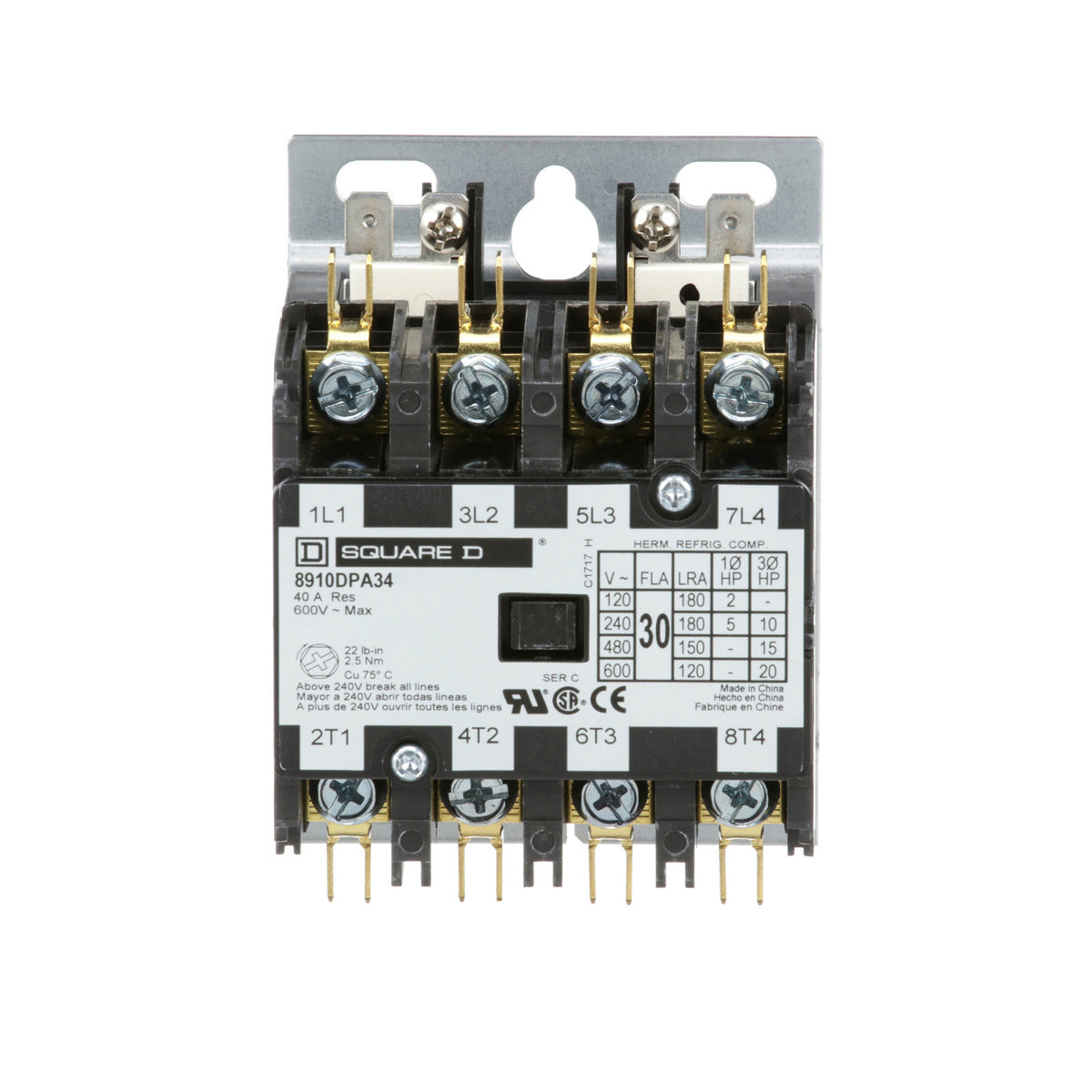

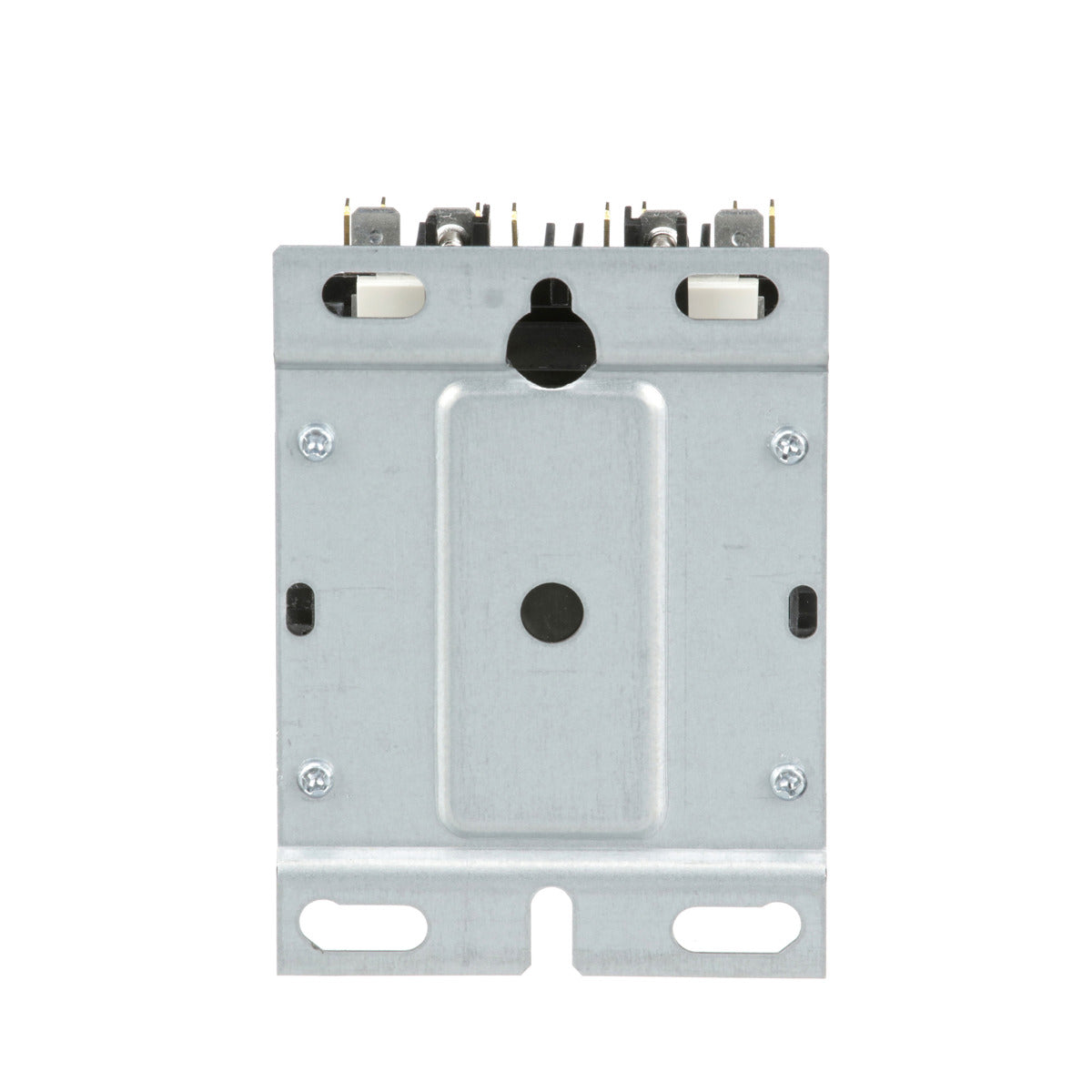

The Square D 8910DPA34V04 definite purpose contactor is designed for heating, air conditioning, and refrigeration applications. This four-pole contactor has a full load rating of 30 Amp and a resistive rating of 40 Amp. The device features a 277 VAC 60 Hz coil and straight-through wiring. It is UL component recognized and CSA certified.
- Full load rating of 30 Amp
- Coil voltage of 277 VAC 60 Hz
- UL component recognized and CSA certified
Product Highlights
The Square D 8910DPA34V04 contactor is ideal for HVAC, food and beverage, and data center applications.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: 8910DPA34V04
-
Country of Origin: China
Technical Specifications
-
GTiN: 00785901024439
-
Size: 4P
-
Type: Definite Purpose Contactor
-
Brand: Square D
-
Voltage: 600 Volt
-
Amperage: 30 Amp
-
Sub Brand: DPA
-
Product UPC: 78590102443
-
12-Digit UPC: 785901024439
-
Applications: IDEAL FOR HEATING, AIR CONDITIONING, REFRIGERATION, DATA PROCESSING AND FOOD SERVICE EQUIPMENT.
-
Coil Voltage: 277 V AC 60 HZ,600 V AC
-
TC Connection: Quick connect terminals;Binder head
-
Certifications: CSA,UL Recognized
-
Contact Rating: 600 V AC
-
Number of Poles: 4 Pole
-
Number of Phases: 3 Phase
-
Line Rated Current: 30 A
-
Contact Configuration: 4 NO
-
Manufacturer: Schneider Electric
-
Made in USA: No
-
UPC: 785901024439
-
Power Rating/Voltage: 2 HP at 115 VAC 1 Phase, 5 HP at 230 VAC 1 Phase, 10 HP at 230 VAC 3 Phase, 15/20 HP at 460/575 VAC 3 Phase
-
Resistive Ampere: 40 Ampere
-
Auxiliary Contact: 4NO
-
Enclosure: Open
-
Construction: Standard NEMA
-
Approval: UL, CSA, CE
-
Application: HVAC, Food and Beverage, Data Center
-
Includes: Binding Head Screw Terminal with Quick Connect
-
Locked Rotor Rating: 180 Ampere at 230 VAC, 150 Ampere at 460 VAC, 120 Ampere at 575 VAC
-
Series: Class 8910 Series
-
Mounting Type: Panel
-
Frame Type: 8910
-
Terminal Connection: Quick Connect and Binder Head
-
Length (in): 3.04
-
Width (in): 2.75
-
Height (in): 3.78
-
Standards: RoHS, REACh
-
Action: Non-Reversing
-
Coil Volts: 277VAC at 60Hz
-
Mpn: 8910DPA34V04
-
Coil Power Rating: 2 hp at 115 VAC/5/10 hp at 230 VAC/15 hp at 460 VAC/20 hp at 575 VAC
-
Connection Type: Binding Head Screw
-
Frequency Rating: 50/60 Hz
-
Maximum Load Current: 30 A
-
Operating Cycles: 500 cpm
-
Operating Temperature: 32 to 149 deg F
-
Terminal Type: Quick-Connect
-
Wattage: 1.5 kW at 115 V/3.7 kW at 230 V/7.5 kW at 230 V/11 kW at 460/575 V
-
Contact Current Rating: 30 A
-
Manufacturer Part Number: 8910DPA34V04
-
Numeric ID: 4079255
