Product Description

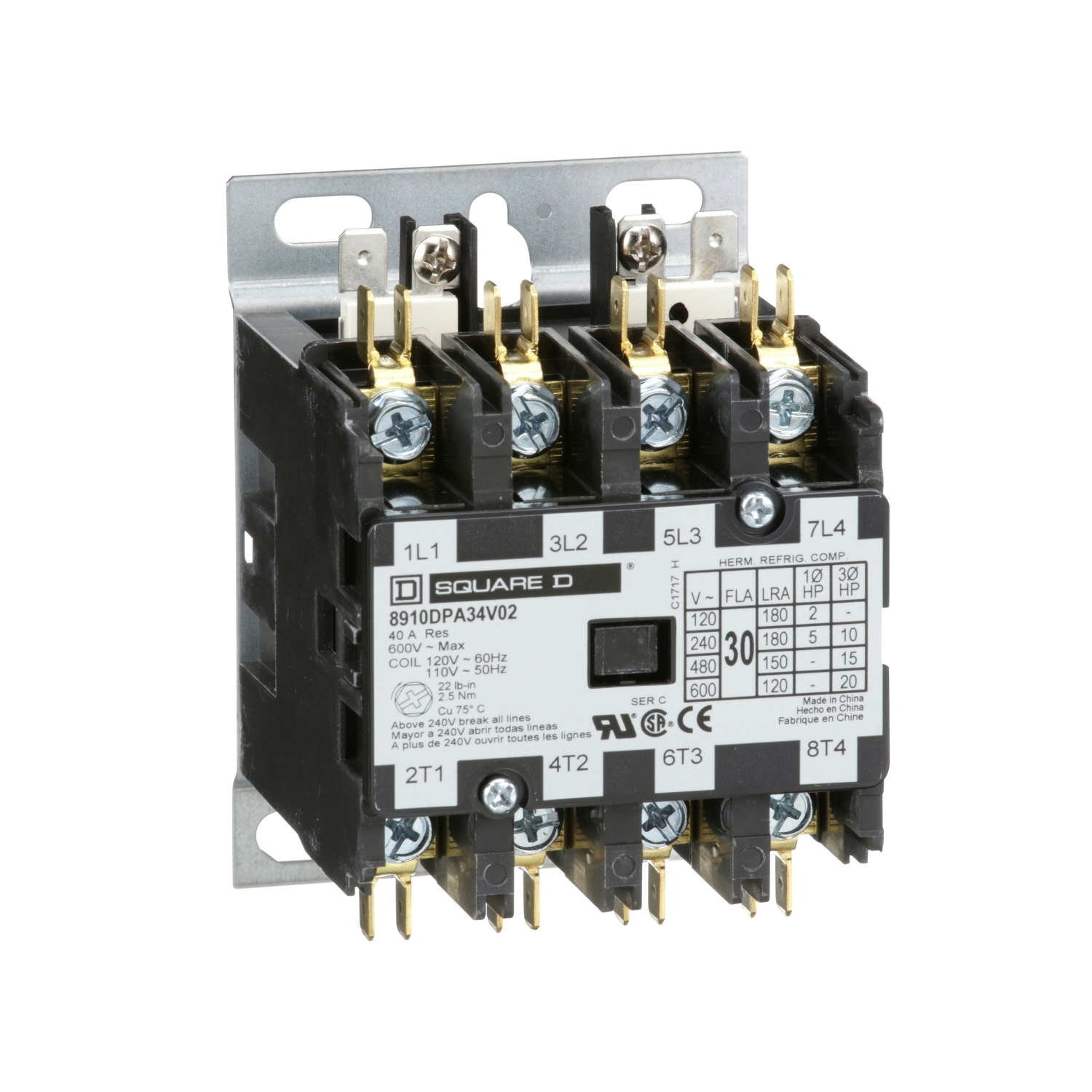

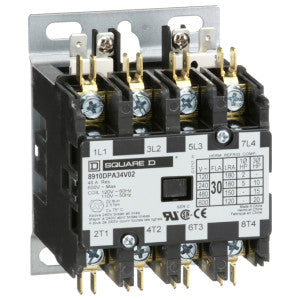

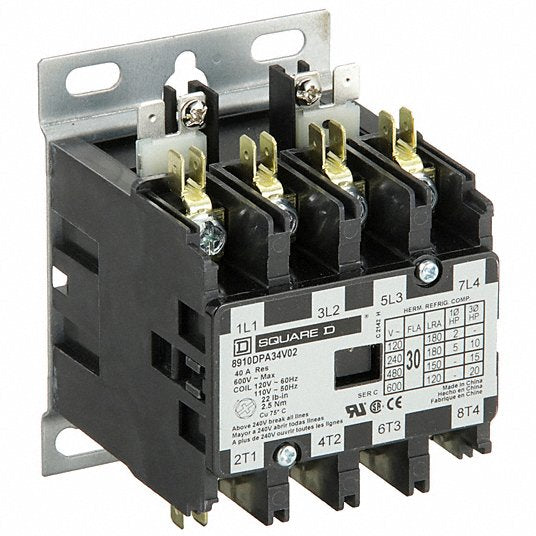

The Square D 8910DPA34V02 definite purpose magnetic contactor is designed to control power for motors and machinery. It features a rated current of thirty amperes for inductive loads and forty amperes for resistive loads. This four-pole contactor operates effectively in applications involving heating, air conditioning, and refrigeration, powered by a coil voltage of one hundred ten to one hundred twenty volts AC at fifty to sixty hertz.
- Non-reversing contactor for straightforward application.
- Four-pole design with a main contact form of 4NO.
- Rated for 30 ampere full load current.
Product Highlights
The Square D contactor is suitable for various industrial and commercial motor control setups, ensuring reliability in essential systems.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: 8910DPA34V02
Technical Specifications
-
Series: 8910 Series Type
-
Number of Poles: 4
-
Phase: Three
-
Main Pole Contact Form: 4NO
-
Full Load Current - Inductive: 30 A
-
Full Load Current - Resistive: 40 A
-
Coil Voltage: 110/120V AC
-
Frequency: 50/60 Hz
-
Maximum Voltage Rating: 600V AC
-
Horsepower @ Single Phase - 120V AC: 2 hp
-
Horsepower @ Single Phase - 240V AC: 5 hp
-
Horsepower @ Three Phase - 240V AC: 10 hp
-
Wire Termination Type: Quick Disconnect; Screw Clamp
-
NEMA Enclosure Rating: No Enclosure
-
Overall Height: 3.77 in
-
Overall Width: 2.75 in
-
Overall Depth: 3 in
-
Standards: CSA; RoHS; UL Listed
-
Control Circuit Voltage: 120 V AC 60 Hz || 110 V AC 50 Hz
-
Rated Current: 30A
-
Country of Origin: China
-
Warranty: 18 months
