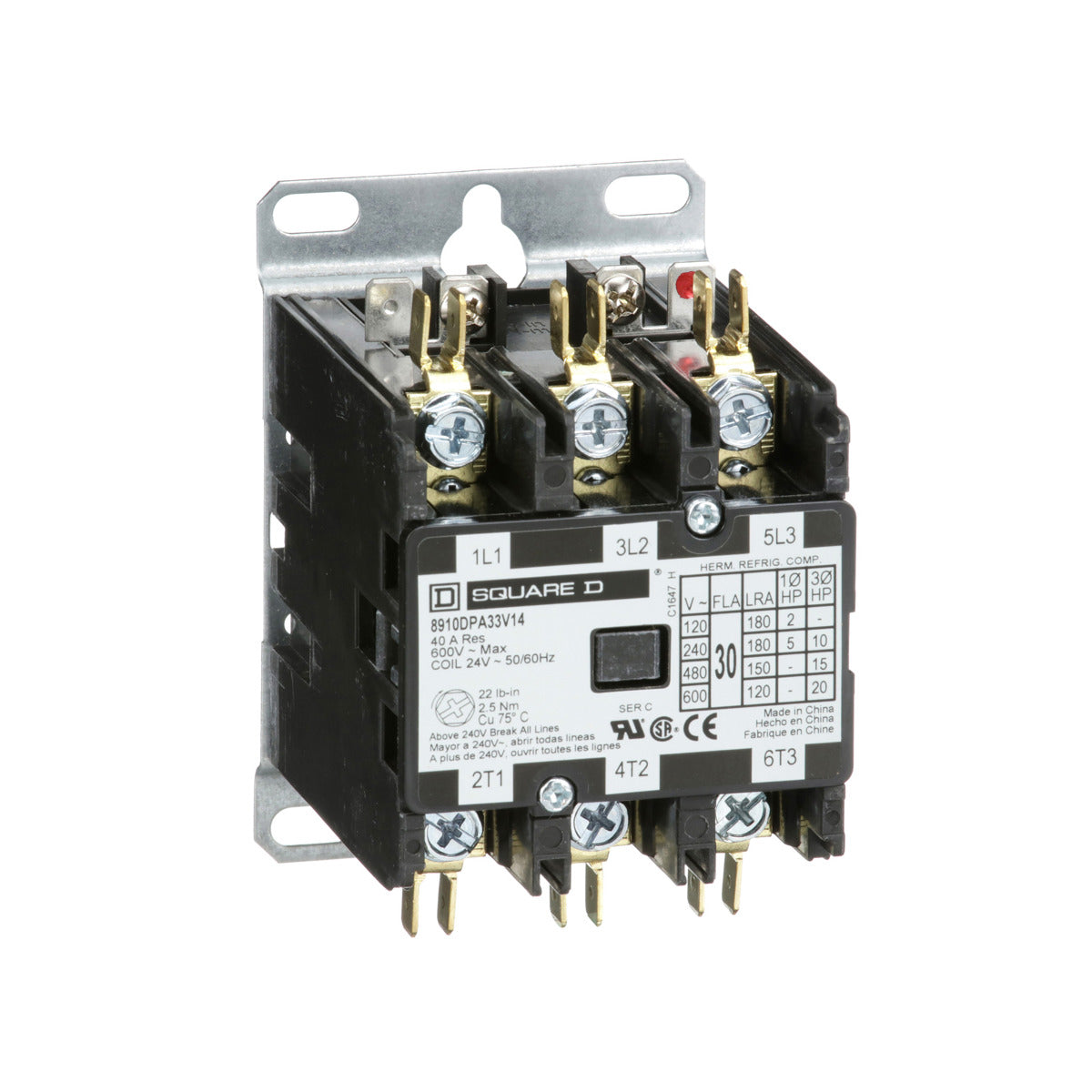

Square D 8910DPA33V14 Definite Purpose Contactor 24 VAC 30 Amp 3-Pole 8910DPA33V14

Product Description

The Square D 8910DPA33V14 is a definite purpose contactor designed for robust performance specifically in heating, air conditioning, and refrigeration systems. Engineered by Schneider Electric, this 3-pole contactor facilitates reliable operation with a mechanical life of around 500,000 operations.

• Equipped with a 24 VAC coil voltage, ensuring compatibility with most systems.
• Rated for 30 amps inductive and 40 amps resistive, with a maximum voltage of 600 VAC.
• UL Recognized and CSA Certified, promoting safety and compliance in diverse settings.

Product Highlights

This contactor features straight-through wiring and a non-replaceable coil available in various voltage configurations to suit specific application needs. It supports multiple horsepower ratings, enhancing its versatility in commercial setups.

Product Information

Standard Information

• Dimensions: 3.75 inches by 2.37 inches by 3.00 inches
• Coil Frequency: 50/60 Hz, accommodating standard power supplies

Technical Specifications

• Number of Poles: 3 Pole
• Operational Life:Approximately 500,000 operations
• Enclosure Type: Open, allowing for easy inspection and maintenance.
• Connection Type: Quick Connect Terminals and Binder Head
• Approvals: UL, CSA, CE marking ensures global compliance and safety standards.
