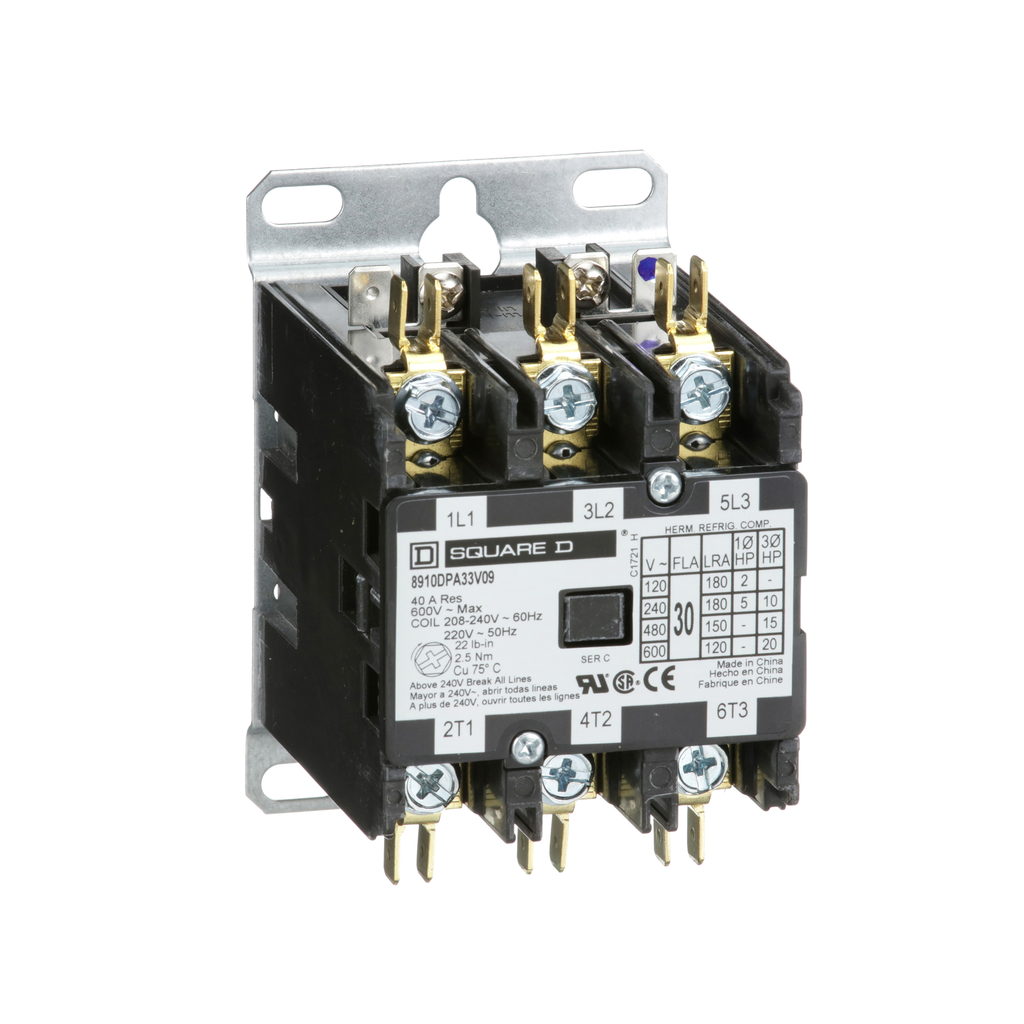

Square D 8910DPA33V09 208 to 240 VAC 30 Amp 3-Pole 3NO NEMA 1 Non-Reversing Definite Purpose Contactor

Product Description

The Square D 8910DPA33V09 is a definite purpose magnetic contactor used primarily for heating, air conditioning, and refrigeration systems. This three-pole contactor is built for high demand applications with a full load rating of thirty amperes and is suitable for controlling systems with voltages of two hundred to two hundred forty VAC. The device supports various motor power configurations, including up to fifty horsepower at six hundred VAC.

• Rated for 208 to 240 VAC and thirty amperes
• Three pole configuration for reliable switching
• UL component recognized and CSA certified

Product Highlights

This contactor features a nonreplaceable coil option, designed to operate at 60 Hz with additional voltage configurations available for versatility in various applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 8910DPA33V09
• Voltage: 600 Volt
• Amperage: 30 Amp
• Number of Poles: 3 Pole
• Resistance Rating: 40 Amperes
• Dimensions: 3.75 inches x 2.37 inches x 3.00 inches
• Coil Voltage: 208...240 V AC 60 HZ-220 V AC 50 HZ
