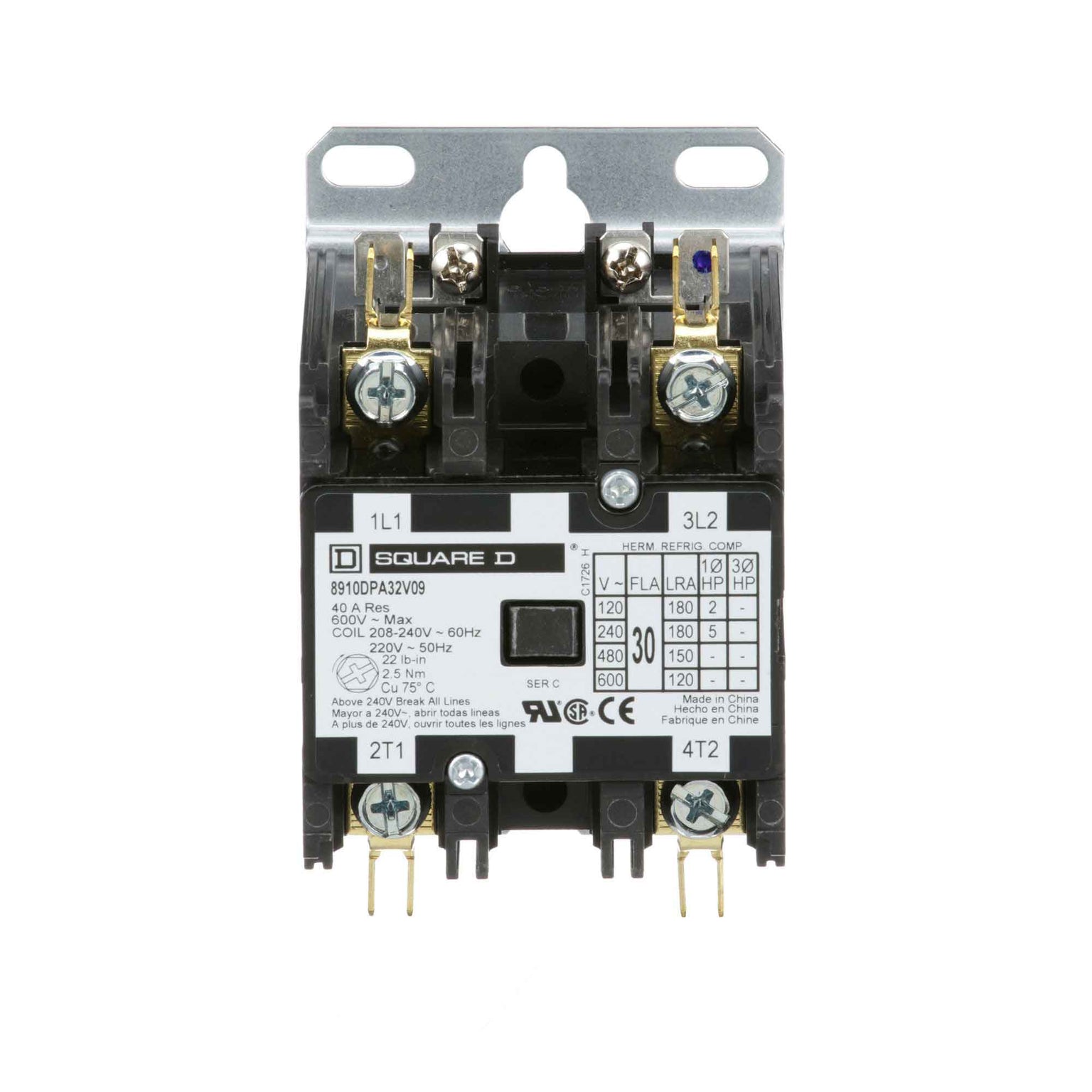

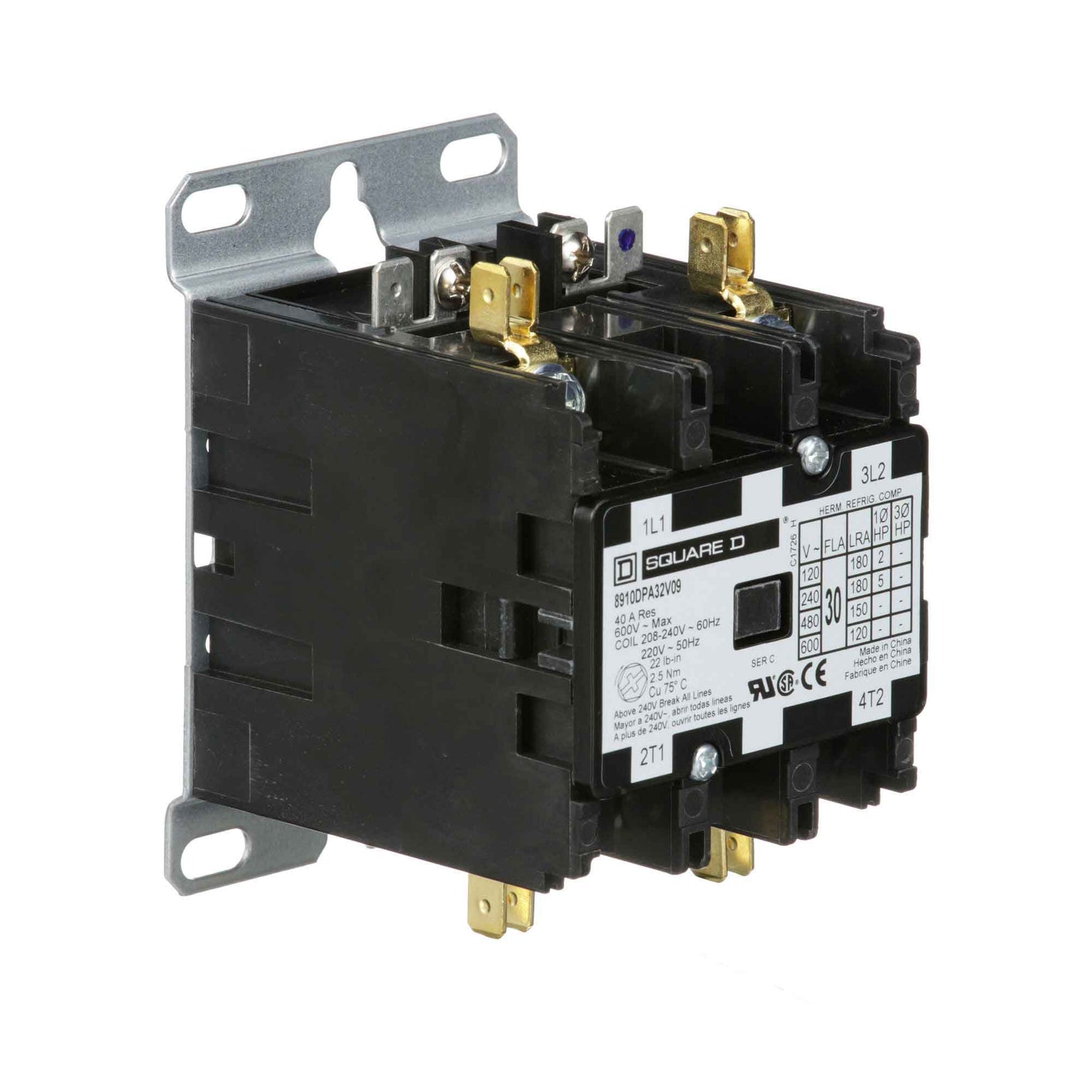

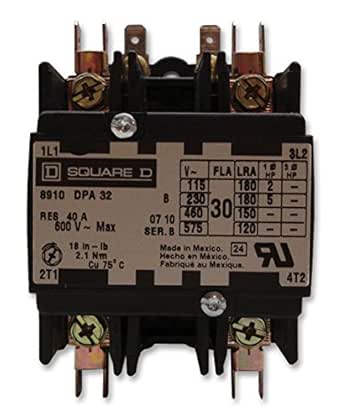

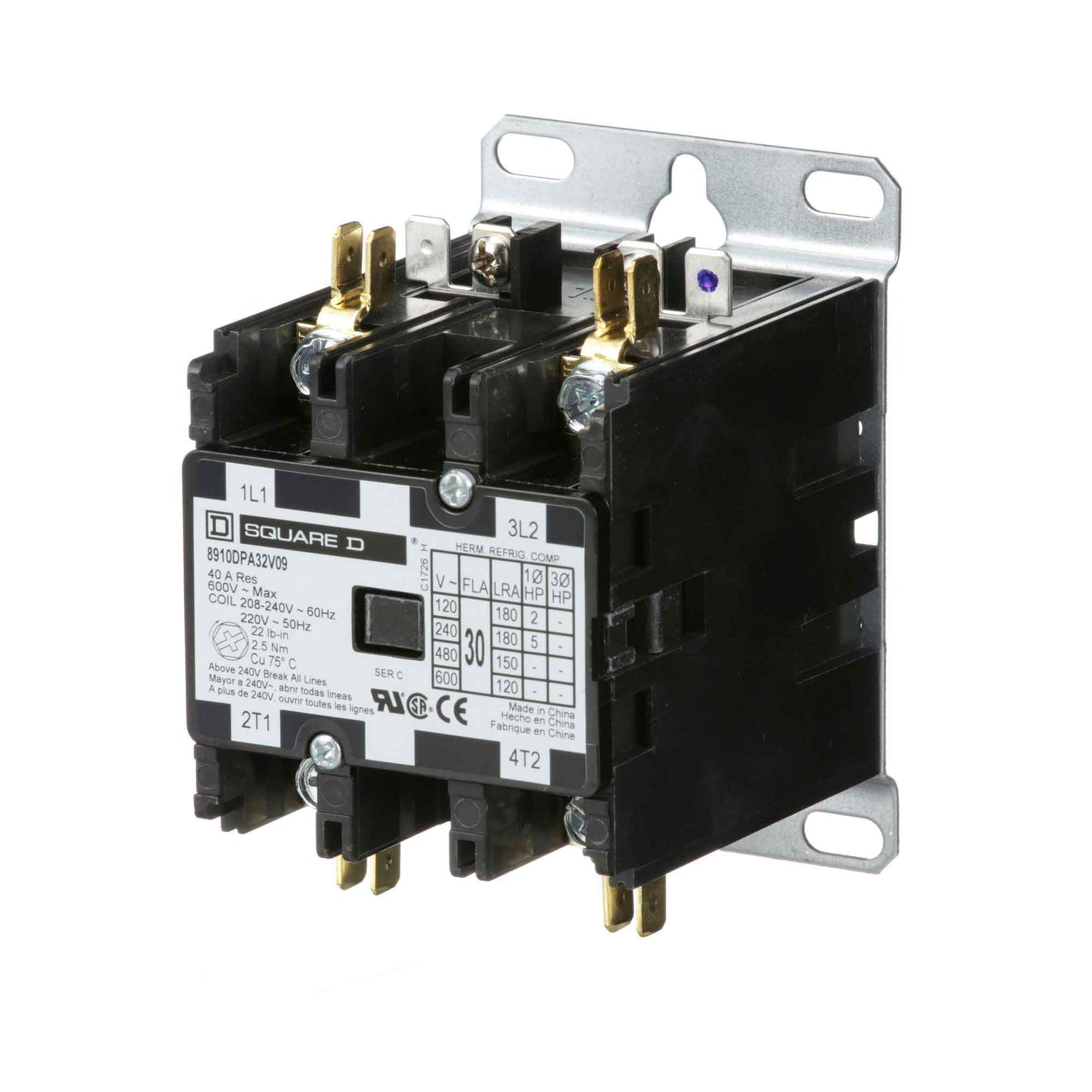

SQUARE D 8910DPA32V09 Contactor, Panel, 600 VAC, DPST-NO, 2 Pole

Product Description

The Square D 8910DPA32V09 contactor is a panel-mounted, two-pole contactor designed for definite purpose applications. It is rated for thirty AMPS and a resistance load of forty AMPS. This contactor operates with a coil voltage of two hundred eight to two hundred forty volts at sixty hertz. It supports ten horsepower at two hundred thirty volts and fifteen horsepower at four hundred sixty volts in three-phase operations.

• Compact design for various installations.
• Industry-standard mounting options for easy integration.
• Double break contacts for reliable performance.

Product Highlights

This contactor is suitable for heating, air conditioning, refrigeration, data processing, and food service applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Family: Class 8910

Technical Specifications

• Item model number: 8910DPA32V09
• AMPS: 30
• Number of Poles: 2
• Coil voltage: 208-240 volt AC
• Locked Rotor AMPS @ 230 volt: 180A
• Locked Rotor AMPS @ 460 volt: 150A
• Terminals: Double Quick Connect
• Volt: 600
• Phase: 1
• Category: Contactors
• Type: DPA
