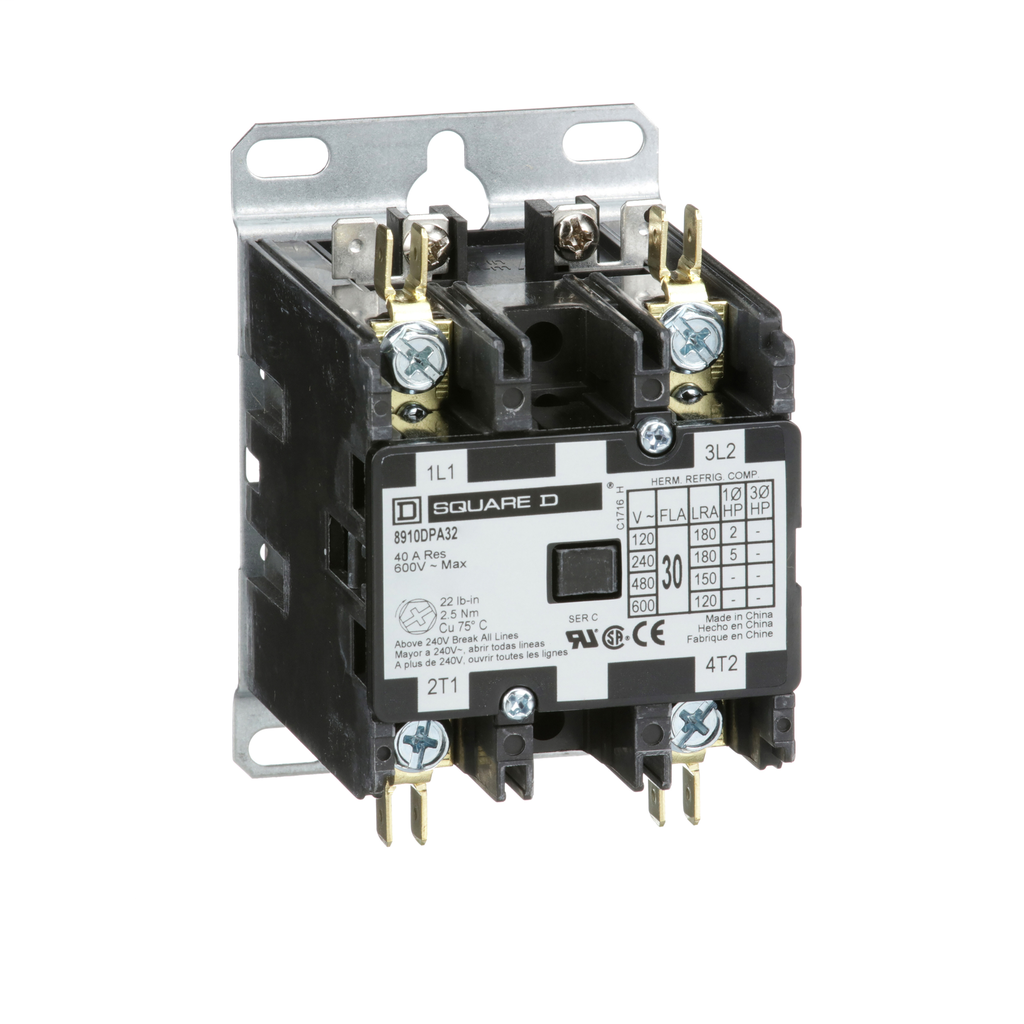

Square D 8910DPA32V06 440/480 VAC 30 Amp 2-Pole 2NO NEMA 1 Non-Reversing Definite Purpose Contactor

Product Description

The Square D 8910DPA32V06 is a definite purpose magnetic contactor designed for heating, air conditioning, and refrigeration applications. This contactor operates at 440/480 VAC and has a full load rating of 30 amperes. It can handle resistive loads up to 40 amperes and supports various horsepower ratings. Ideal for applications requiring reliable power switching, this model is UL component recognized and CSA certified.

• Voltage: 440/480 VAC 50/60 Hz
• Coil Ratings: 30 Amp Full Load
• Contact Configuration: 2 NO

Product Highlights

Key features include a compact design, easy installation with quick connect terminals, and compatibility with a range of heating and cooling systems.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 8910DPA32V06
• Voltage: 440/480 VAC
• Amperage: 30 Amp
• Phase: 1
• Coil Voltage: 440 V AC 50 Hz; 480 V AC 60 Hz
• Contact Rating: 30 A
• Country of Origin: China
• Warranty Length: 18 months
