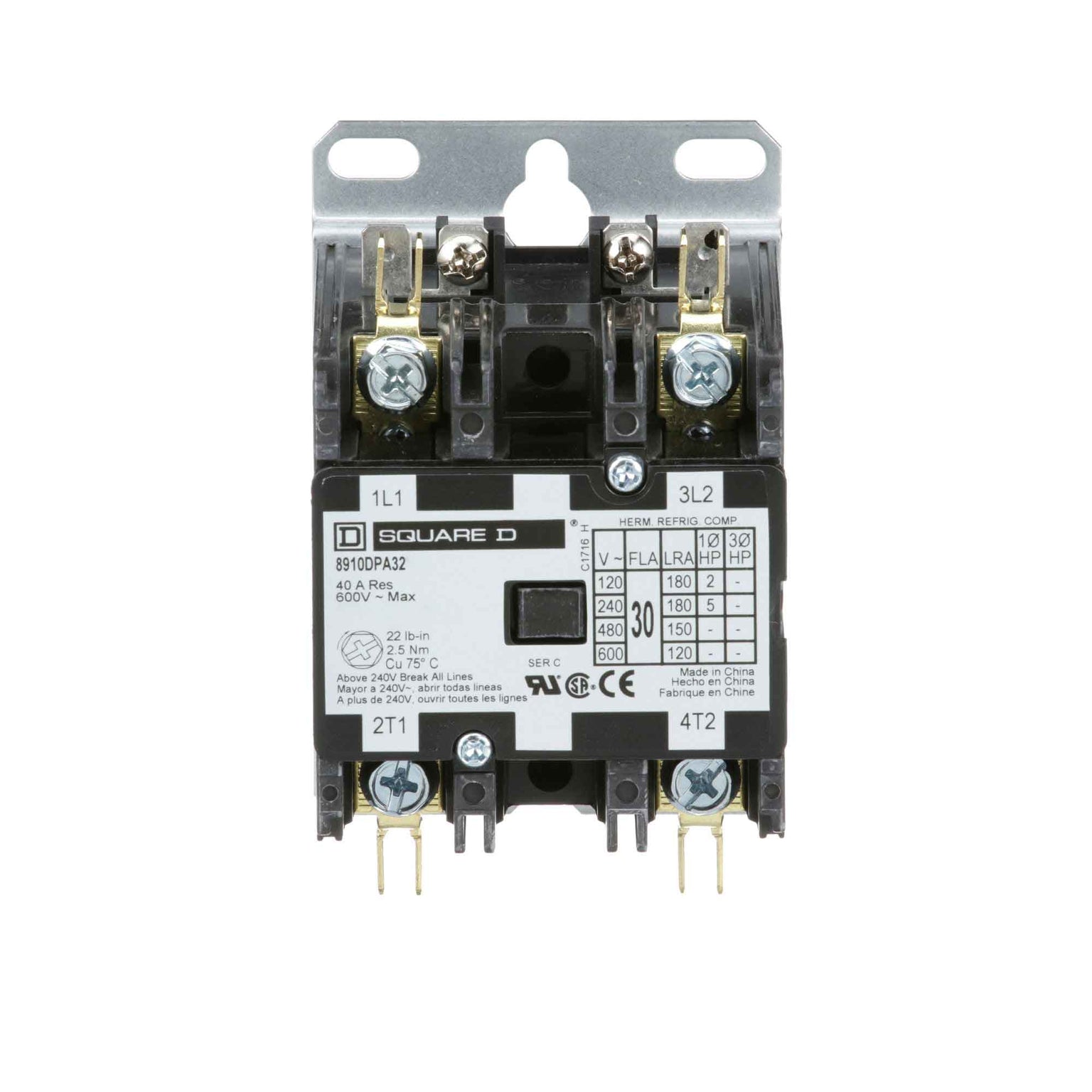

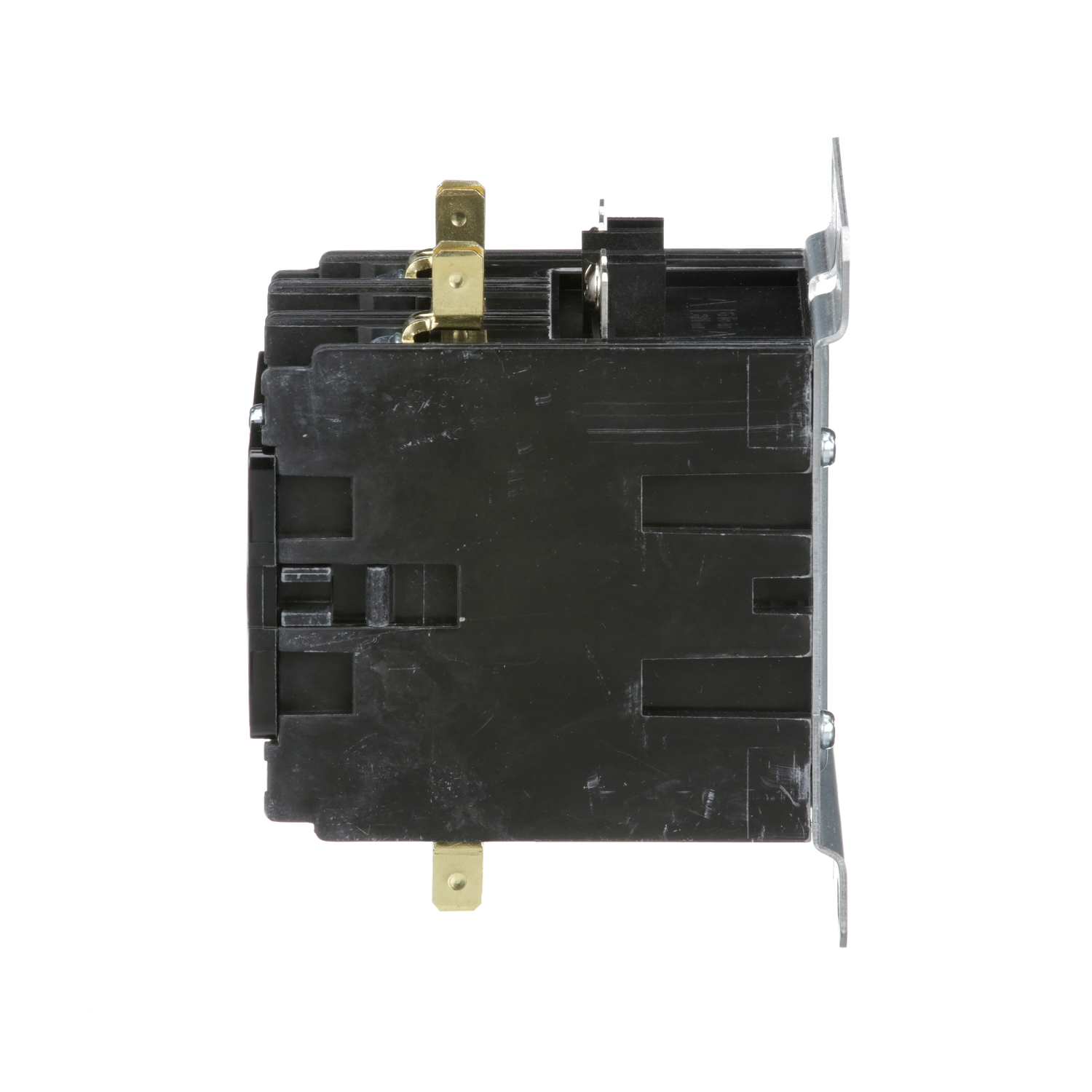

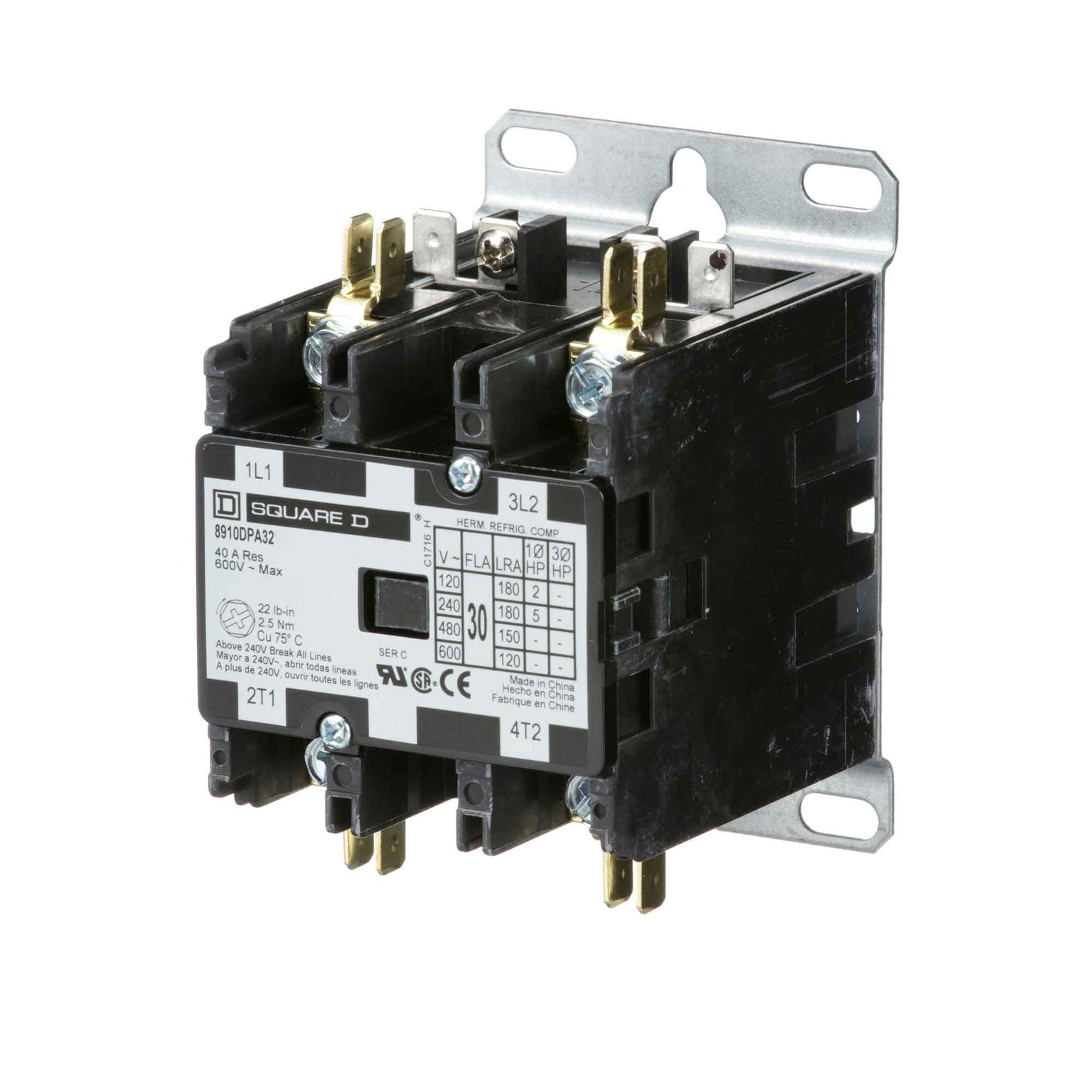

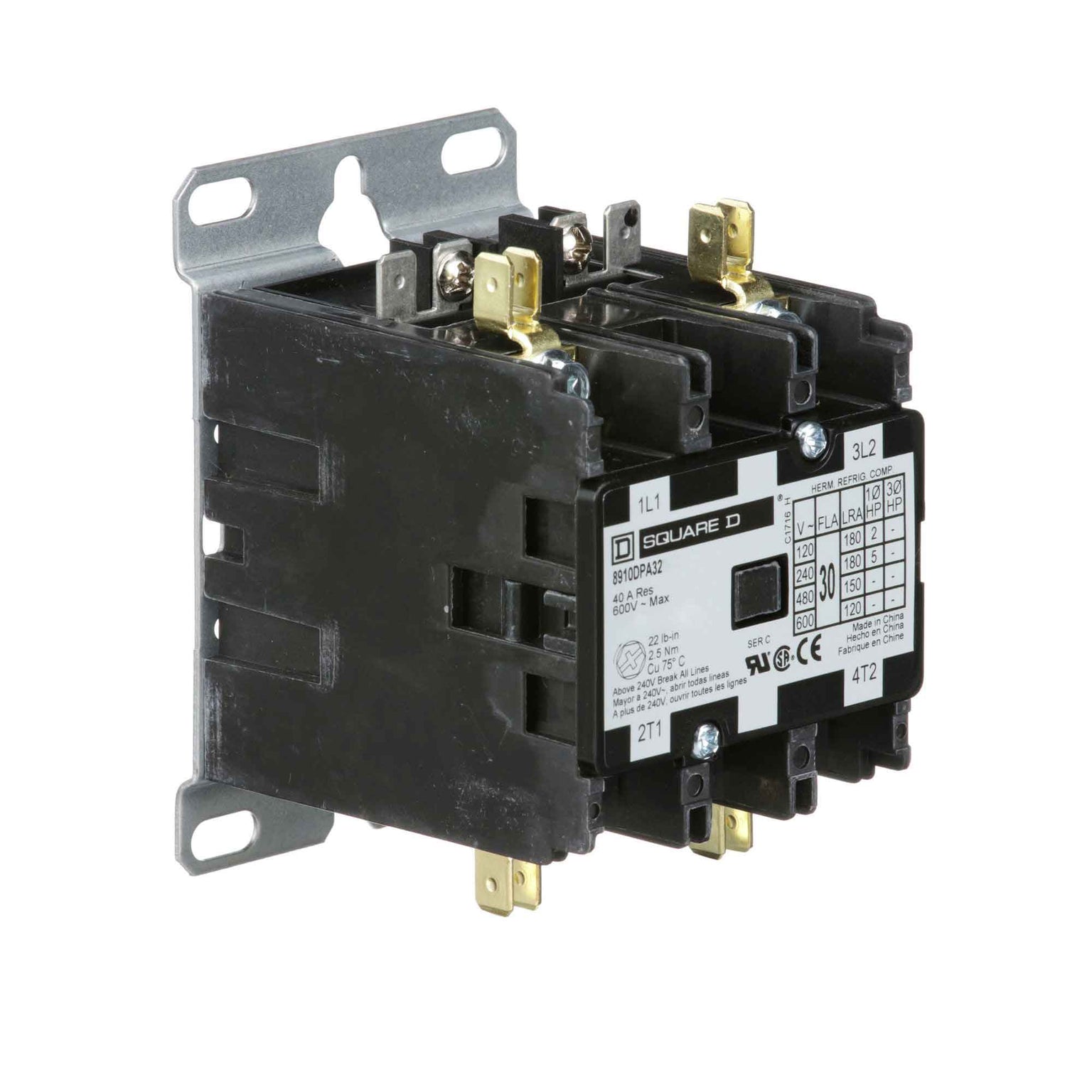

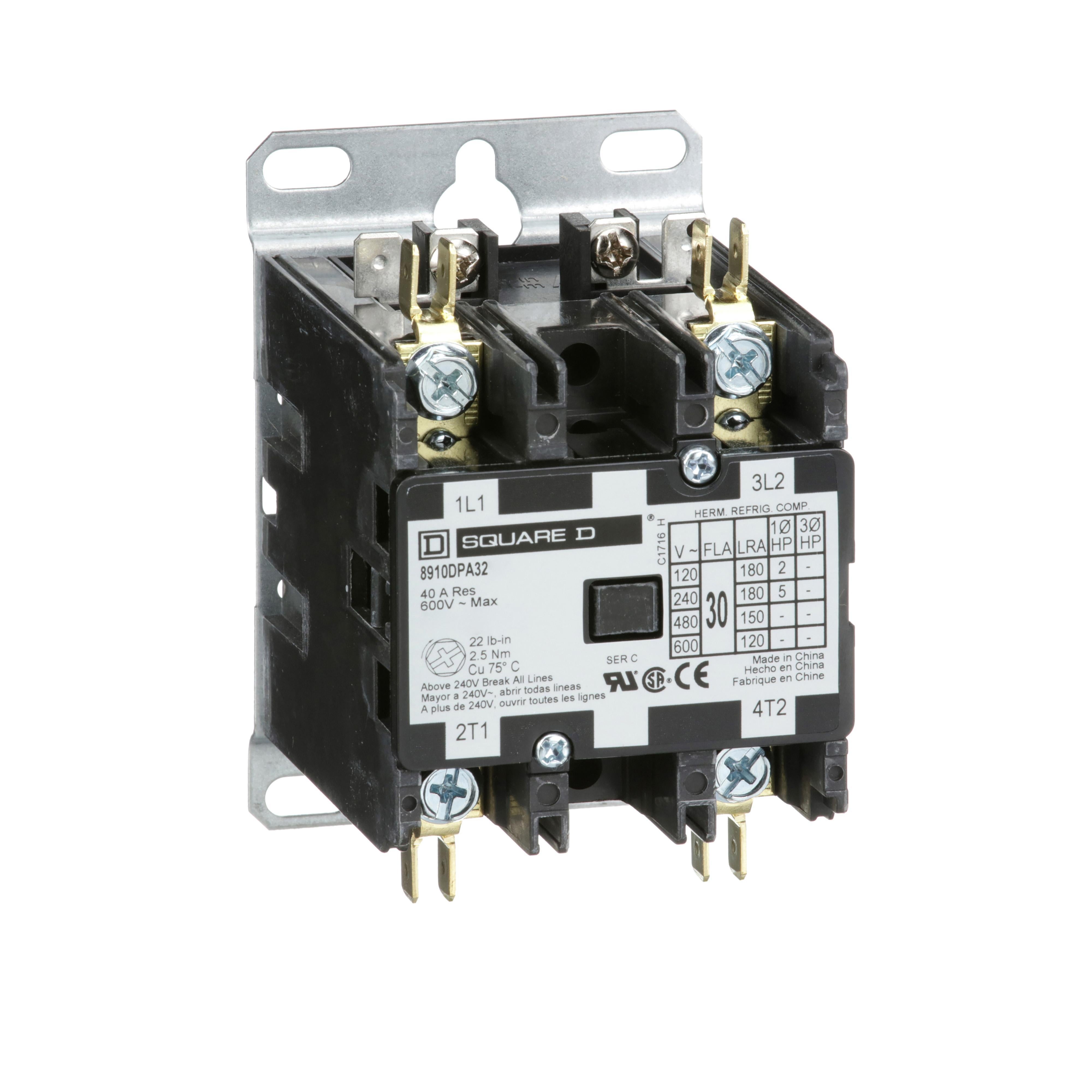

Square D 8910dpa32v04 definite purpose contactor 30 amp

Product Description

The Square D 8910DPA32V04 is a definite purpose magnetic contactor designed for heating, air conditioning, and refrigeration applications. This 2-pole contactor has a full load rating of 30 Amp and a resistive rating of 40 Amp. It features straight through wiring and a 277 VAC 60 Hz coil. It is UL component recognized and CSA certified.

• Designed for heating, air conditioning, and refrigeration applications
• Full load rating of 30 ampere and a resistive rating of 40 amperes
• Straight through wiring

Product Highlights

This definite purpose contactor is ideal for use in HVAC, food service, and data processing equipment. It provides reliable power connection and disconnection for motors and other high-current equipment.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 8910DPA32V04
• Country of Origin: China

Technical Specifications

• Type: Definite Purpose Contactor
• Brand: Square D
• Voltage: 600 Volt
• Amperage: 30 Amp
• Sub Brand: DPA
• Coil Voltage: 277 V AC 60 HZ
• Certifications: CSA,UL Recognized
• Contact Rating: 30 A
• Number of Poles: 2 Pole
• Number of Phases: 1 Phase
• Line Rated Current: 30 A
• Contact Configuration: 2 NO
• Manufacturer: Schneider Electric
• Application: HVAC, Food and Beverage, Data Center
• Enclosure: Open
• Phase: Single
• Terminal Connection: Quick Connect and Binder Head
• Standards: CSA; RoHS; UL Listed
• Maximum Voltage Rating: 600V AC
• Horsepower @ Single Phase - 120V AC: 2 hp
• Horsepower @ Single Phase - 240V AC: 5 hp
• Full Load Current - Inductive: 30 A
• Full Load Current - Resistive: 40 A
• Frequency: 60 Hz
• Nominal Coil Voltage @ 60Hz: 277V AC
• Locked Rotor Load: 180 A @ 277V AC
• Wire Termination Type: Quick Disconnect; Screw Clamp
• Height (in): 3.75
• Width (in): 2.37
• Length (in): 3
