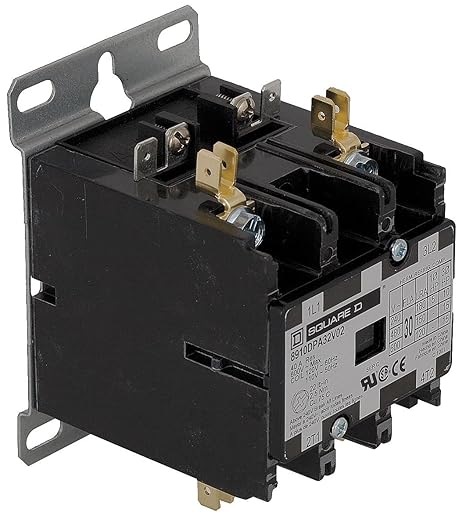

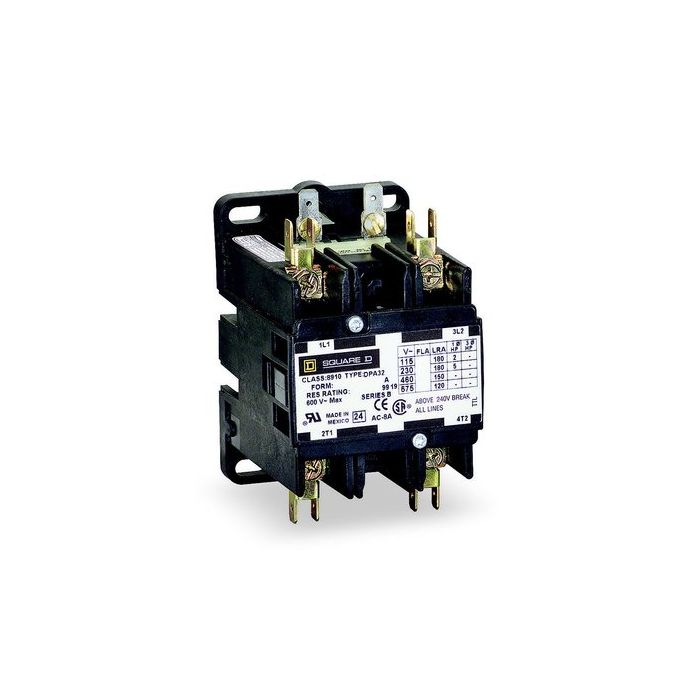

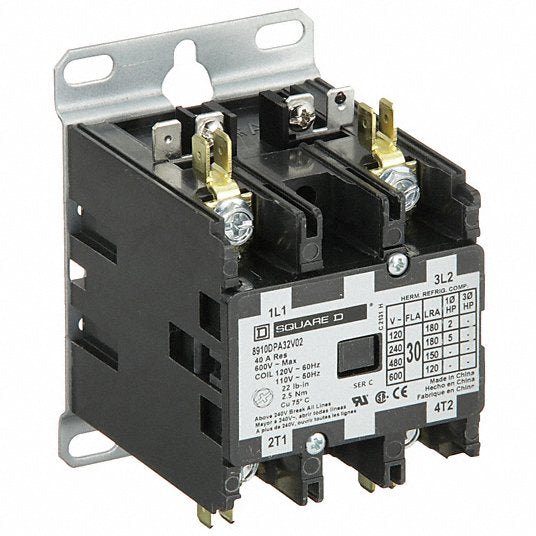

SQUARE D 8910DPA32V02 Definite Purpose Contactor 120V 30A 2P

Product Description

The Square D 8910DPA32V02 definite purpose contactor is designed for controlling electrical circuits in heating, air conditioning, and refrigeration systems. It features a current rating of 30A and operates at a voltage of 600V. This 2-pole contactor has a coil voltage of 110/120V, open-type enclosure, and quick connect terminals.

• 30A, 600V, 2-pole with 110/120V coil voltage
• Designed for HVAC applications
• Quick connect terminals for easy installation

Product Highlights

The 8910DPA32V02 is built for reliable performance in various HVAC applications. It can handle resistive ratings up to 40A and is UL and CSA approved.

Product Information

Standard Information

• Brand: Square D
• MPN: 8910DPA32V02

Technical Specifications

• Poles: 2
• Ampere: 30
• Resistive Current: 40 Ampere
• Coil Voltage: 110V at 50Hz, 120V at 60Hz
• Enclosure: Open
• Approval: UL, CSA, CE
• Series: 8910 Series Type
• Phase: Single
• Main Pole Contact Form: 2NO
• Full Load Current - Inductive: 30 A
• Full Load Current - Resistive: 40 A
• Frequency: 50/60 Hz
• Maximum Voltage Rating: 600V AC
• Locked Rotor Load: 120 A @ 575V AC; 150 A @ 460V AC; 180 A @ 277V AC
• Wire Termination Type: Quick Disconnect; Screw Clamp
• Contactor Frame Size: Standard
• NEMA Enclosure Rating: No Enclosure
• Overall Height: 2.31 in
• Overall Width: 2.37 in
• Overall Depth: 2.9 in
• Mounting Hole Diameter: 0.2 in
• Mounting Hole Distance - Height: 3.25 in
• Mounting Hole Distance - Width: 2 in
• Standards: CSA; RoHS; UL Listed
• Amperage: 30A
• Voltage: 120V
• Mounting Type: Panel
• Contactor Type: Definite Purpose
