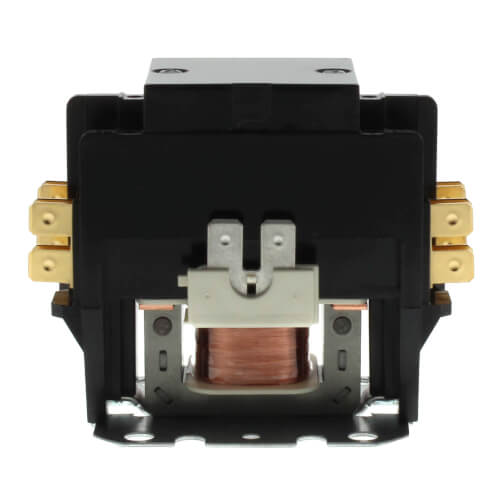

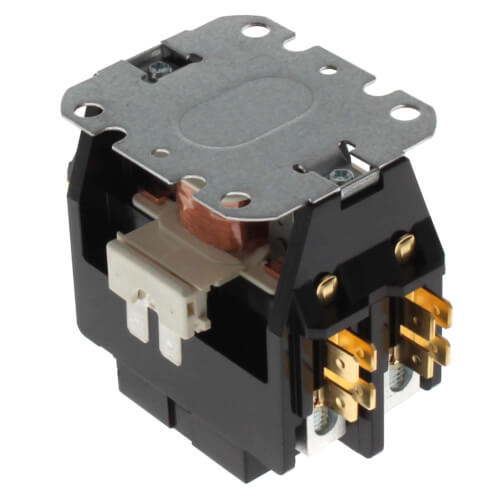

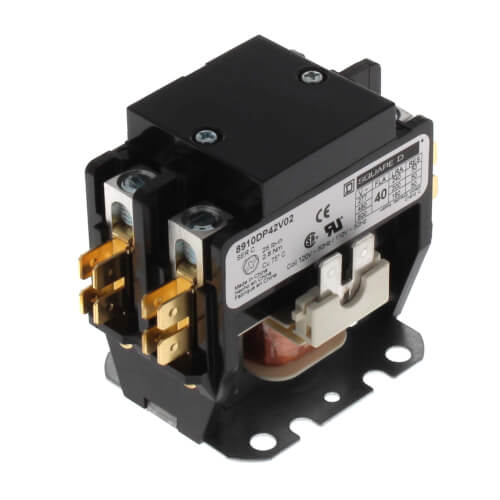

Square D 8910DP42V02 Definite Purpose Contactor 40 Amp 2-Pole 120 VAC Coil Non-Reversing

Product Description

The Square D 8910DP42V02 is a 2-pole definite purpose contactor designed to support a variety of industrial applications, including heating, air conditioning, and refrigeration systems. Characterized by its robust build and precise functionality, the device ensures optimal performance in demanding settings.

• Rated for up to 40 Amps inductive and 50 Amps resistive loads.
• Features a 110/120 VAC coil, operational at both 50 and 60 Hz.
• Compact dimensions provide an easy fit in limited spaces.

Product Highlights

This definite purpose contactor offers straightforward wiring and installation processes with reliable connections and is well-suited for specific applications where durability and efficacy are required. Its design includes a non-replaceable coil available in varying voltage ratings, enhancing its compatibility with multiple setups.

Product Information

Standard Information

• Brand: Square D
• Type: Definite Purpose Contactor

Technical Specifications

• Voltage: 600 Volt
• Amperage: 40 Amp
• Coil Voltage: 120 V AC 60 Hz, 110 V AC 50 Hz
• Dimensions: 3.32 inches wide by 2.45 inches tall
• Certifications: CSA, UL Recognized
