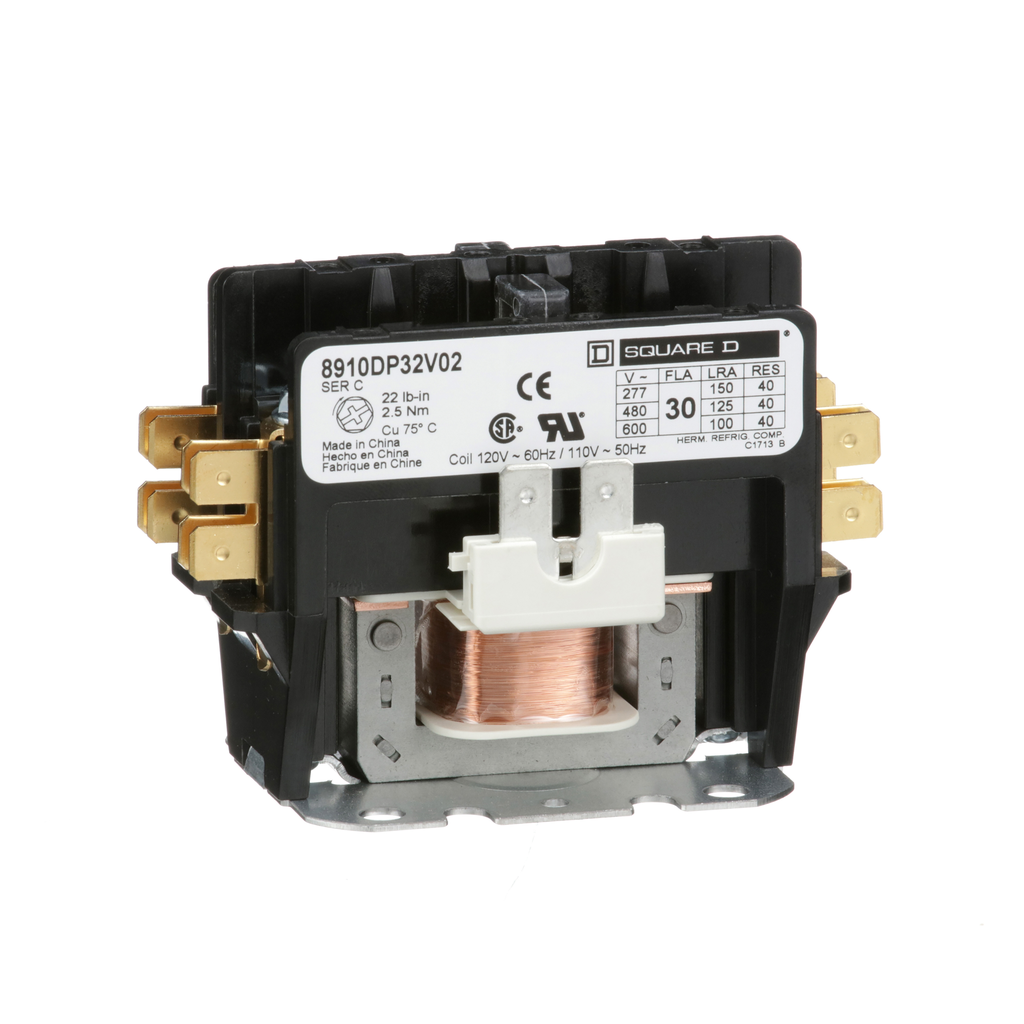

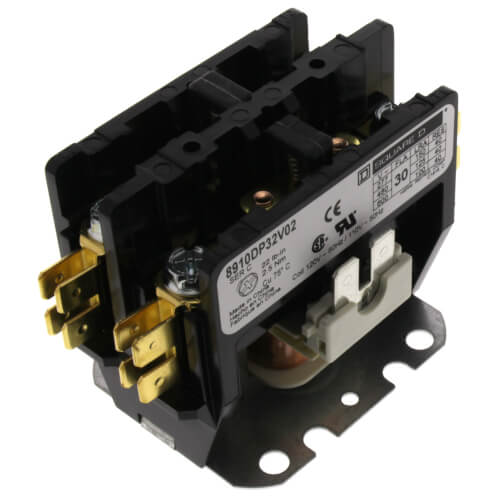

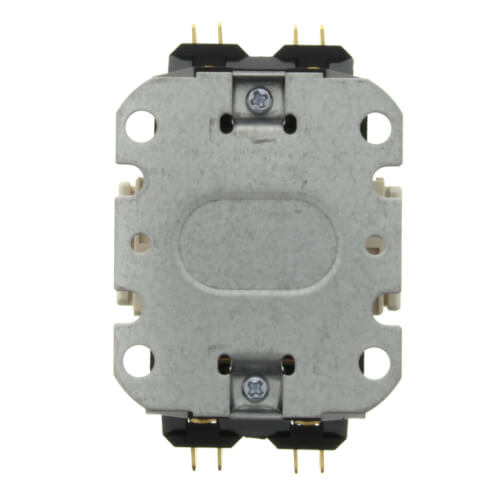

Square D 8910DP32V02 110/120 VAC 30 Amp 2-Pole 2NO NEMA 1 Non-Reversing Definite Purpose Contactor

Product Description

The Square D 8910DP32V02 is a definite purpose magnetic contactor suitable for heating, air conditioning, and refrigeration applications. This contactor operates at a voltage of 110/120 VAC with a full load rating of 30 amperes. With a resistive rating of 40 amperes, it can manage loads of up to 50 horsepower at 600 VAC. The coil is non-replaceable and is available in multiple voltage options. This contactor features straight-through wiring and dimensions of two inches by three point thirty-two inches, with a height of two point forty-five inches. It meets UL and CSA certification standards.

• Designed for heating and cooling applications
• Full load rating of thirty amperes
• UL Listed and CSA Certified

Product Highlights

This contactor is engineered for reliable and efficient operation in various HVAC and refrigeration systems.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 8910DP32V02
• Voltage: 110/120 VAC
• Amperage: 30 Amp
• Number of Poles: 2 Pole
• Height: 2.45 inches
• Width: 3.32 inches
• Depth: 2.00 inches
• Certifications: UL, CSA
• Coil Voltage: 120 V AC 60 HZ-110 V AC 50 HZ
