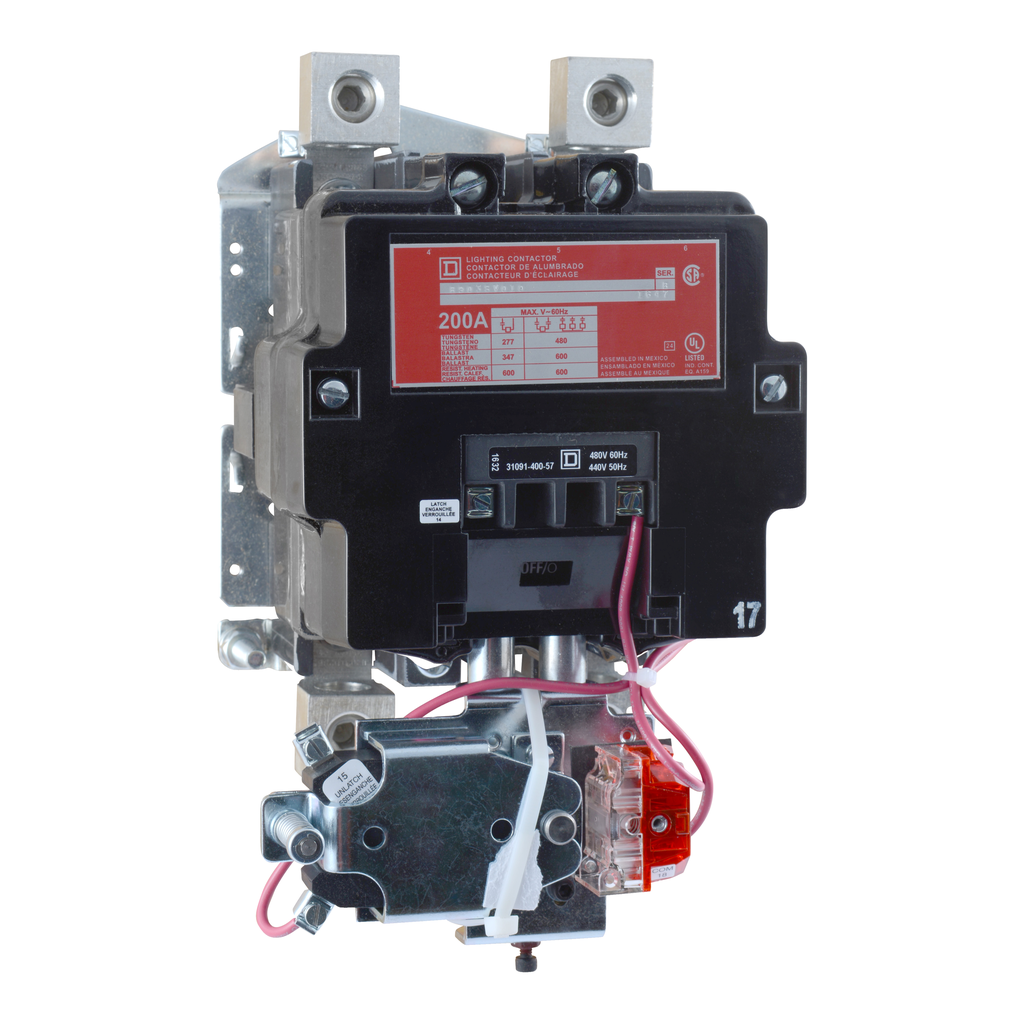

Square D 8903SVO10V02 Contactor, Type S, 200A 110/120VAC Coil

Product Description

Square D 8903SVO10V02 is a lighting contactor designed for effective control in lighting applications. This mechanically held device can switch up to 200 amperes. It contains two poles and two normally open contacts. The device operates with a coil voltage of 110/120 VAC at 50/60 Hz. The contactor measures nine point fourteen inches tall, six inches wide, and six point seventy-two inches deep.

• Mechanically held lighting contactor
• Rated for 200 amperes
• UL Listed and CSA Certified

Product Highlights

This contactor is suitable for a range of lighting control applications, providing reliable performance with interchangeable coils available for various voltages up to six hundred VAC.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 8903SVO10V02
• Current Rating: 200 Amp
• Number of Poles: 2 Pole
• Coil Voltage: 120@60Hz to 110@50Hz VAC
• Depth: 6.72 inches
• Width: 6 inches
• Height: 9.14 inches
• Certifications: CSA, UL Listed
