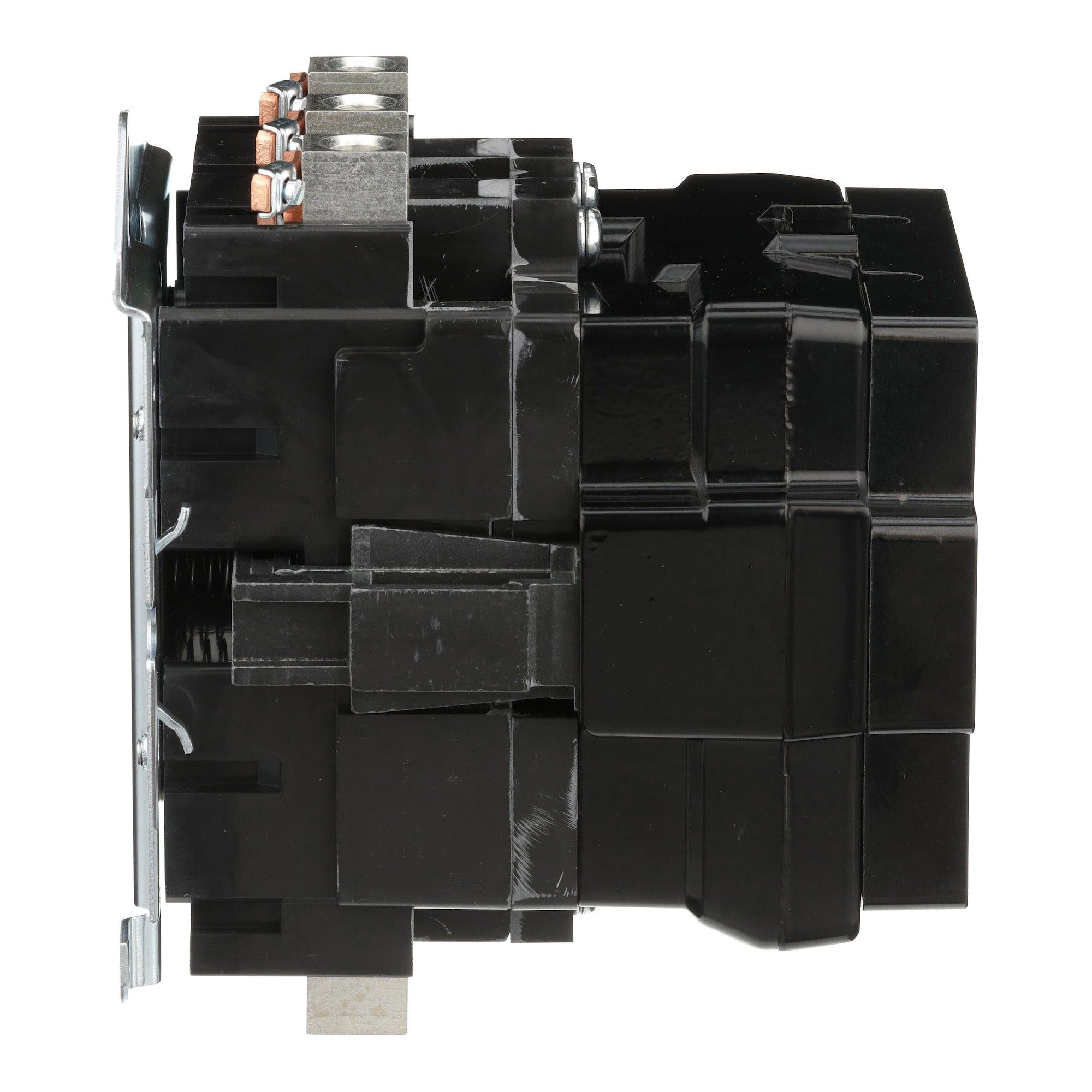

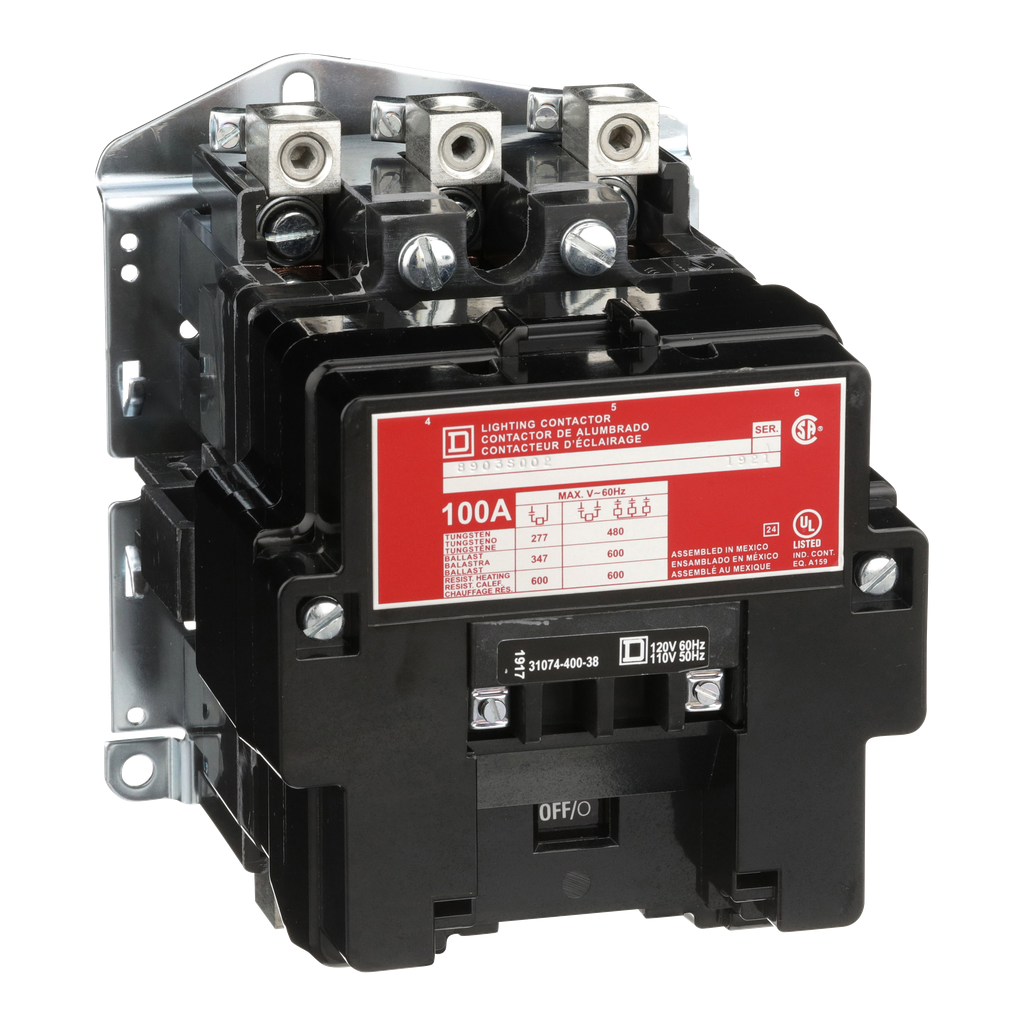

Square D 8903SQO2V02 110/120 VAC 100 Amp 3-Pole Open Type Electrically Held Lighting Contactor

Product Description

The Square D 8903SQO2V02 is an electrically held lighting contactor designed for effective lighting control in various applications. This device can handle up to 100 amperes and operates at 110/120 VAC with a frequency of 50/60 Hz. It features three normally open contacts and is compatible with a variety of interchangeable operating coils, supporting voltages up to 600VAC.

• Electrically held with three pole design
• Supports multiple voltage configurations
• UL Listed and CSA Certified for safety

Product Highlights

This contactor is suitable for light control installations within industrial and commercial settings. Its open design allows for easy access to the coils and contacts for maintenance or replacement.

Product Information

Standard Information

• Catalog Number: 8903SQO2V02
• Brand: Square D

Technical Specifications

• Coil Voltage: 120@60Hz / 110@50Hz VAC
• Current Rating: 100 Amp
• Number of Poles: 3 Pole
• Height: 7.26 inches
• Width: 5.45 inches
• Depth: 6.50 inches
• Country of Origin: Mexico
• Warranty Length: 18 months
