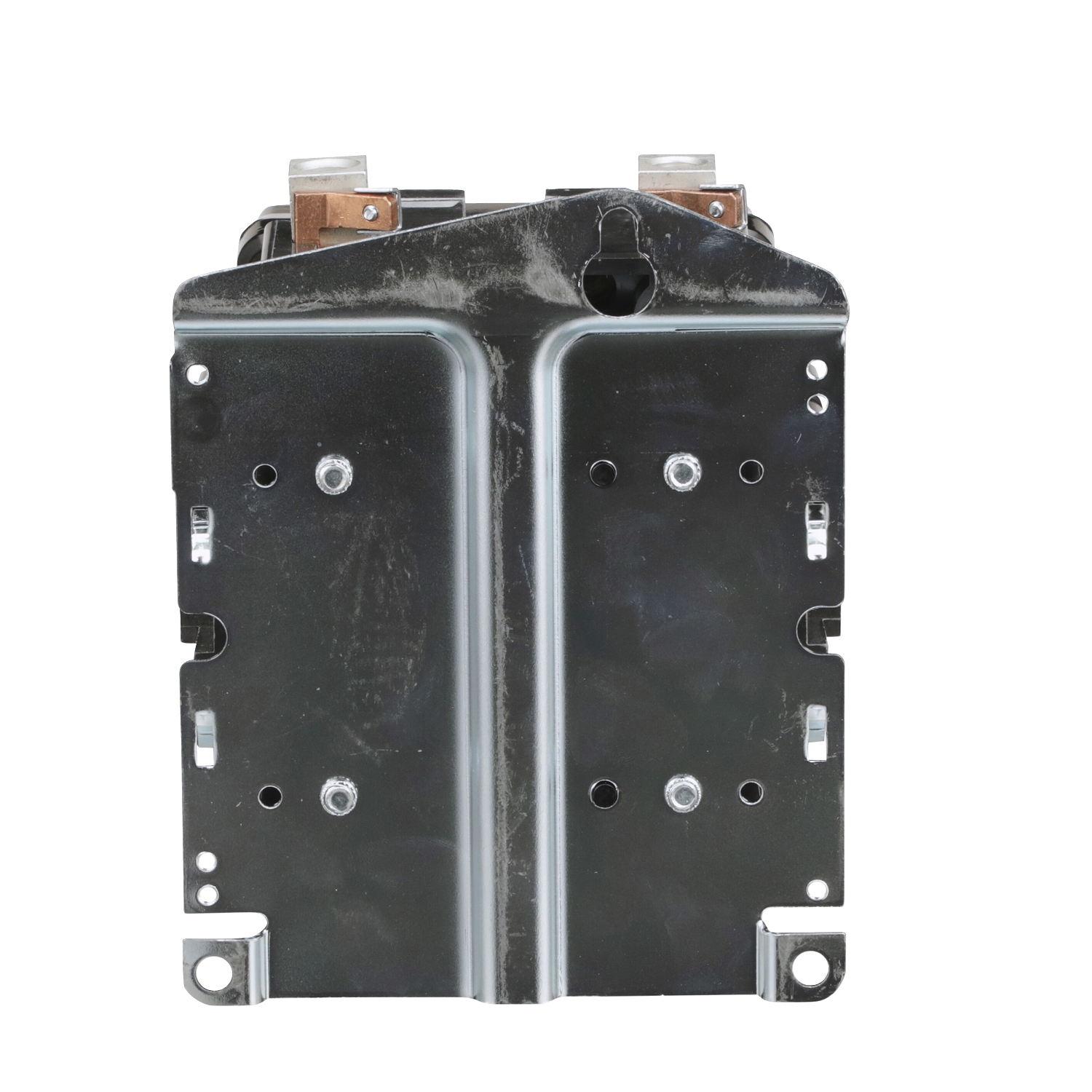

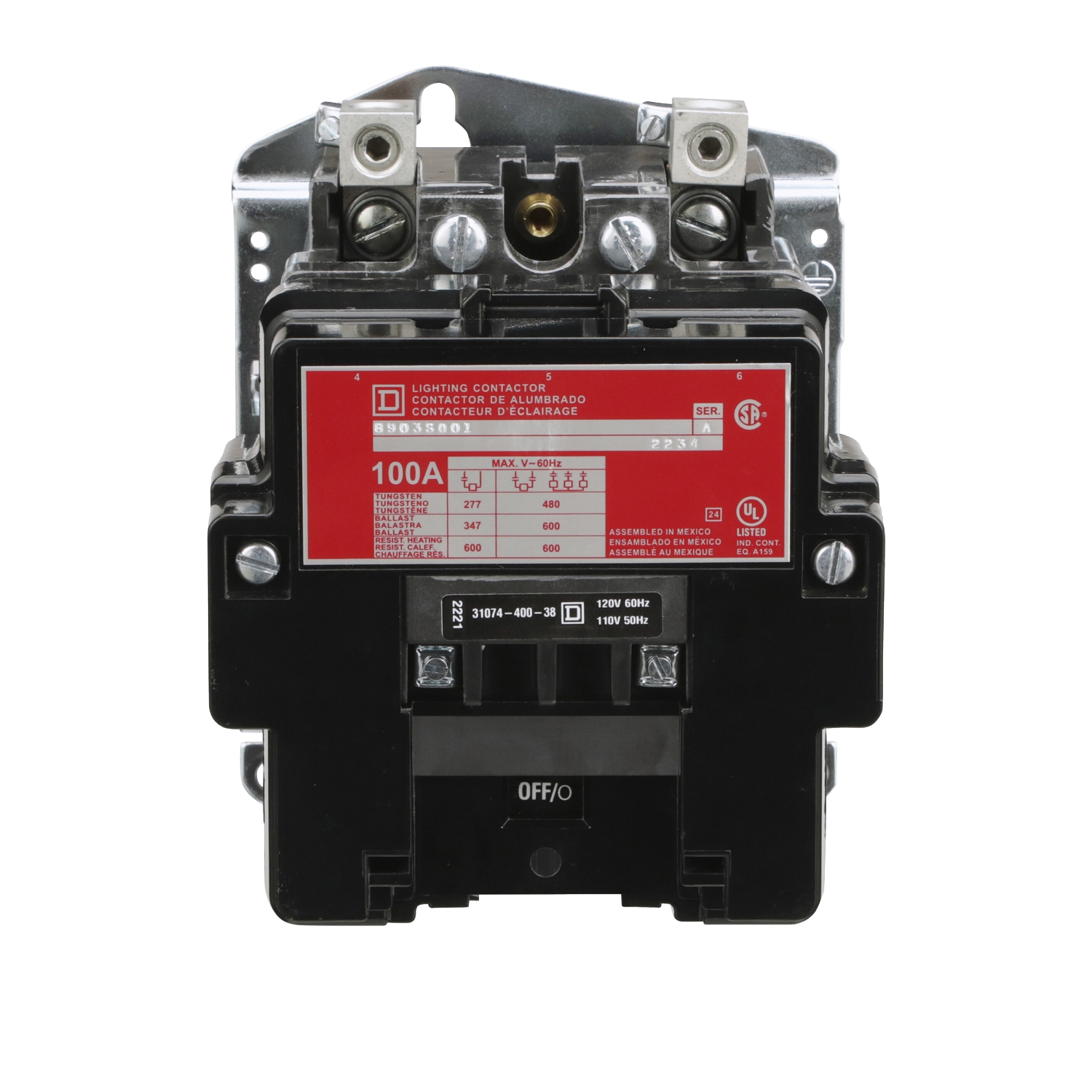

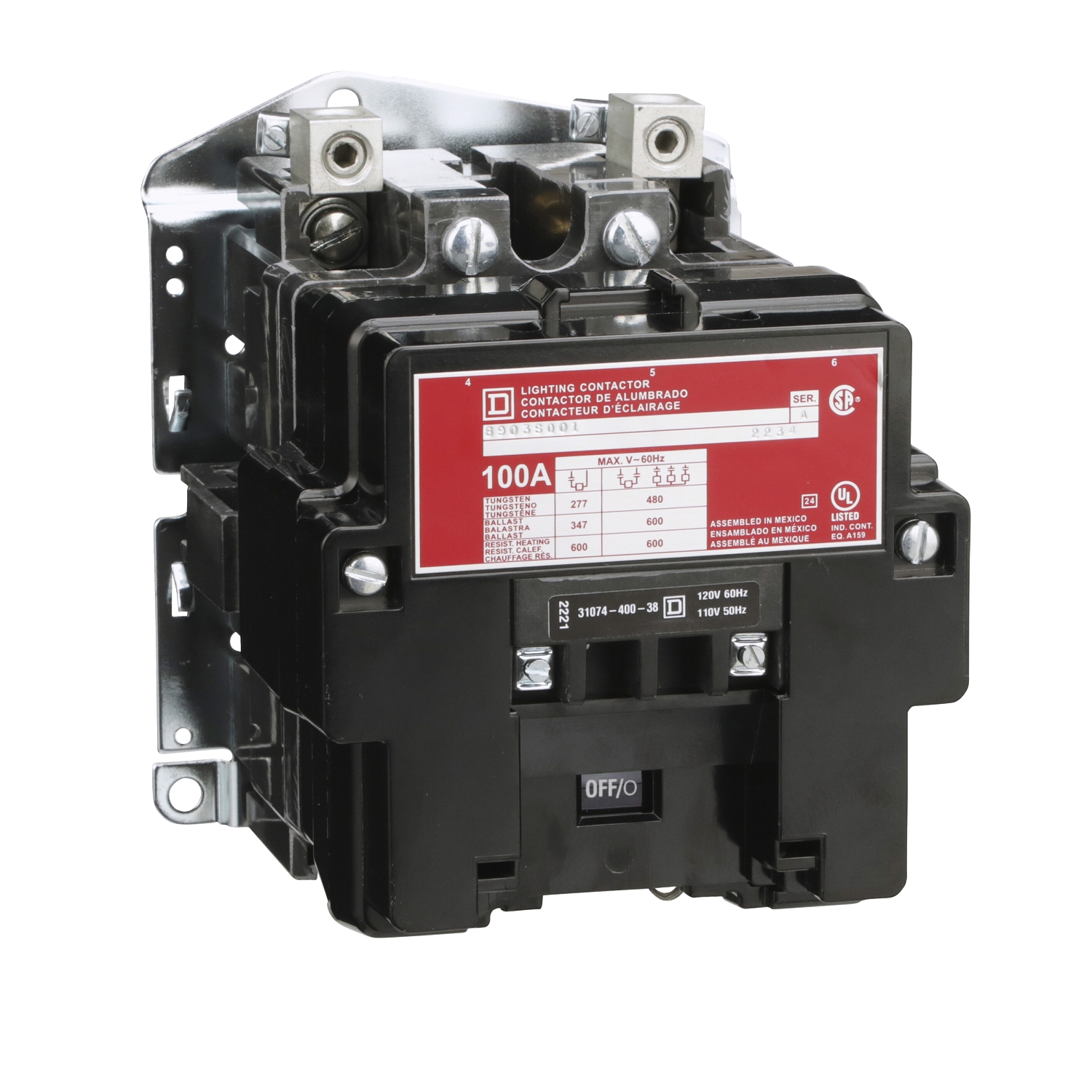

Square D 8903SQO1V02 110/120 VAC 100 Amp 2-Pole Open Type Electrically Held Lighting Contactor

Product Description

The Square D 8903SQO1V02 is an electrically held lighting contactor designed to control lighting in various applications. This contactor can switch up to 100 amperes and features a two-pole design with two normally open contacts. It is supplied with a 110/120 VAC interchangeable operating coil, suitable for both 50 and 60 Hz. This contactor is open-style and can accommodate various enclosure types, making it versatile for different installation needs.

• Type: Electrically Held Lighting Contactor
• Current Rating: 100 Amperes
• Coil Voltage: 110/120 VAC

Product Highlights

The Square D 8903SQO1V02 is suitable for applications in residential and commercial lighting control. It allows for easy replacement of coils and contacts.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: 8903SQO1V02
• Country of Origin: Mexico
• Line Rated Current: 100 A
• Control Type: No control units
• Electrical Connection: Lugs
• Dimensions: 7.26 inches tall, 5.45 inches wide, 6.50 inches deep
• Coil Voltage: 120 VAC at 60 Hz or 110 VAC at 50 Hz
• Poles Description: 2 Pole
• Certification: UL Listed, CSA Certified
