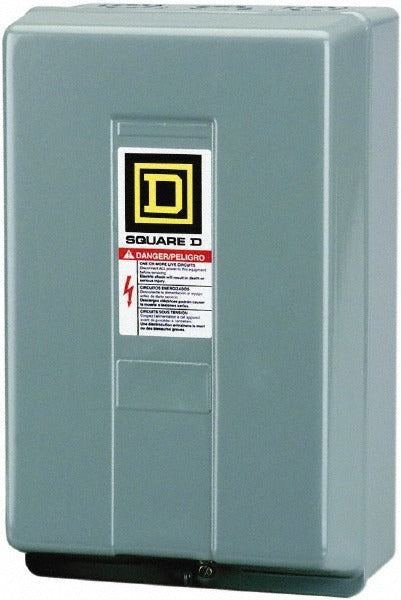

Square D 8903SPG2V02 Lighting Contactor 60A 3 Pole

Product Description

The SQUARE D 8903SPG2V02 is a 3-pole, electrically held lighting contactor rated for 60 amps (Tungsten load) and designed for use in commercial and industrial lighting control applications. It operates on a control circuit voltage of 110 VAC at 50 Hz or 120 VAC at 60 Hz, making it compatible with standard North American electrical systems as well as international installations. Housed in a NEMA 1 enclosure, this contactor is built for indoor environments where protection from dust and limited contact is required. Licensed electricians and electrical contractors install this device as part of centralized lighting control panels and branch circuit management systems.

This contactor is suited for commercial buildings, industrial facilities, and institutional spaces where large banks of lighting circuits require reliable switching. The electrically held design means the contactor remains energized as long as control voltage is applied, which is standard practice for lighting panel installations where continuous circuit engagement is needed. Typical applications include office buildings, warehouses, retail spaces, and outdoor area lighting panels installed indoors. The 3-pole configuration handles three-phase or multi-circuit single-phase lighting loads in a single device.

Key Features

• Electrically held operation maintains contact engagement while control voltage is present
• 60-amp Tungsten load rating supports incandescent and high-inrush lighting circuits
• 3-pole design controls three separate lighting circuits simultaneously
• NEMA 1 enclosure rated for clean indoor installations
• Dual-frequency control circuit: 110 VAC at 50 Hz and 120 VAC at 60 Hz
• UL Listed, CSA certified, and RoHS compliant

Compatibility

Designed as an OEM-style replacement or direct-install electrically held lighting contactor for commercial and industrial lighting control panels requiring a NEMA 1 enclosed, 3-pole, 60-amp contactor with 120 VAC control voltage.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit panel before mounting or wiring the contactor. Verify that the control circuit voltage source matches the contactor coil rating before energizing. Do not exceed the rated amperage or use this contactor on load types outside its published ratings.
