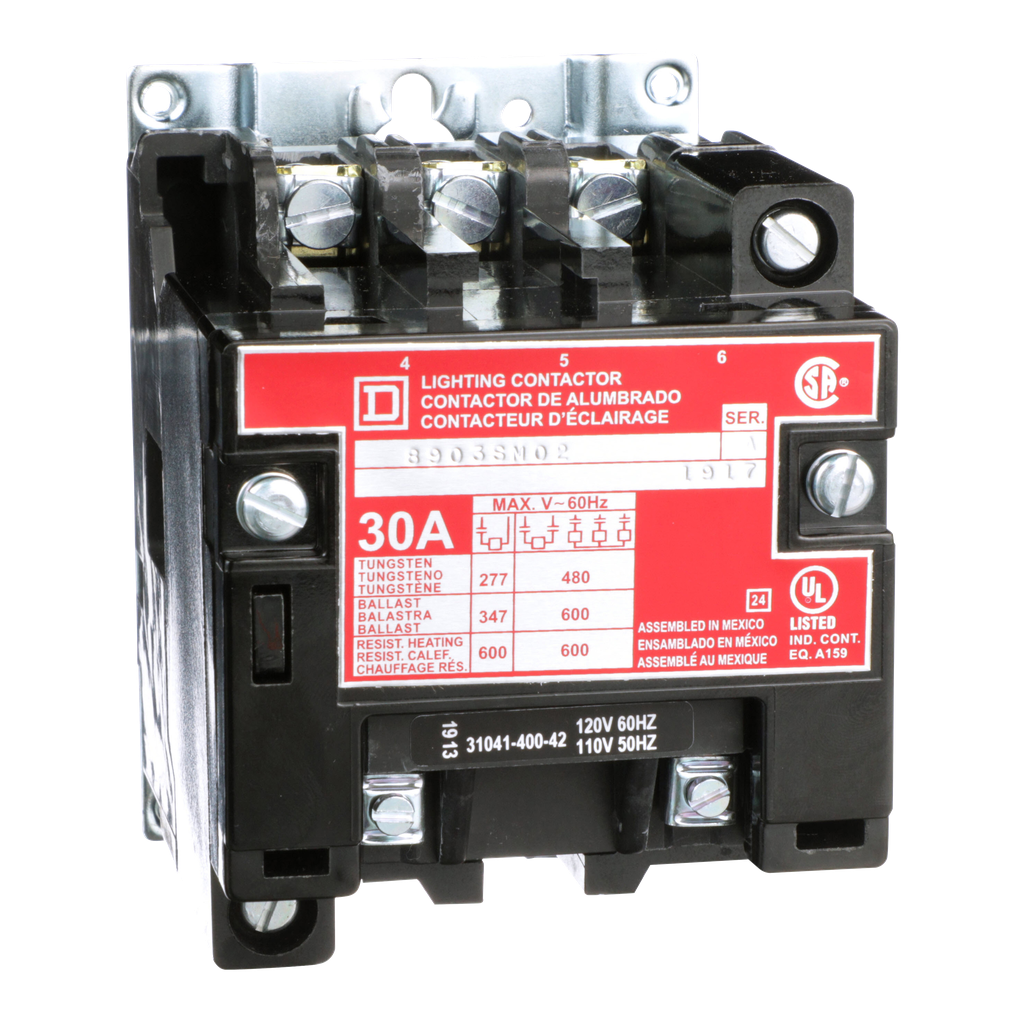

Square D 8903SMO2V02 110/120 VAC 30 Amp 3-Pole Open Type Electrically Held Lighting Contactor

Product Description

The Square D 8903SMO2V02 is an electrically held lighting contactor designed for control in lighting applications. This contactor operates at 110/120 VAC and can switch 30 amperes. It features three normally open contacts and is capable of working with interchangeable coils across a range of voltages up to 600VAC.

• Electrically held, 30 amp capacity
• UL Listed and CSA Certified
• Open type device for easy replacement of coils and contacts

Product Highlights

This product is suitable for industrial automation and control. Ideal for both lighting control and motor control applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: 8903SMO2V02
• Catalog Number: 8903SMO2V02
• Current Rating: 30 A
• Coil Voltage: 120@60Hz/110@50Hz VAC
• Number of Poles: 3 Pole
• Height: 3.5 inches
• Width: 3.22 inches
• Depth: 4.22 inches
• Country of Origin: Mexico
• Warranty Length: 18 months
