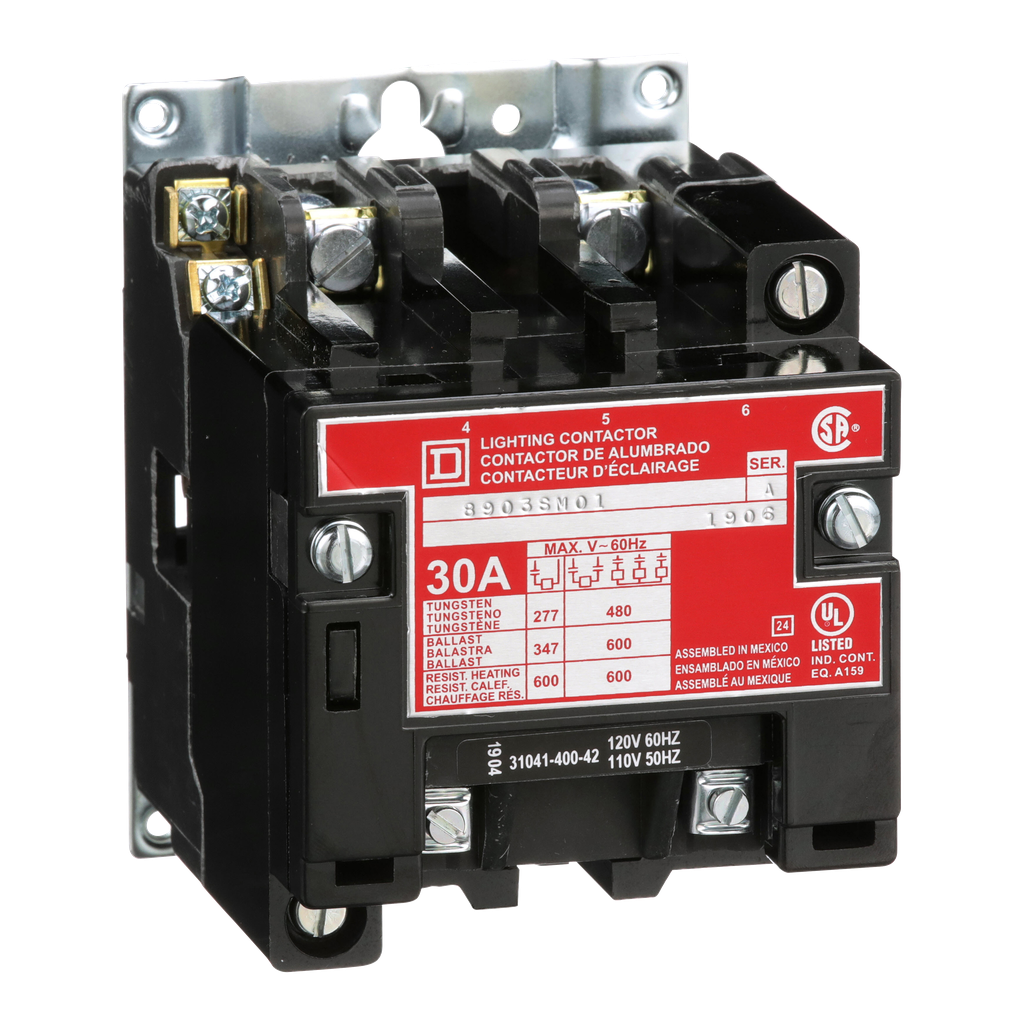

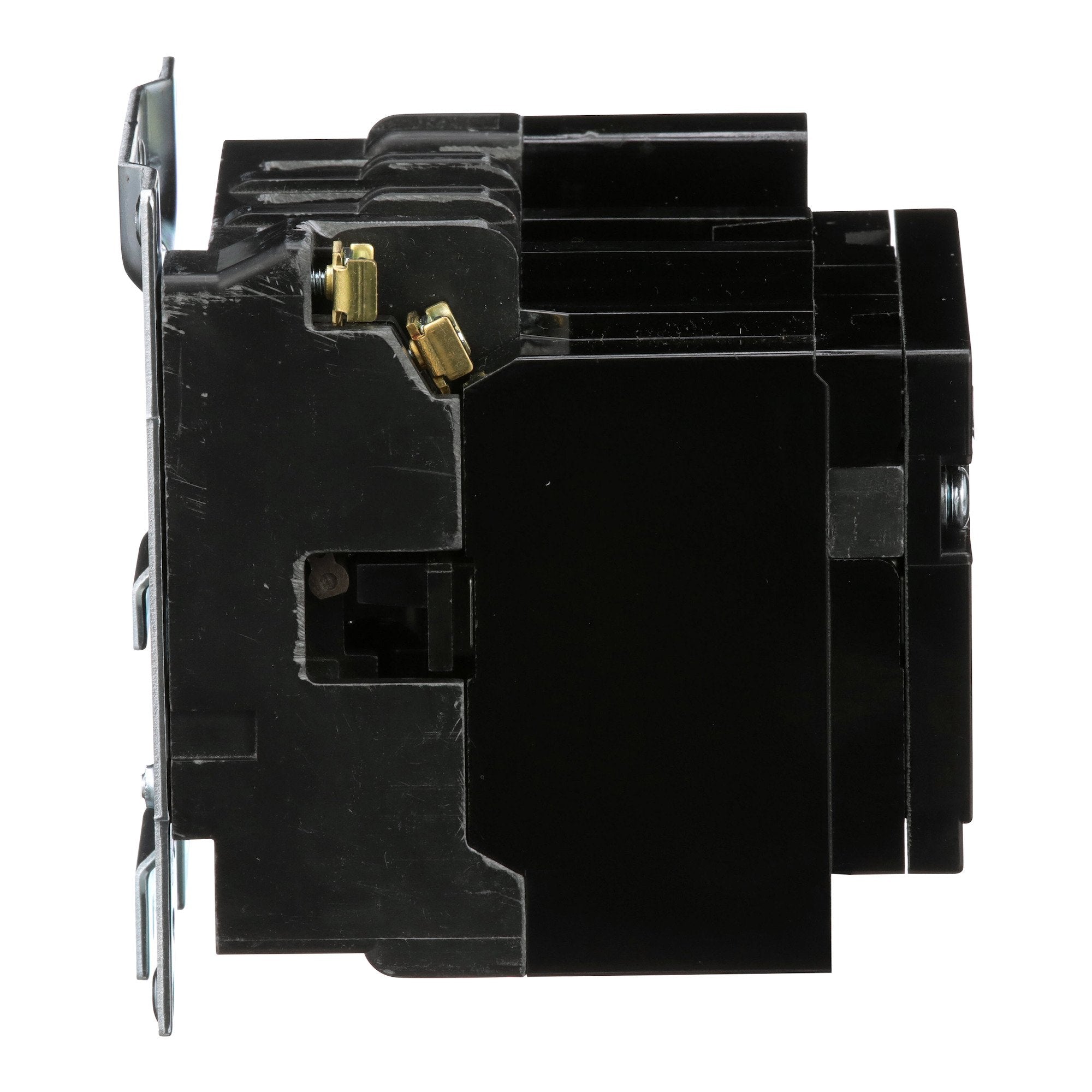

Square D 8903SMO1V02 110/120 VAC 30 Amp 2-Pole Open Type Electrically Held Lighting Contactor

Product Description

The Square D 8903SMO1V02 is a lighting contactor designed for lighting control applications. This electrically held lighting contactor is rated for 30 amperes and features two normally open contacts. It includes a 110/120 VAC operating coil for versatility. The contactor is of open type and allows for a wide range of enclosure options, making it suitable for diverse settings.

• Two pole configuration with 30 amp contact rating.
• Interchangeable operating coils available up to 600VAC.
• UL Listed and CSA Certified for safety.

Product Highlights

This contactor is ideal for use in industrial and commercial environments where reliable lighting control is needed.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: 8903SMO1V02
• Coil Voltage: 110/120VAC, 50/60Hz
• Number of Poles: 2
• Current Rating: 30 Amp
• Dimensions: 3.50 inches tall, 3.22 inches wide, 4.22 inches deep
• Certifications: UL Listed, CSA Certified
• Warranty Length: 18 months
• Country of Origin: Mexico
