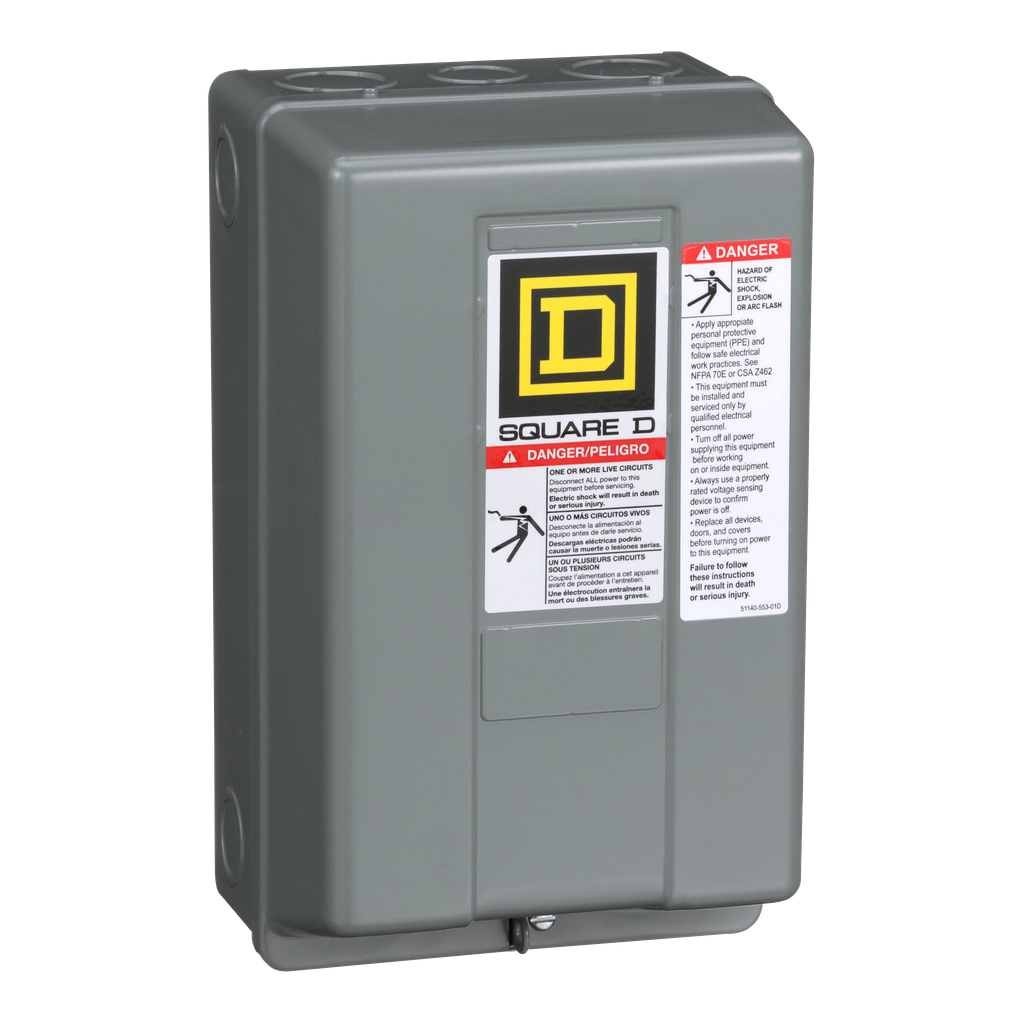

Square D 8903SMG2V02 Electrically Held Lighting Contactor 110/120 VAC 30 Amp 3-Pole NEMA 1

Product Description

The Square D 8903SMG2V02 is an electrically held lighting contactor designed for control applications. This contactor operates at 110/120 VAC with a current rating of 30 amperes. It features a NEMA 1 enclosure made of painted sheet steel. The device has three poles and includes three normally open contacts. The operating coil supports both fifty and sixty hertz frequencies. Additional coil options are available for voltages up to six hundred VAC. This product is designed for easy coil and contact replacement, enhancing maintenance efficiency.

• Rated for 30 amps with three NO contacts
• Compatible with 110/120 VAC operating voltages
• UL Listed and CSA Certified for safety

Product Highlights

Compact design facilitates installation while ensuring reliable performance in various lighting control applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 8903SMG2V02
• Coil Voltage: 120@60Hz/110@50Hz VAC
• Current Rating: 30 A
• Number of Poles: 3 Pole
• Height: 10 inches
• Width: 6 inches
• Depth: 5.28 inches
• Warranty Length: 18 months
