Product Description

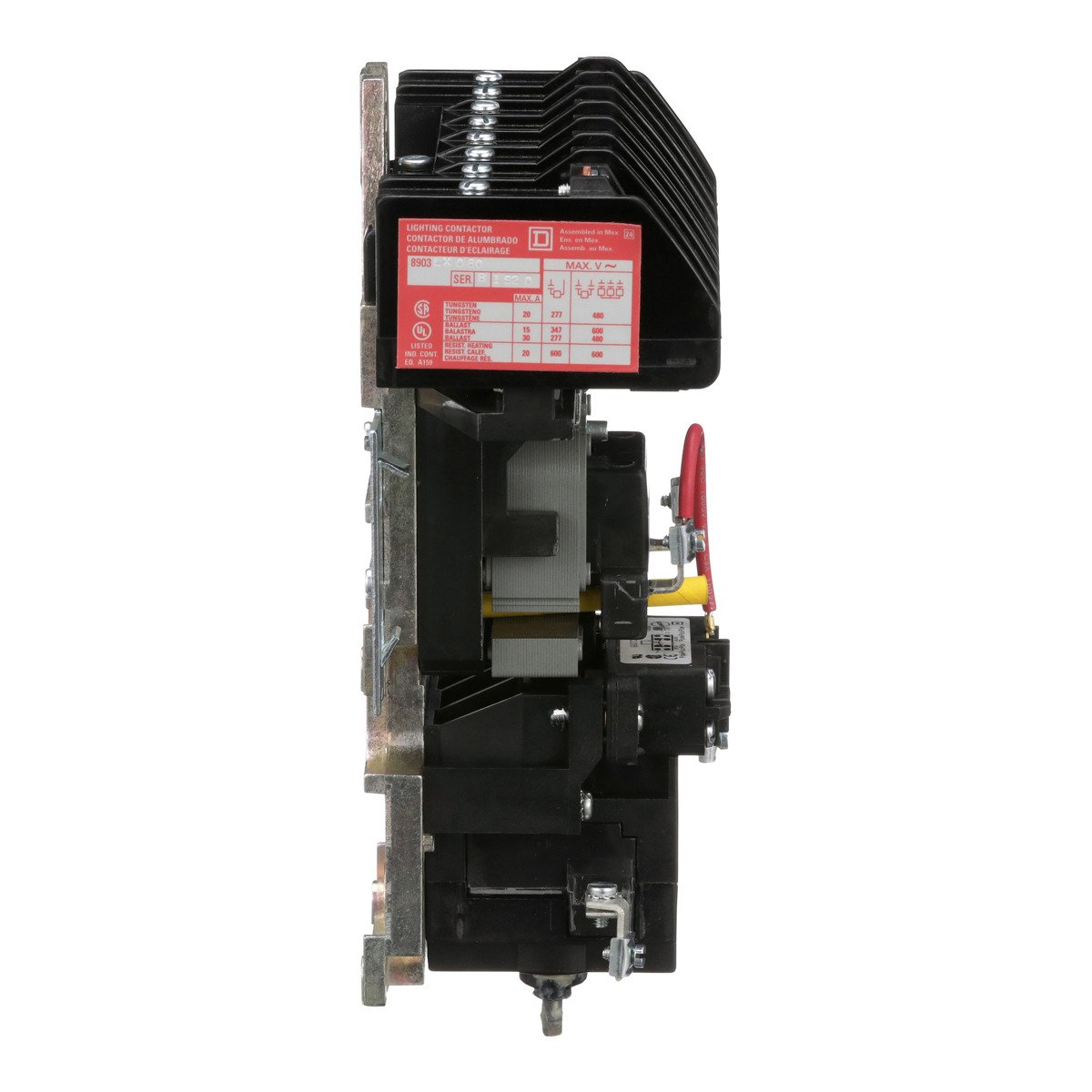

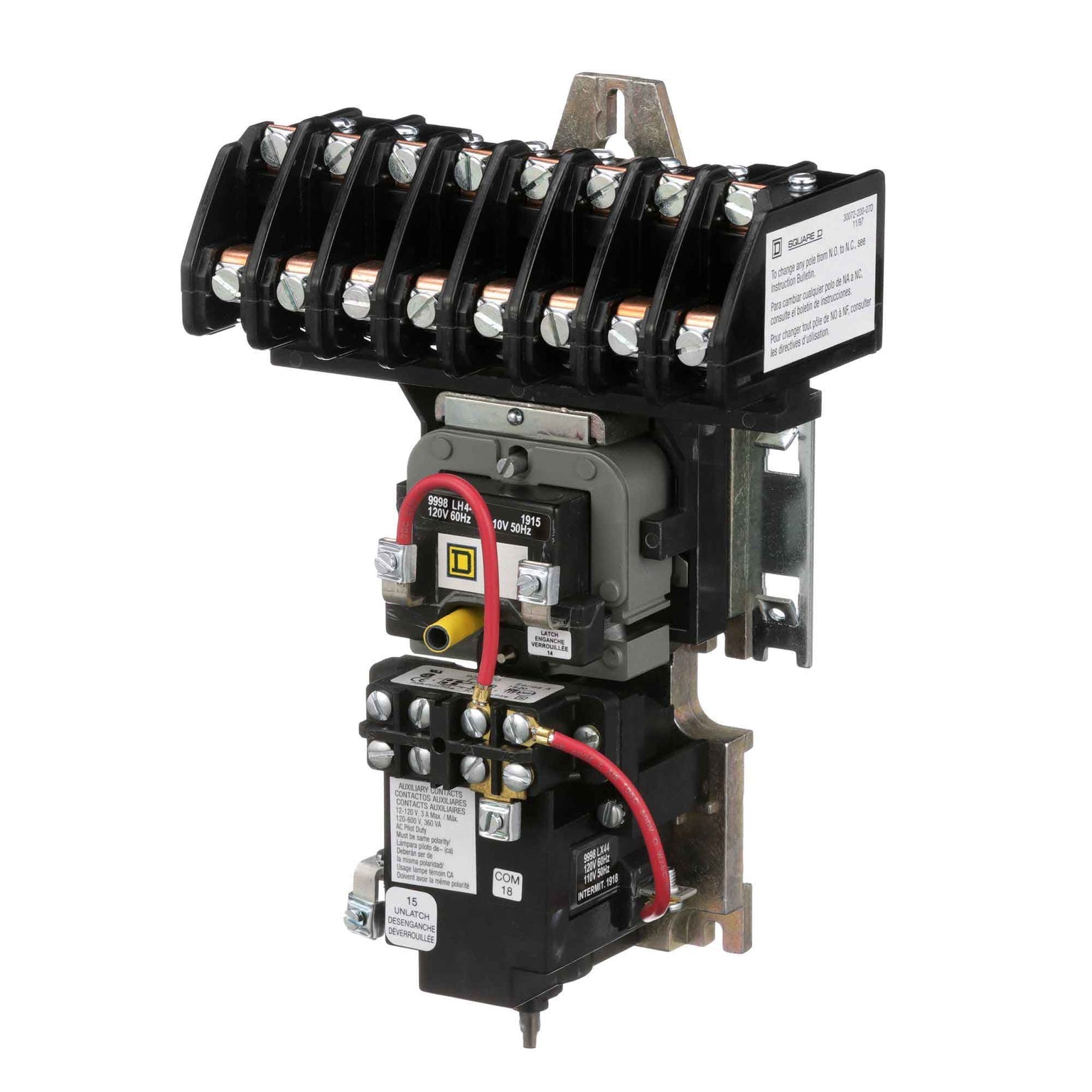

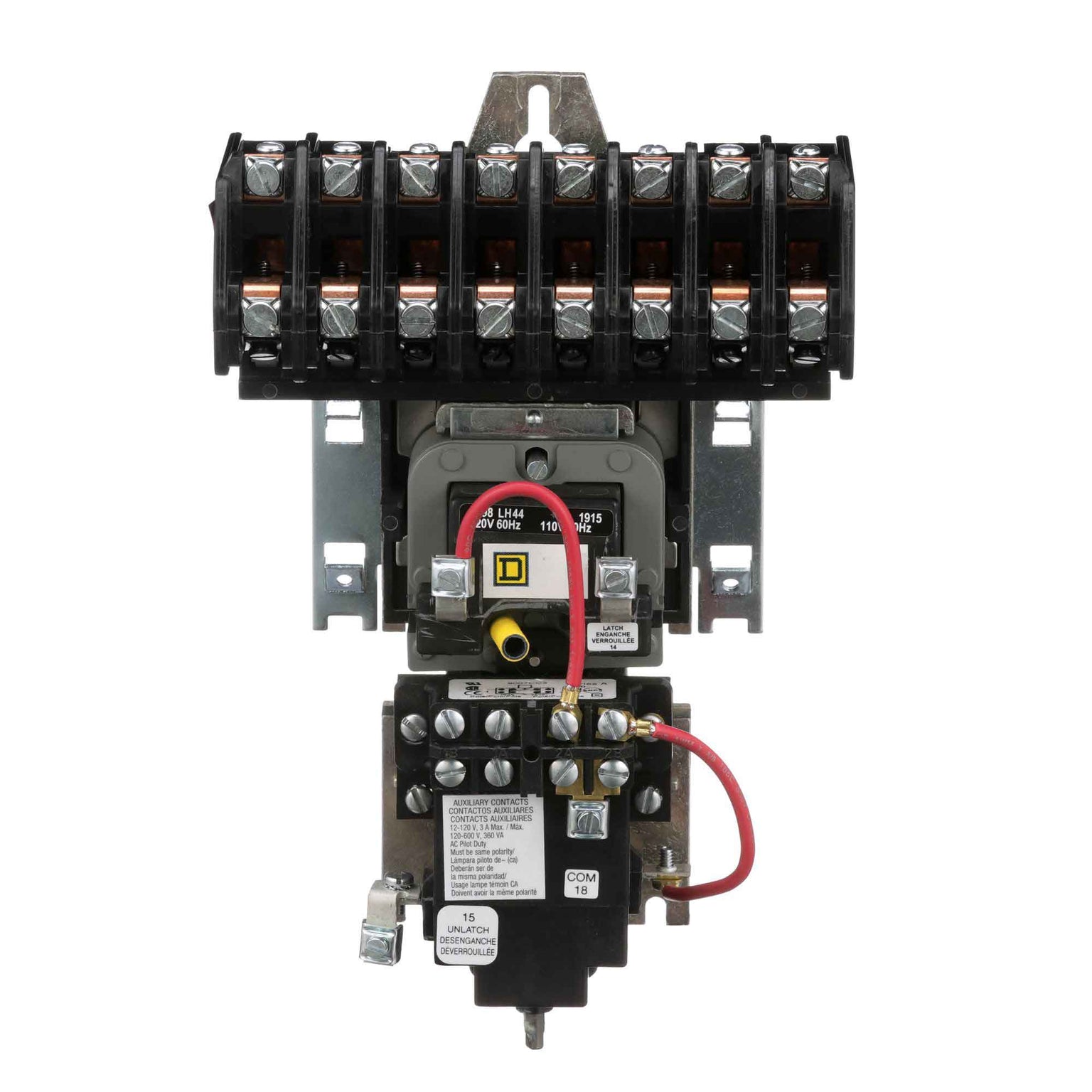

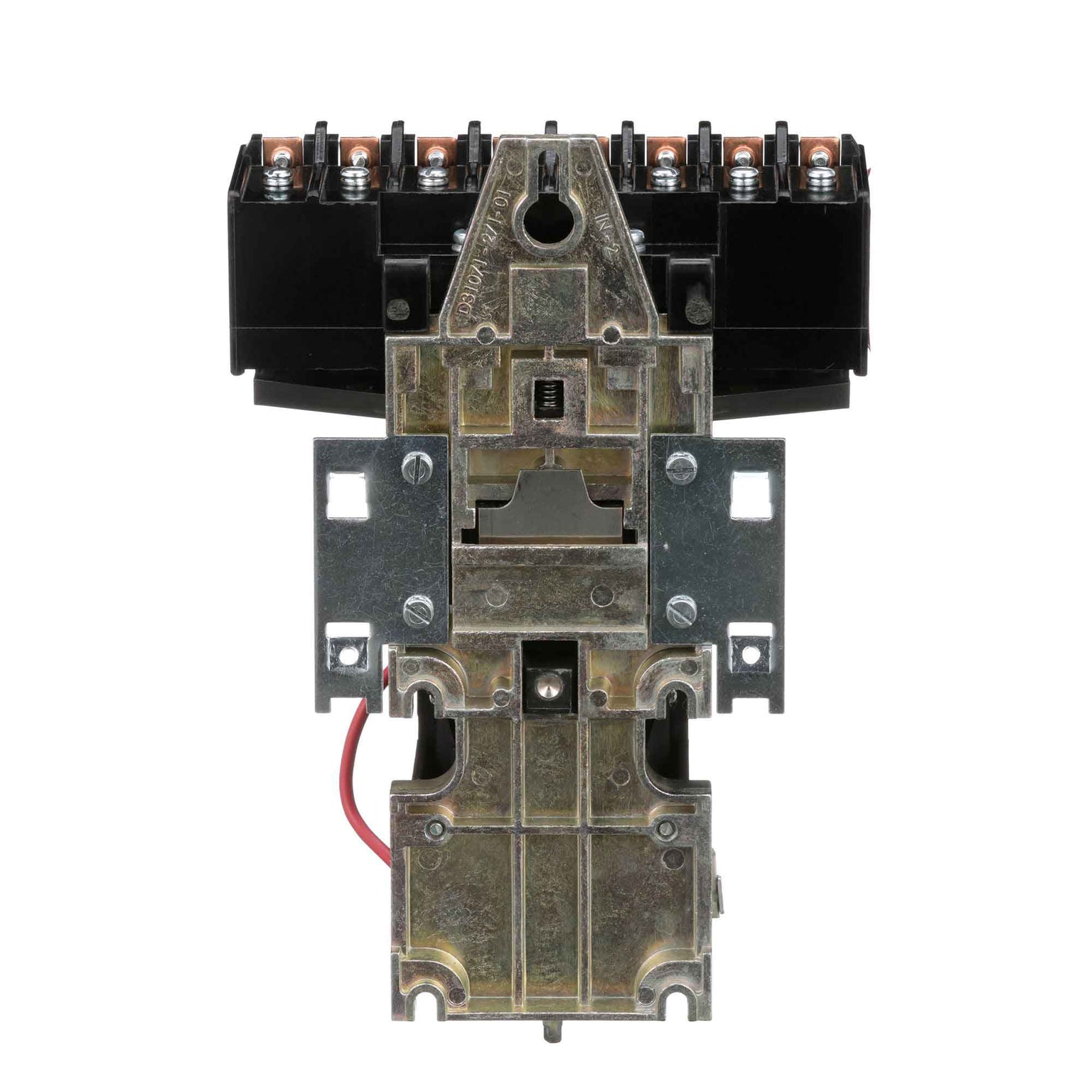

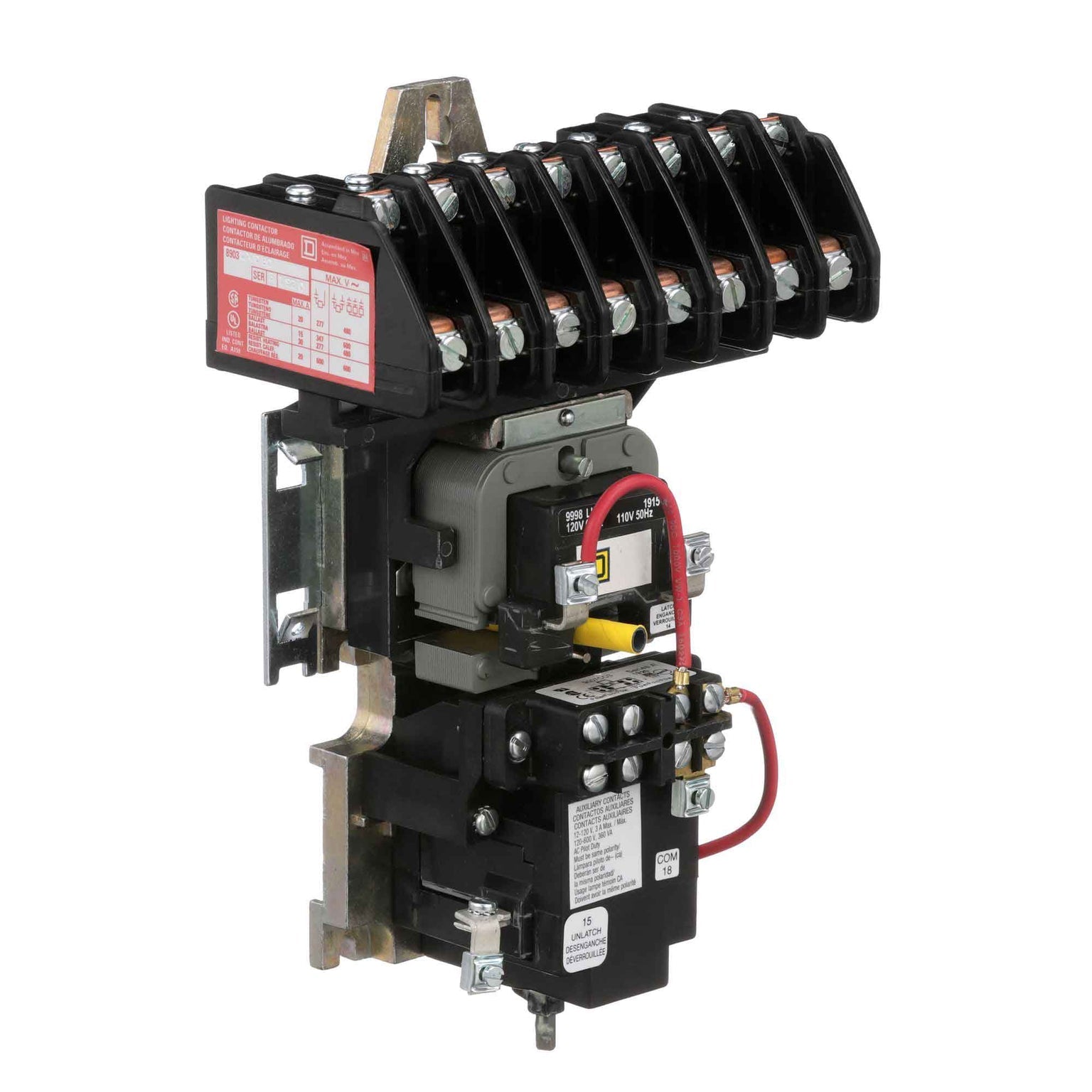

The Square D 8903LXO80V02 multipole lighting contactor is designed for lighting control applications. This mechanically held device can switch up to 30 A fluorescent and 20 A tungsten lighting loads. Contacts are field convertible from NO to NC. The 8-pole device has 8 NO contacts and is supplied with two operating coils, rated at 110/120 VAC 50/60 Hz.
- Mechanically held
- Can switch up to 30 A fluorescent and 20 A tungsten lighting loads
- Contacts are field convertible from NO to NC
Product Highlights
This Square D lighting contactor is UL Listed and CSA Certified. Coils and contacts are easily replaced.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: 8903LXO80V02
-
Country of Origin: Mexico
Technical Specifications
-
Type: Mechanically Held Lighting Contactor
-
Brand: Square D
-
Current: 20 Amp
-
Sub Brand: 8903LX
-
Applications: MECHANICALLY HELD
-
Coil Voltage: 110@50Hz/120@60Hz VAC
-
TC Connection: Screw-clamp terminals
-
Certifications: CSA,UL Listed
-
Contact Rating: 20-20 A TUNGSTEN-30-30 A FLUORESCENT
-
Control Voltage: 110 V AC 50 Hz;120 V AC 60 Hz
-
Number of Poles: 8 Pole
-
Line Rated Current: 20-20 A
-
Contact Configuration: 8 NO
-
Manufacturer: Schneider Electric
-
Voltage Rating: 600 VAC
-
Current Rating: 30 Ampere
-
Resistive Ampere: 30 Ampere (Fluorescent Lighting), 20 Ampere (Tungsten Lighting)
-
Auxiliary Contact: 8NO
-
Enclosure: Open
-
Approval: UL, CSA
-
Contact Type: Double Break Silver Cadmium Oxide
-
Electrical Connection Type: Screw Clamp Terminal
-
Hz [Specifications]: 50/60
-
Item [Specifications]: Mechanically Held Lighting Contactor
-
Features [Specifications]: Halogen free plastic parts product; Mercury Free; PVC Free; Green Premium product; Toxic Heavy Metal Free
-
Inrush VA [Specifications]: 180-180 VA 60 Hz; 170-170 VA 50 Hz; 25-25 VA 50/60 Hz
-
Standards [Specifications]: CSA, UL
-
Coil Volts [Specifications]: 120V AC
-
Control Type [Specifications]: No control units
-
Contactor Type [Specifications]: Mechanically Held
-
Current Rating [Specifications]: 20-20 A tungsten; 30-30 A fluorescent
-
Full Load Amps [Specifications]: 30 A
-
Control Circuit [Specifications]: Separate control circuit
-
Enclosure NEMA Rating [Specifications]: No Enclosure
-
Series: 8903LX
-
Mounting Type: Surface
-
Part Number: 8903LXO80V02
-
Family: Class 8903
-
Pole: 8
-
Amp: 30
-
Volt: 600
-
Phase: 3
-
Category: Contactors
-
Type LX: LX
-
Volts AC Control: 120
-
Family / Style: 8903
-
Poles: 8
-
Mounting: Surface
-
Amps: 30
-
Volts AC: 600
-
Standards: California Proposition 65
