Product Description

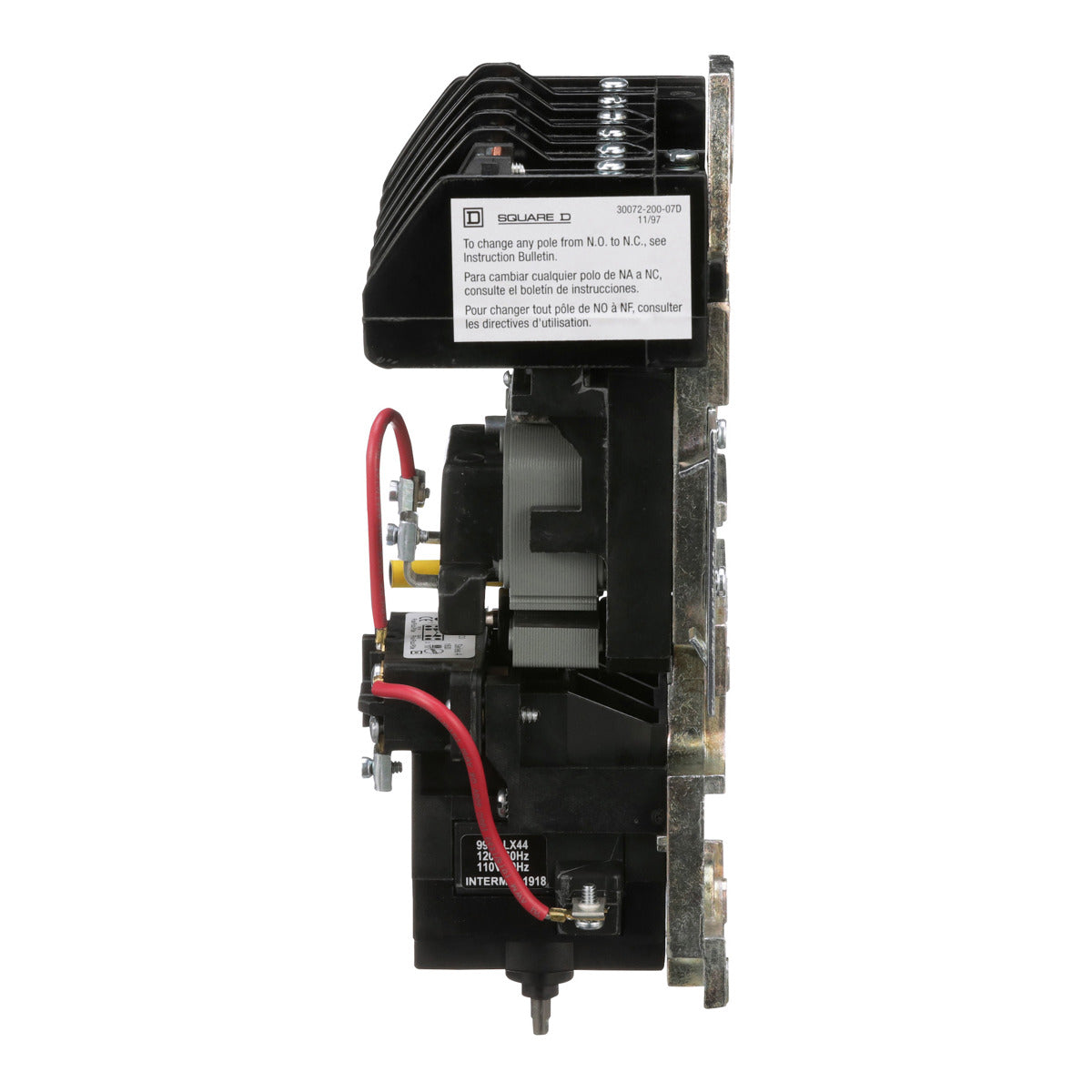

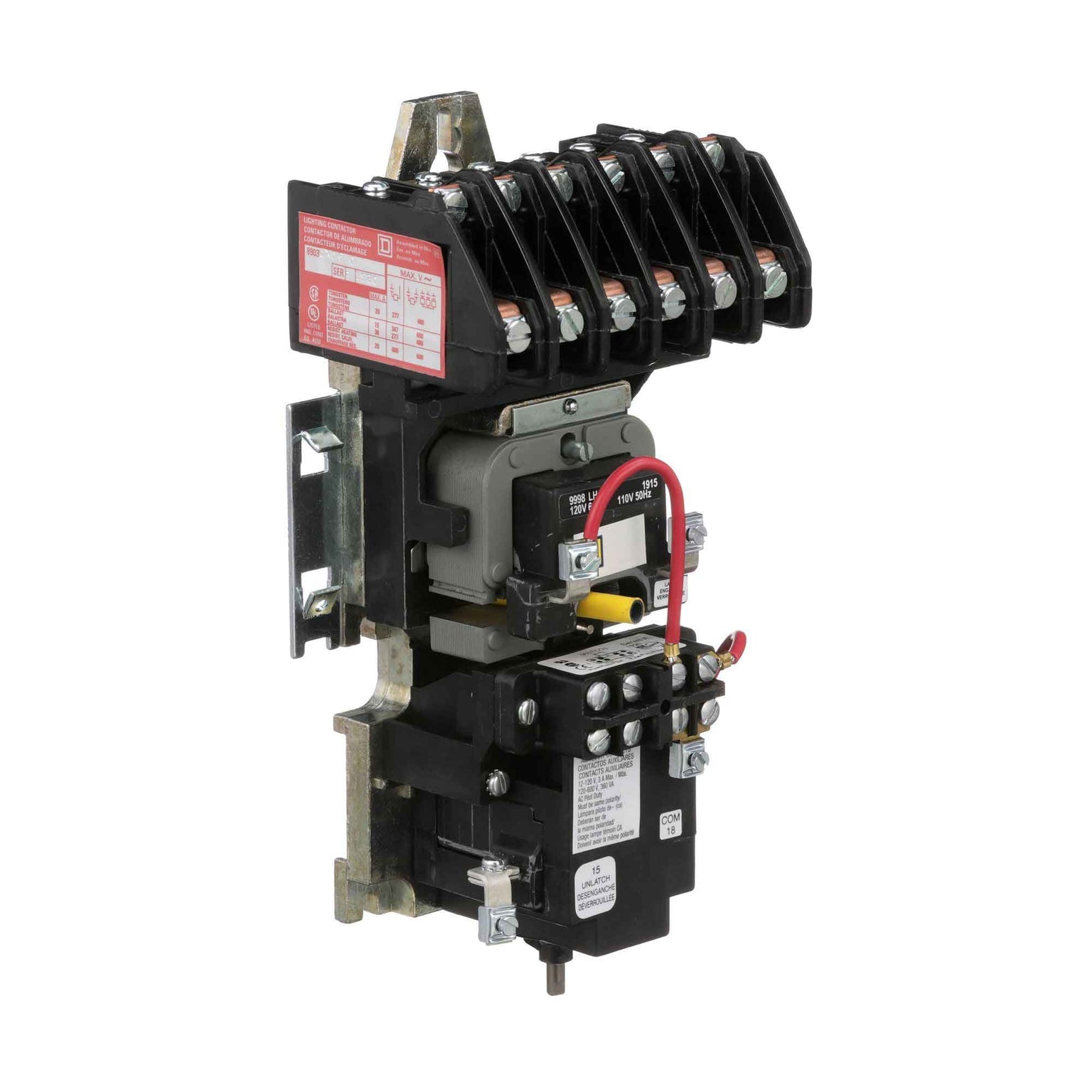

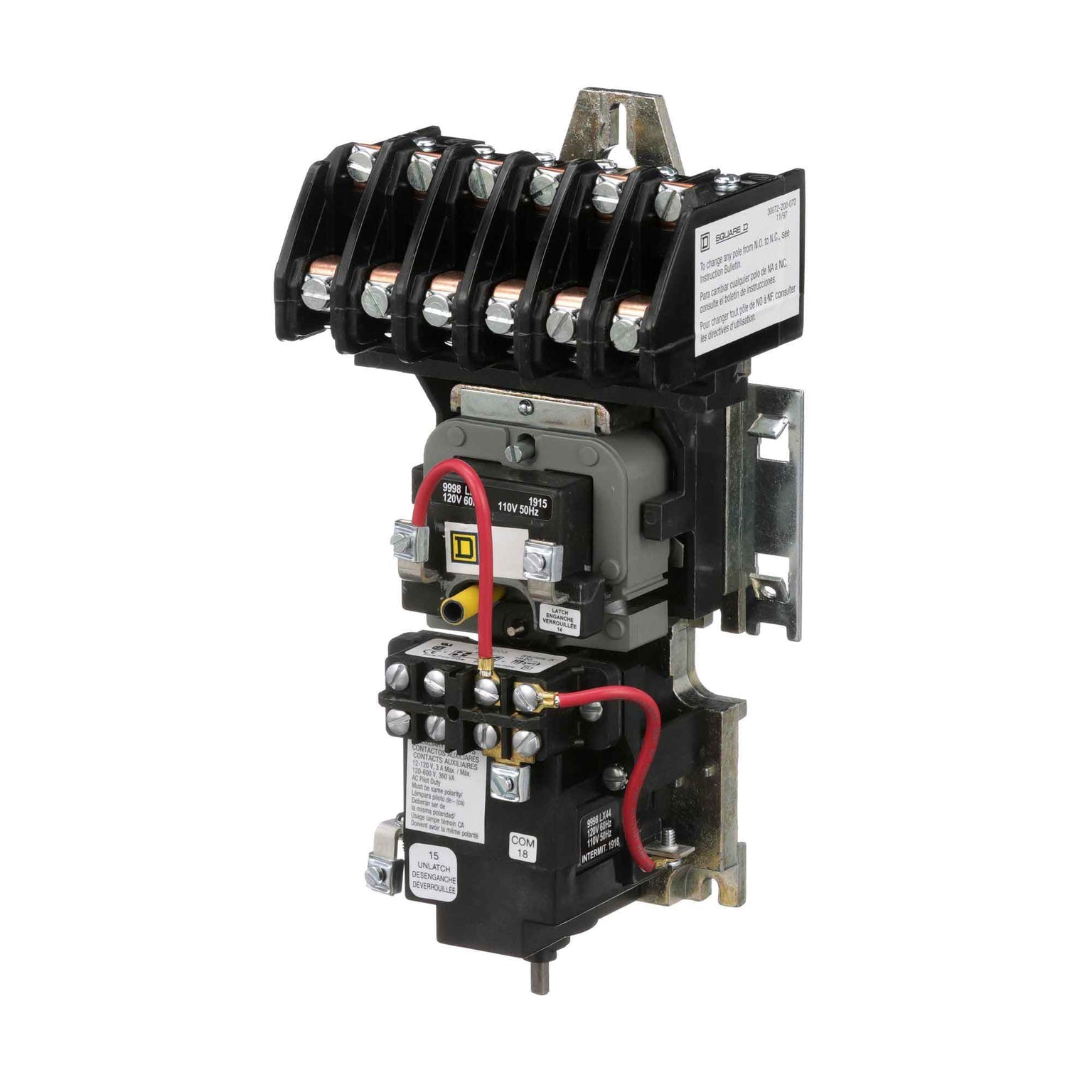

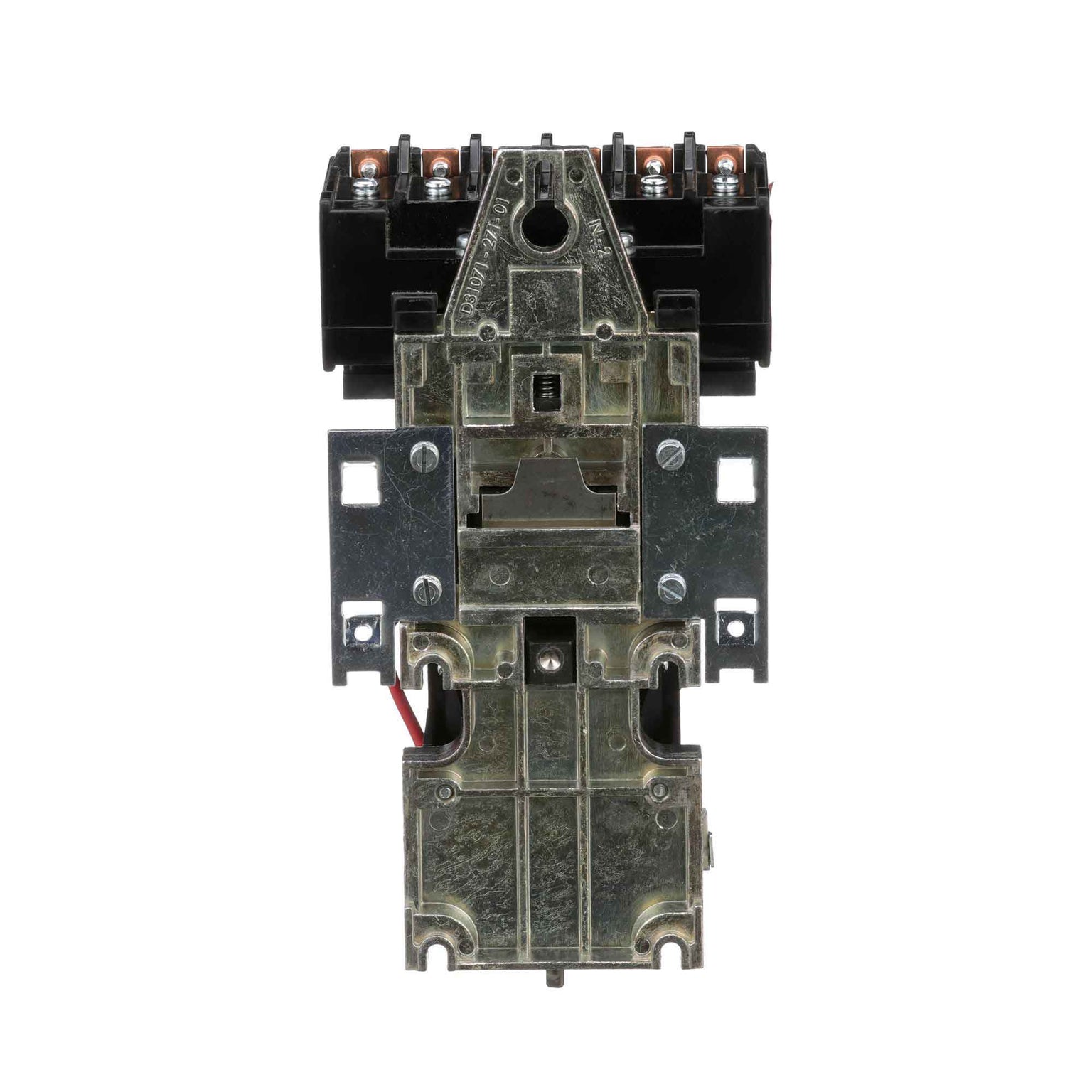

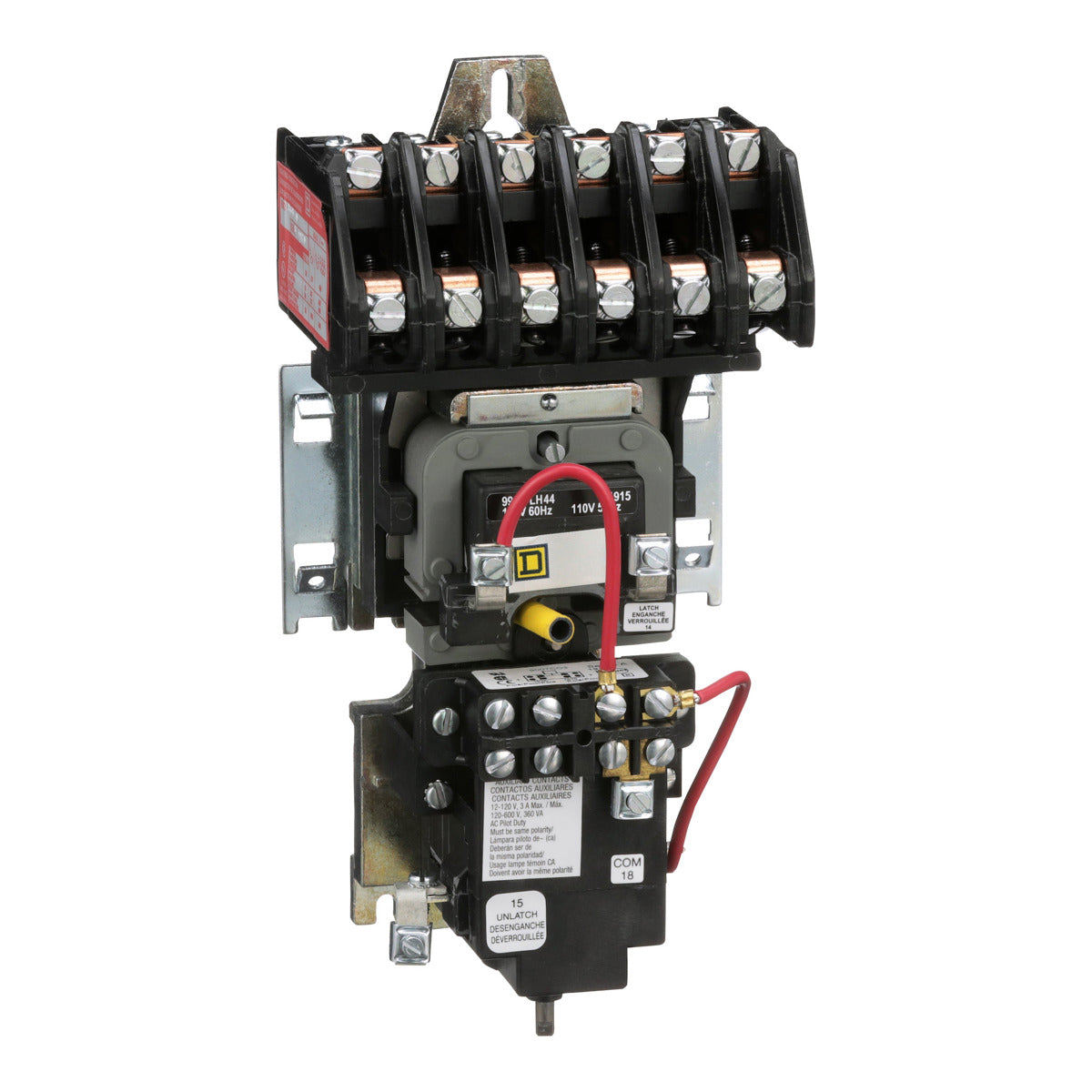

The Square D 8903LXO60V02 is a multipole lighting contactor for lighting control applications. This mechanically held device can switch up to 30 A fluorescent and 20 A tungsten lighting loads. It features field convertible contacts from NO to NC and is supplied with two operating coils for latching and unlatching.
- Contacts are field convertible from NO to NC
- Coils are 110/120 VAC 50/60 Hz rated
- UL Listed and CSA Certified
Product Highlights
This 6-pole contactor has 6 NO contacts and an open enclosure. Coils and contacts are easily replaced. It is suitable for various lighting control applications.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: 8903LXO60V02
-
Country of Origin: Mexico
Technical Specifications
-
Type: LX
-
Brand: Square D
-
Depth: 83 mm
-
Width: 108 mm
-
Height: 224 mm
-
Current: 20 Amp
-
Indicator: NO INDICATOR
-
Sub Brand: 8903LX
-
Applications: MECHANICALLY HELD
-
Coil Voltage: 110@50Hz/120@60Hz VAC
-
TC Connection: SCREW-CLAMP TERMINALS
-
Certifications: CSA,UL Listed
-
Contact Rating: 600
-
Control Voltage: 110 V AC 50 Hz;120 V AC 60 Hz
-
Number of Poles: 6 Pole
-
Line Rated Current: 20-20 A
-
Contact Configuration: 6 NO
-
Voltage Rating: 600 VAC
-
Resistive Ampere: 30 Ampere (Fluorescent Lighting), 20 Ampere (Tungsten Lighting)
-
Auxiliary Contact: 6NO
-
Enclosure: Open
-
Contact Type: Double Break Silver Cadmium Oxide
-
Electrical Connection Type: Screw Clamp Terminal
-
Hz [Specifications]: 50/60
-
Item [Specifications]: Mechanically Held Lighting Contactor
-
Depth [Specifications]: 3.25 in
-
Width [Specifications]: 4.25 in
-
Height [Specifications]: 8.81 in
-
Features [Specifications]: Halogen free plastic parts product; Mercury Free; PVC Free; Green Premium product; Toxic Heavy Metal Free
-
Inrush VA [Specifications]: 140-140 VA 60 Hz; 150-150 VA 50 Hz; 25-25 VA 50/60 Hz
-
Standards [Specifications]: CSA, UL
-
Coil Volts [Specifications]: 120V AC
-
Control Type [Specifications]: No control units
-
Contactor Type [Specifications]: Mechanically Held
-
Current Rating [Specifications]: 20-20 A tungsten; 30-30 A fluorescent
-
Full Load Amps [Specifications]: 30 A
-
Control Circuit [Specifications]: Separate control circuit
-
Enclosure NEMA Rating [Specifications]: No Enclosure
-
Electrical Connections [Specifications]: Screw-clamp terminals
-
Part Number #: 8903LXO60V02
-
Dimensions: 4.25 in W x 3.25 in D x 8.81 in H, 8.81 in H x 4.25 in W x 3.25 in D
-
UNSPSC: 39121529
-
UPC: 00785901057369
-
Family: Class 8903
-
Pole: 6
-
Amp: 30
-
Volt: 600
-
Phase: 3
-
Category: Contactors
-
Amperage: 30
-
Voltage: 600VAC
-
Poles: 6
-
Mounting Type: Surface
-
Terminal Connection: Screw Clamp
-
Length (in): 3.3
-
Width (in): 4.3
-
Height (in): 8.8
-
Standards: RoHS, REACh
-
Coil Volts: 110/120VAC at 50/60Hz
-
Mpn: 8903LXO60V02
-
Upc: 785901057369
-
Gtin: 785901057369
-
Manufacturer: Schneider Electric
-
Size: 108 MM,224 MM,83 MM
