Square D 8903LXG80V02 Mechanically Held Lighting Contactor 30 Amp 8-Pole 110/120VAC

Product Description

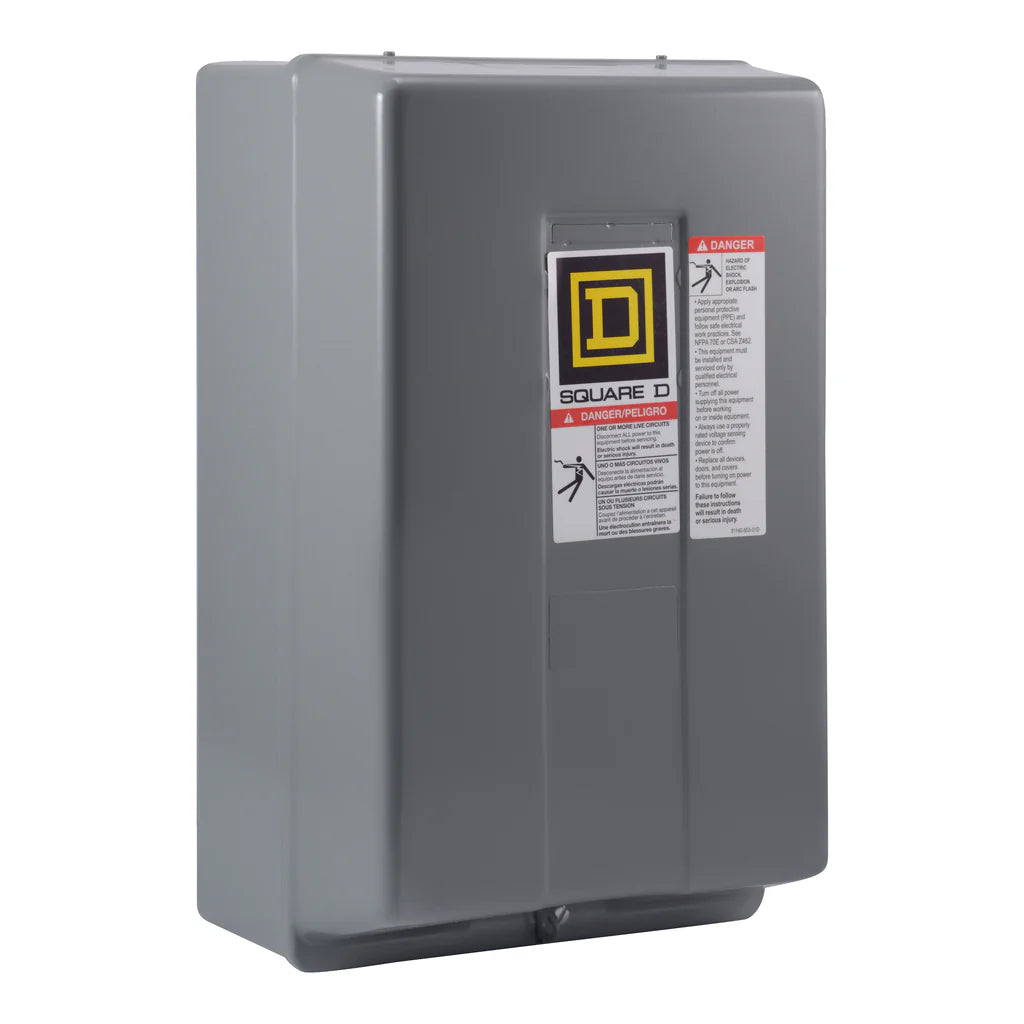

Square D 8903LXG80V02 is a mechanically held lighting contactor designed for lighting control applications. This device can handle loads up to 30 Amps for fluorescent and 20 Amps for tungsten. It features a total of eight poles with eight normally open contacts, which are field convertible to normally closed. The contactor comes with two operating coils: one to latch the contactor and another to unlatch it. Both coils are rated for 110/120 VAC at 50/60 Hz. A range of coil voltages up to 600 VAC is also available. This contactor is housed in a NEMA 1 enclosure made of painted sheet steel, but other types of enclosures can be supplied as well. It is easy to replace coils and contacts when necessary. The dimensions of the enclosure are approximately twelve point six nine inches in height, seven point eight one inches in width, and six point zero three inches in depth. The contactor is UL Listed and CSA Certified.

• Switching Capacity: 30 Amps for fluorescent and 20 Amps for tungsten.
• Field convertible contacts from normally open (NO) to normally closed (NC).
• Two coils included for latching and unlatching.

Product Highlights

This product is ideal for commercial lighting control and is constructed for reliability in demanding applications.

Product Information

Standard Information

• Catalog Number: 8903LXG80V02
• Manufacturer: Schneider Electric

Technical Specifications

• Coil Voltage: 110/120 VAC, 50/60 Hz
• Current Rating: 20 Amps
• Number of Poles: 8 Pole
• Contact Configuration: 8 NO
• Country of Origin: Mexico
• Warranty Length: 18 months
• Certifications: UL Listed, CSA Certified
