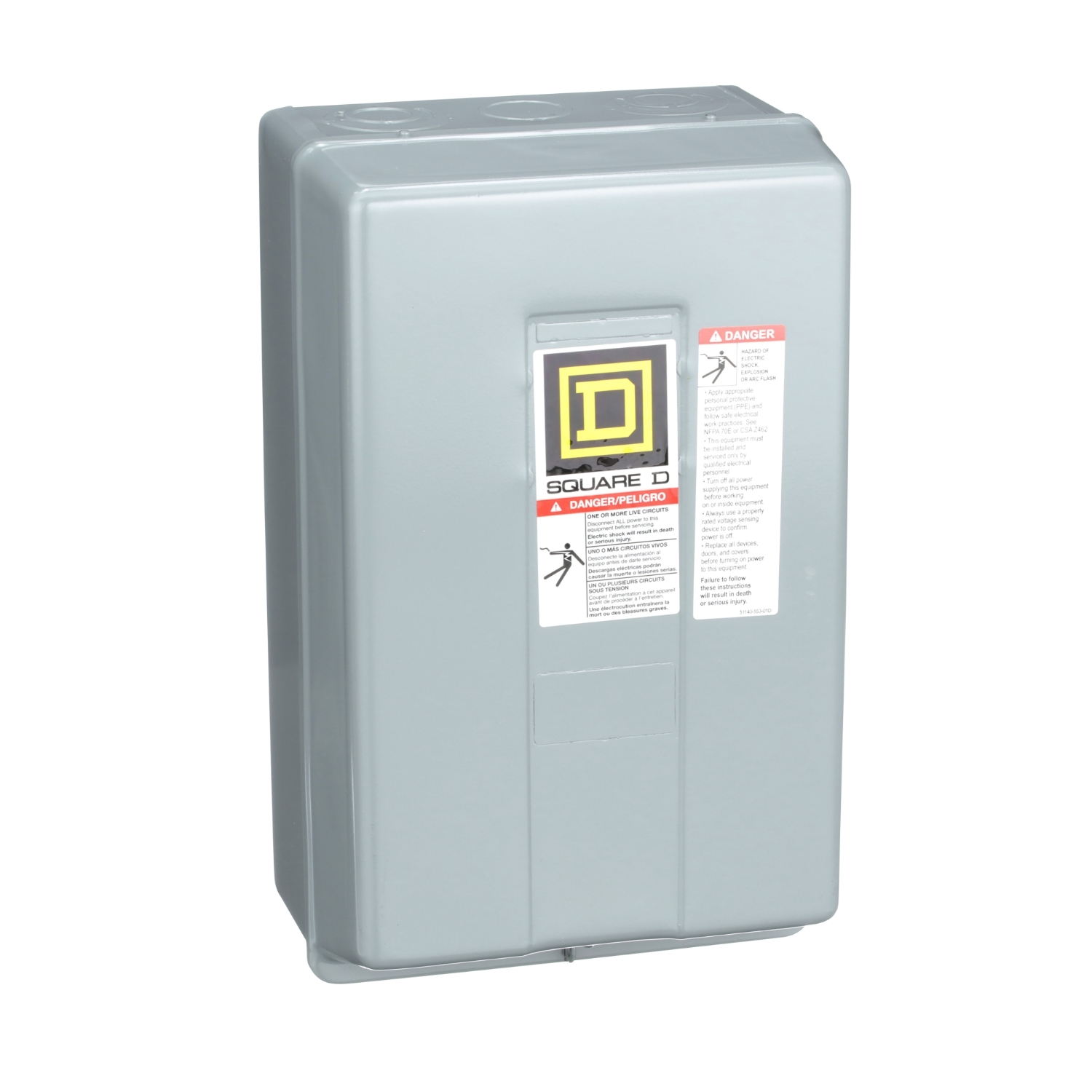

Square D 8903LXG60V02 Lighting Contactor 30 Amp 6-Pole 6NO NEMA 1

Product Description

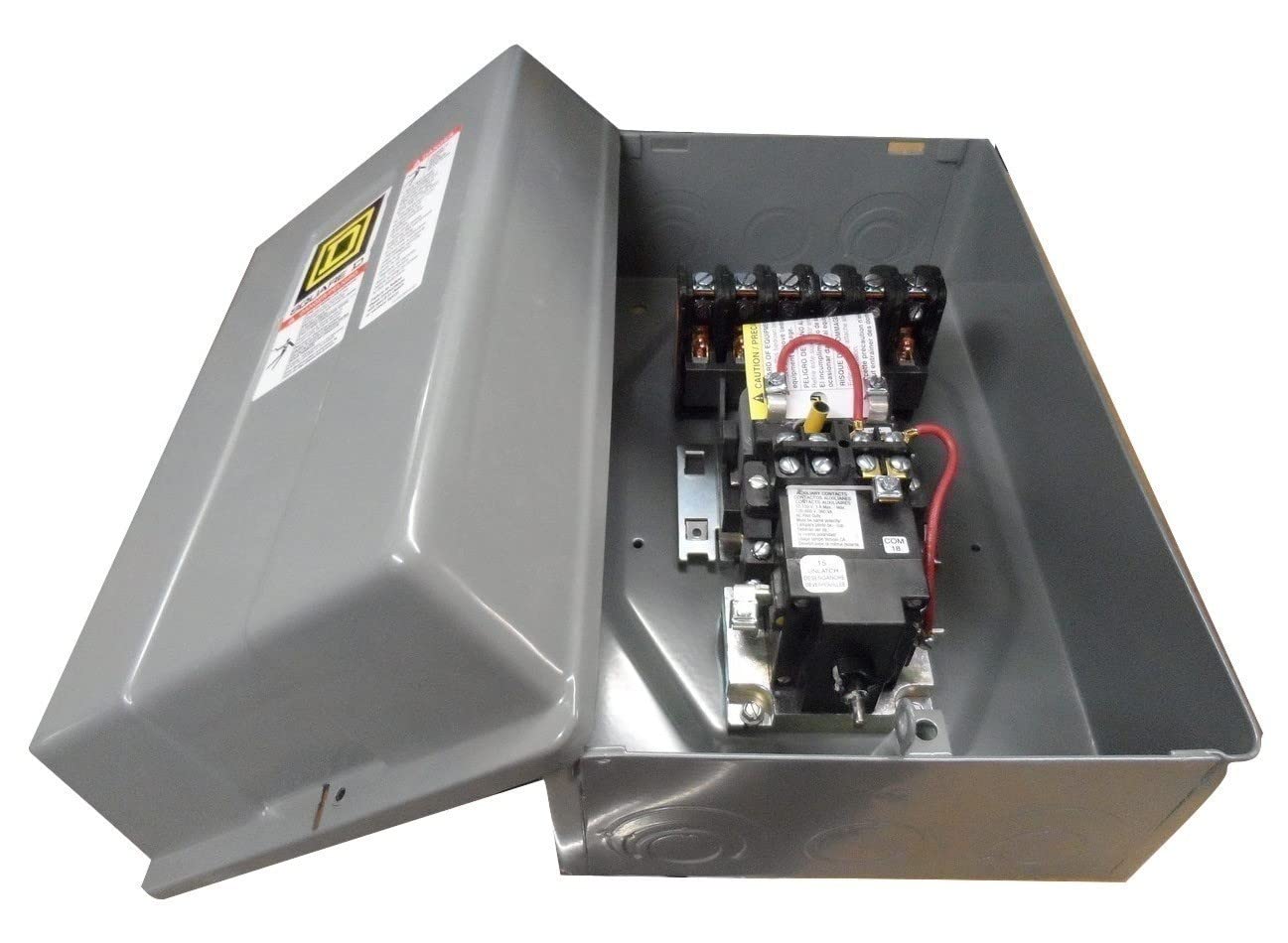

The Square D 8903LXG60V02 is a mechanically held lighting contactor designed for lighting control applications. It can switch up to 30A fluorescent and 20A tungsten lighting loads. This 6-pole device features 6 NO contacts that are field convertible from NO to NC. It comes with two operating coils rated for 110/120 VAC 50/60 Hz and is housed in a NEMA 1 enclosure.

• Suitable for 30A fluorescent or 20A tungsten lighting loads
• Contacts are field-convertible with NO and NC indicators
• Features replaceable coil and contacts

Product Highlights

The Square D 8903LXG60V02 lighting contactor is UL Listed and CSA Certified. It is ideal for lighting control with easily replaceable coils and contacts.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 8903LXG60V02
• Country of Origin: Mexico

Technical Specifications

• Type: Mechanically Held Lighting Contactor
• Brand: Square D
• Depth: 153 mm
• Width: 198 mm
• Height: 322 mm
• Current: 20 Amp
• Indicator: NO INDICATOR
• Sub Brand: 8903LX
• Applications: MECHANICALLY HELD
• Coil Voltage: 110 VAC at 50 Hz, 120 VAC at 60 Hz
• TC Connection: Screw-clamp terminals
• Certifications: CSA,UL Listed
• Contact Rating: 20-20 A TUNGSTEN-30-30 A FLUORESCENT
• Control Voltage: 110 V AC 50 Hz;120 V AC 60 Hz
• Number of Poles: 6 Pole
• Line Rated Current: 20-20 A
• Contact Configuration: 6 NO
• Voltage Rating: 600 VAC
• Current Rating: 30 Ampere
• Resistive Ampere: 30 Ampere (Fluorescent Lighting), 20 Ampere (Tungsten Lighting)
• Auxiliary Contact: 6NO
• Enclosure: NEMA 1
• Approval: UL, CSA
• Contact Type: Double Break Silver Cadmium Oxide
• Enclosure Material: Painted Sheet Steel
• Enclosure Mounting Type: Surface
• Electrical Connection Type: Screw Clamp Terminal
• Amps: 30
• Volts: 600
• Poles: 6
• Coil: 120
• Mechanically Held: Yes
• Nema Rating: Nema 1
• Latching: YES
• Current Type: AC/DC
• Maximum Amperage: 30 A
• Frequency Rating: 50/60 Hz
• Connection Type: Screw Clamp
• Enclosure Type: NEMA 1
• Mounting Type: Surface
• Item [Specifications]: Mech Held Ltg Contr 30A 6Pole Nema1 Encl
• Control Type [Specifications]: no control units
• Control Circuit [Specifications]: separate control circuit
• Local Signalling [Specifications]: no indicator
• Poles Description [Specifications]: 6P 6 NO
• Inrush Power In Va [Specifications]: 150-150 VA 60 Hz || 140-140 VA 50 Hz || 25-25 VA 50/60 Hz
• Line Rated Current [Specifications]: 20-20 A tungsten || 30-30 A fluorescent
• Electrical Connection [Specifications]: screw-clamp terminals
• Product Certifications [Specifications]: UL Listed || CSA
• Nema Degree Of Protection [Specifications]: NEMA 1 painted sheet steel surface
• Product Or Component Type [Specifications]: Mechanically Held Lighting Contactor
• [Uc] Control Circuit Voltage [Specifications]: 110 V AC 50 Hz || 120 V AC 60 Hz
• Hold-In Power Consumption In Va [Specifications]: 30-30 VA
• Range Of Product: 8903LX
• Additional Included Device: none
• Series: 8903LX
• Maximum Load Current: 30 A
• Contactor Type: Lighting
