Square D 8903LXG40V02 Lighting Contactor 4-Pole 30 Amp 110/120 VAC NEMA 1

Product Description

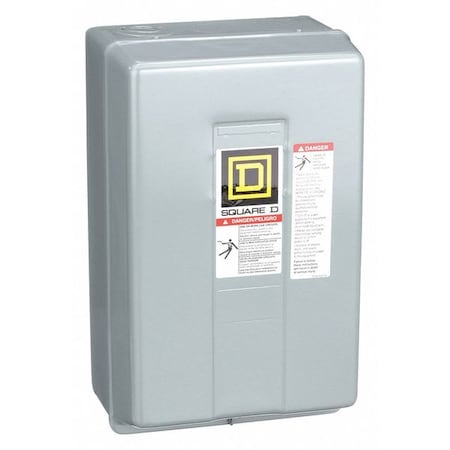

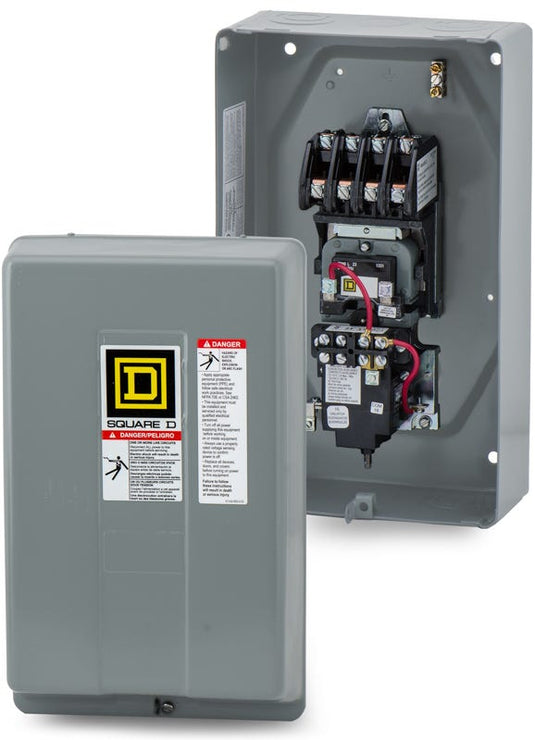

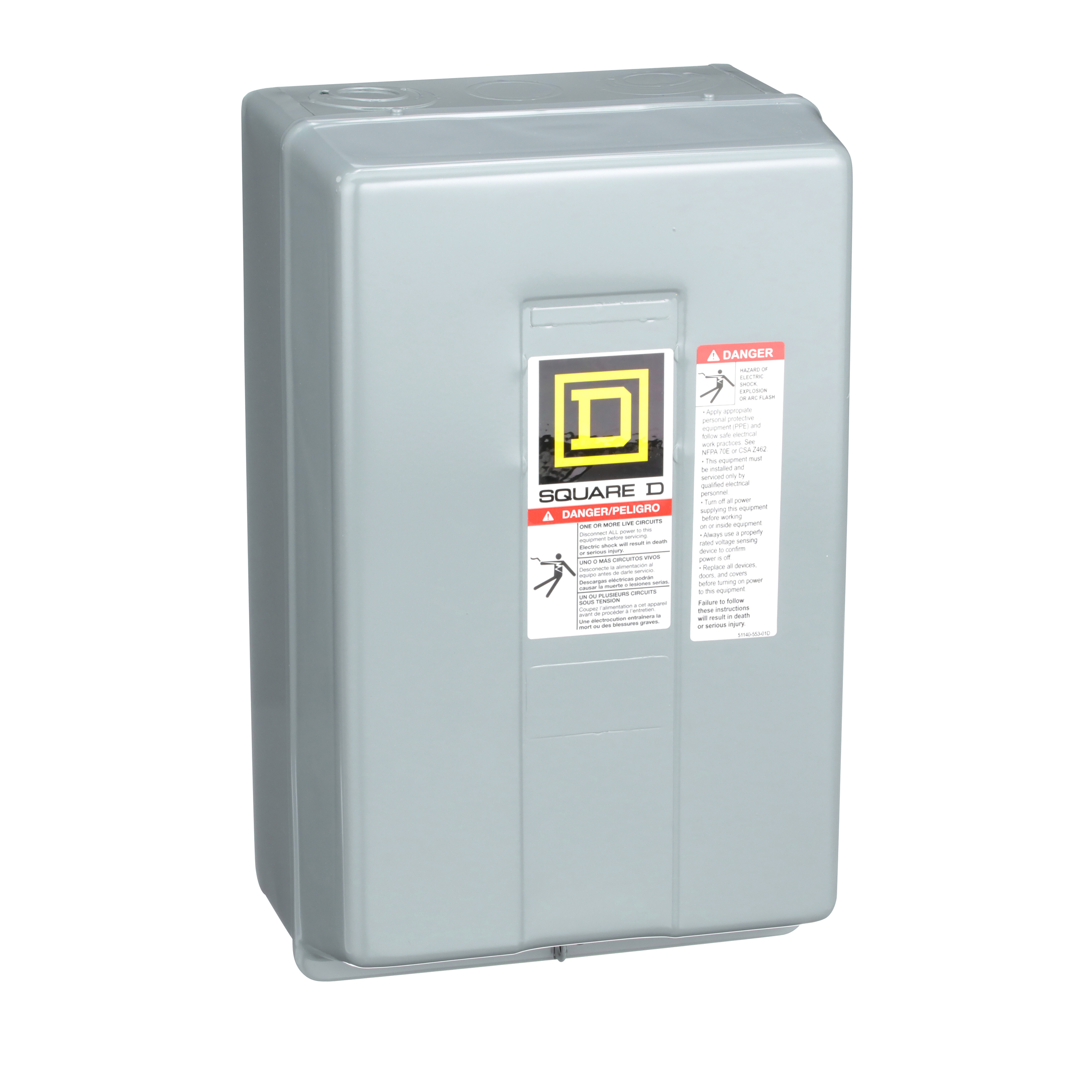

The SQUARE D 8903LXG40V02 is a mechanically held multipole lighting contactor for lighting control applications. It switches up to 30A fluorescent and 20A tungsten lighting loads. This 4-pole device has 4 NO contacts that are field convertible from NO to NC. It features two operating coils rated at 110/120 VAC 50/60 Hz and is housed in a NEMA 1 enclosure.

• For 30A Fluorescent or 20A tungsten lighting loads
• Field-convertible contacts with NO and NC indicators
• UL Listed and CSA Certified

Product Highlights

The SQUARE D 8903LXG40V02 lighting contactor is ideal for controlling lighting circuits. It is UL Listed and CSA Certified.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 8903LXG40V02
• Country of Origin: Mexico

Technical Specifications

• Type: Mechanically Held Lighting Contactor
• Brand: Square D
• Current: 20 Amp
• Sub Brand: 8903LX
• Applications: MECHANICALLY HELD
• Coil Voltage: 120 V
• TC Connection: Screw-clamp terminals
• Certifications: CSA,UL Listed
• Contact Rating: 30 A
• Control Voltage: 110 V AC 50 Hz;120 V AC 60 Hz
• Number of Poles: 4
• Line Rated Current: 20-20 A
• Contact Configuration: 4 NO
• Enclosure NEMA Rating: NEMA 1
• Electrical Connections: Screw-clamp terminals
• Hz: 50/60 Hz
• Item: Mechanically Held Lighting Contactor
• Features: Halogen free plastic parts product; Mercury Free; PVC Free; Green Premium product; Toxic Heavy Metal Free
• Inrush VA: 140-140 VA 60 Hz; 25-25 VA 50 Hz; 150-150 VA 50/60 Hz
• Standards: RoHS, REACh
• Current Rating: 30 A
• Full Load Amps: 30
• Control Circuit: Separate control circuit
• Enclosure: NEMA 1
• Enclosure Material: Painted Sheet Steel
• Enclosure Mounting Type: Surface
• Electrical Connection Type: Screw Clamp Terminal
• Voltage Rating: 600 VAC
• Resistive Ampere: 30 Ampere (Fluorescent Lighting), 20 Ampere (Tungsten Lighting)
• Auxiliary Contact: 4NO
• Contact Type: Double Break Silver Cadmium Oxide
• Application: Lighting control
• Poles: 4
• Voltage: 600V
• Coil: 110/120 VAC
• Amperage (Tungsten): 20A
• Amperage (Fluorescent): 30A
• Contacts: 4 NO
• Series: 8903LX
• Amperage: 30
• Phase: 3
• Mounting Type: Surface
• Frame Type: 8903
• Terminal Connection: Screw Clamp
• Nema Rating: 1
• Maximum Load Current: 30 A
• Pole: 4 Pole
• Frequency: 50/60 Hz
• Wattage: 6.9 kW at 200 V/7.9 kW at 230 V/13.1 kW at 380 V/15.9 kW at 460 V/19.9 kW at 575 V
• Contact: 30 A at 600 VAC
• Connection: Screw Clamp
• Operating: 0 to 40 deg C
• Material: Sheet Steel
• Finish: Painted
• Maximum Amperage: 30 A
• MPN: 8903LXG40V02
• Alternate Catalog Number: 8903LXG40V02
• Catalog Number: 8903LXG40V02
• Coil Power Rating: 30-30 VA
• Connection Type: Screw Clamp
• Enclosure Type: NEMA 1
• Frequency Rating: 50/60 Hz
• Manufacturer: Schneider Electric
• Number of Auxiliary Contacts: 4NO
• Number Of Poles: 4
• Operating Temperature: 0 to 40
• Terminal Type: Screw/Clamp
• UNSPSC: 39121529
• Part Number #: 8903LXG40V02
• SKU #: 2224494
