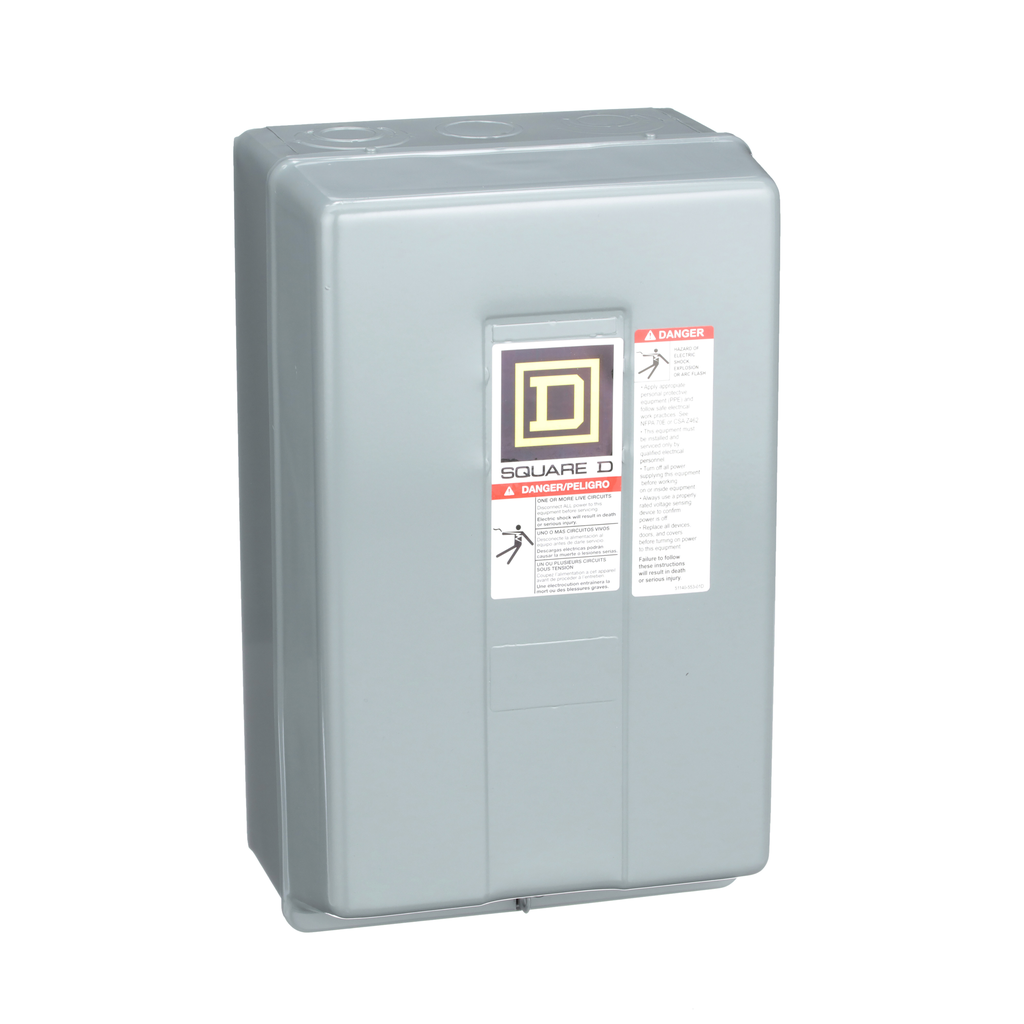

Square D 8903LXG30V02 Mechanically Held Lighting Contactor 110/120 VAC 30 Amp 3-Pole NEMA 1

Product Description

The Square D 8903LXG30V02 is a mechanically held lighting contactor designed for managing lighting loads and controlling electrical heating. This device can handle up to thirty amps for fluorescent lighting and twenty amps for tungsten loads. Its three-pole design features three normally open contacts, providing reliable operation.

• Field convertible contacts from normally open to normally closed
• Available in various coil voltages up to six hundred volts AC
• Enclosed in durable painted sheet steel NEMA 1 enclosure

Product Highlights

Suitable for industrial automation and built for a range of applications, the 8903LXG30V02 is UL Listed and CSA Certified, ensuring compliance with safety standards.

Product Information

Standard Information

• Catalog Number: 8903LXG30V02
• Brand: Square D

Technical Specifications

• Coil Voltage: 110/120 VAC 50/60 Hz
• Current Rating: 30 Amp Fluorescent, 20 Amp Tungsten
• Number of Poles: 3 Pole
• Contact Configuration: 3 NO
• Depth: 6.03 inches
• Width: 7.81 inches
• Height: 12.69 inches
• Country of Origin: Mexico
