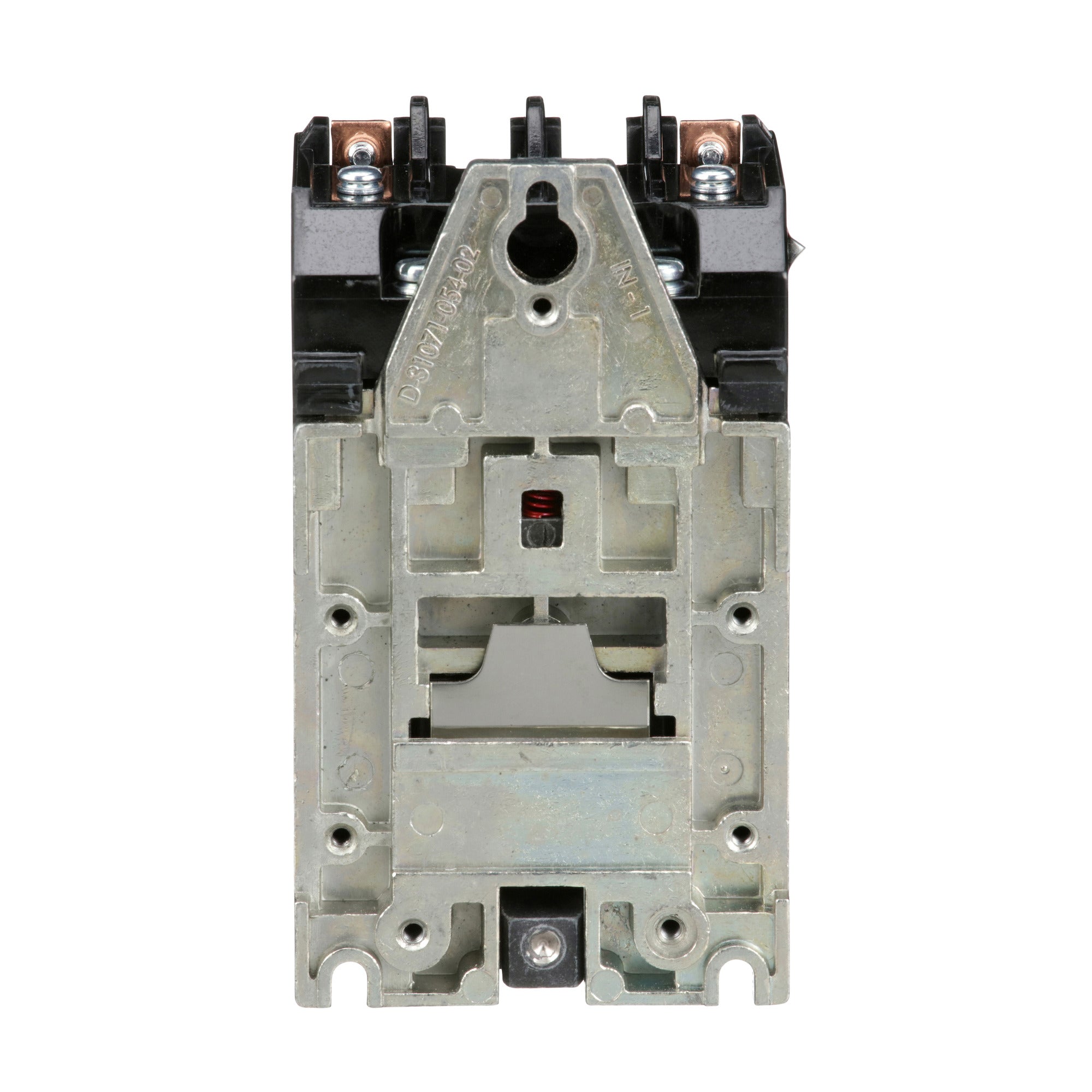

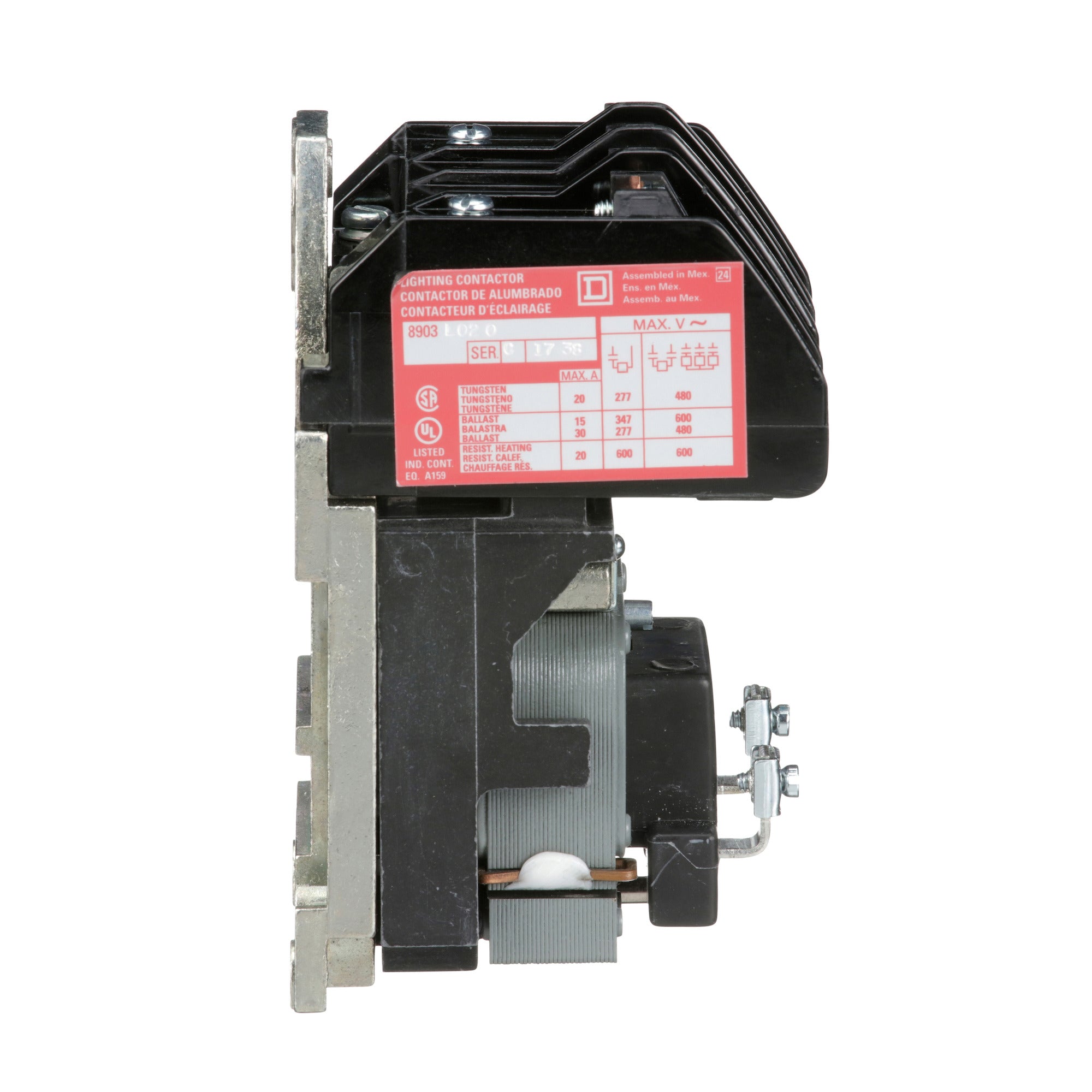

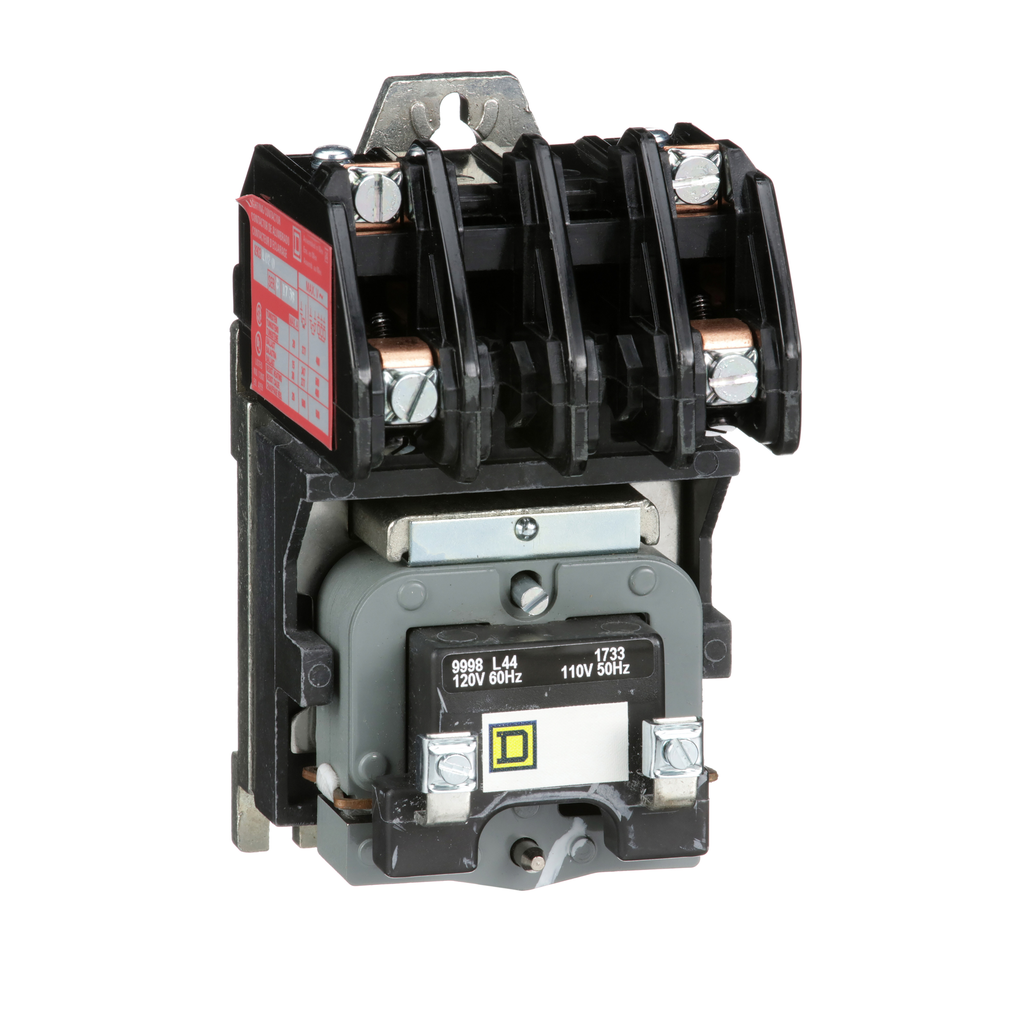

Square D 8903LO20V02 110/120 VAC 30 Amp 2-Pole 2NO Open Type Electrically Held Lighting Contactor

Product Description

The Square D 8903LO20V02 is an electrically held lighting contactor designed for lighting control applications. This product is capable of handling up to thirty amperes of fluorescent and twenty amperes of tungsten lighting loads. It features two normally open contacts, providing flexibility for different lighting configurations. This contactor operates with a 110/120 VAC coil, making it suitable for standard voltage applications.

• Supports up to 30 A fluorescent loads
• Field-convertible contacts from normally open (NO) to normally closed (NC)
• UL Listed and CSA Certified for safety

Product Highlights

This contactor is an open style device that is easy to install and replace. It is compact, measuring five inches in height, two point eighty-eight inches in width, and three point twelve inches in depth. Designed for reliability, it is supplied with an interchangeable operating coil that can handle various voltages, ensuring compatibility with different electrical systems.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 8903LO20V02
• Coil Voltage: 110/120 VAC
• Current Rating: 30 A for fluorescent, 20 A for tungsten
• Number of Poles: 2
• Dimensions: 5.00 inches tall, 2.88 inches wide, 3.12 inches deep
• Country of Origin: Mexico
• Warranty: 18 months
• Certifications: UL Listed, CSA Certified
