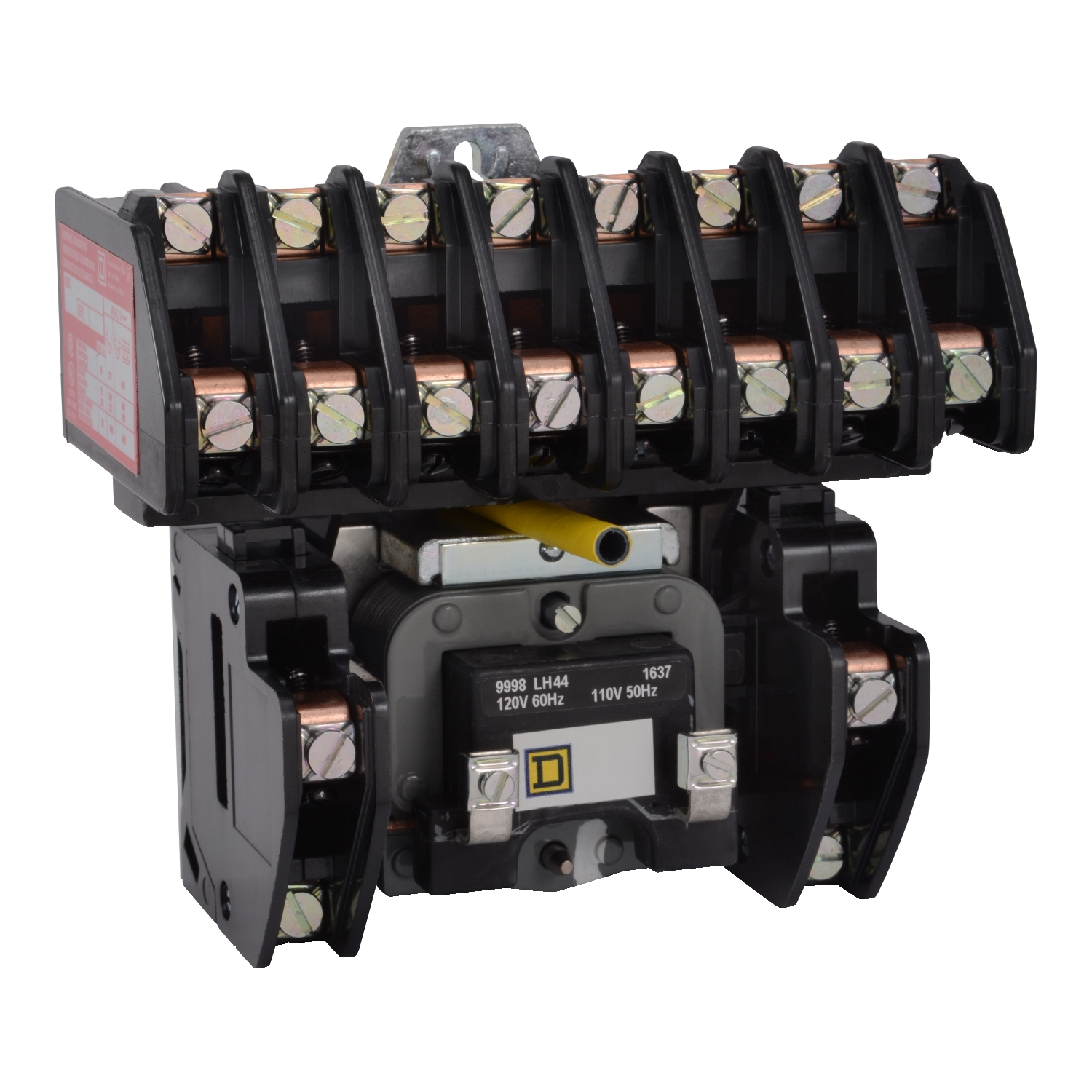

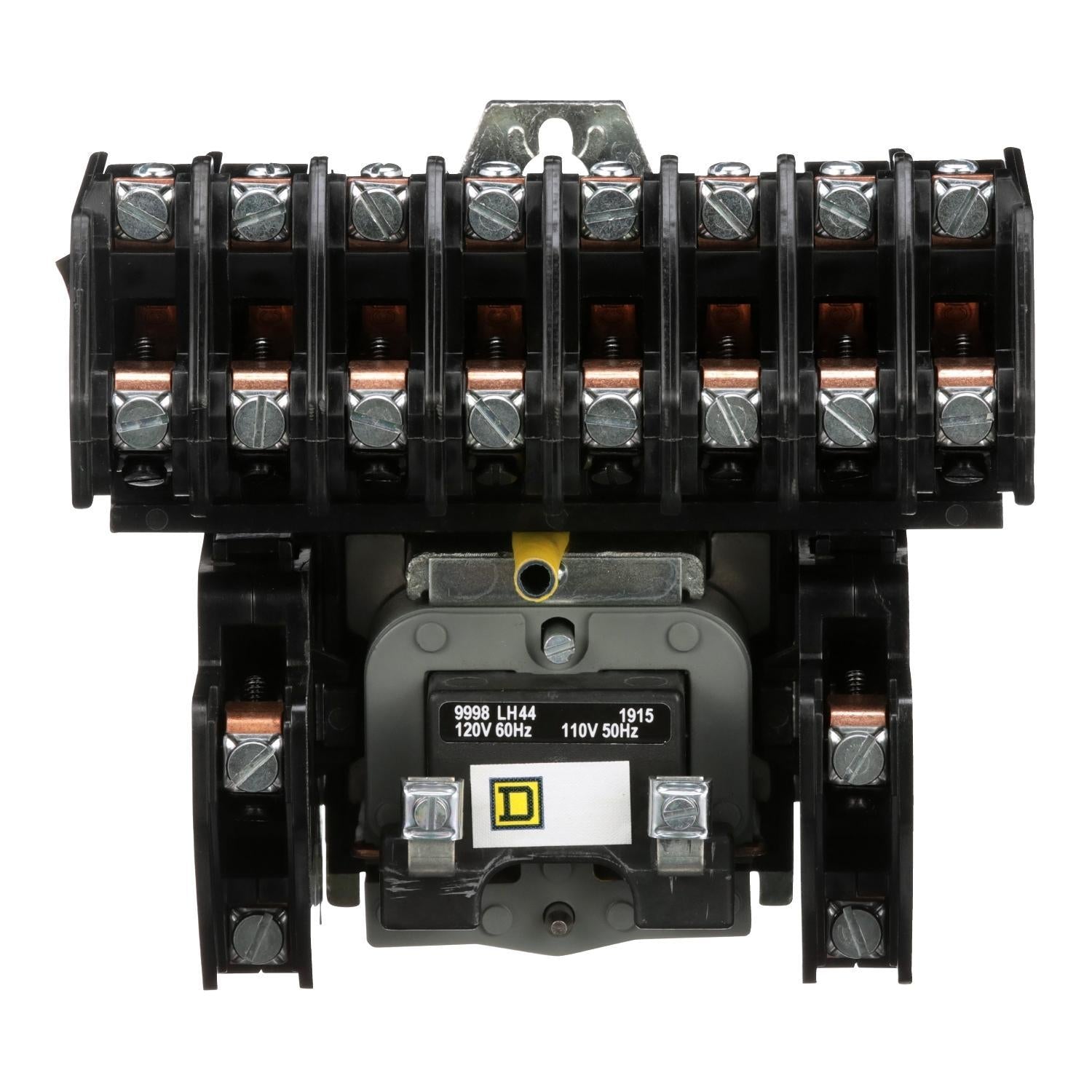

Square D 8903LO1000V02 Lighting Contactor 110/120 VAC 30 Amp 10-Pole 10NO

Product Description

The SQUARE D 8903LO1000V02 is an electrically held lighting contactor for lighting control applications. It can switch up to 30 A fluorescent and 20 A tungsten lighting loads. This 10-pole device has 10 NO contacts that are field convertible from NO to NC. It comes with a 110/120 VAC 50/60 Hz interchangeable operating coil.

• Switches up to 30 A fluorescent and 20 A tungsten lighting loads

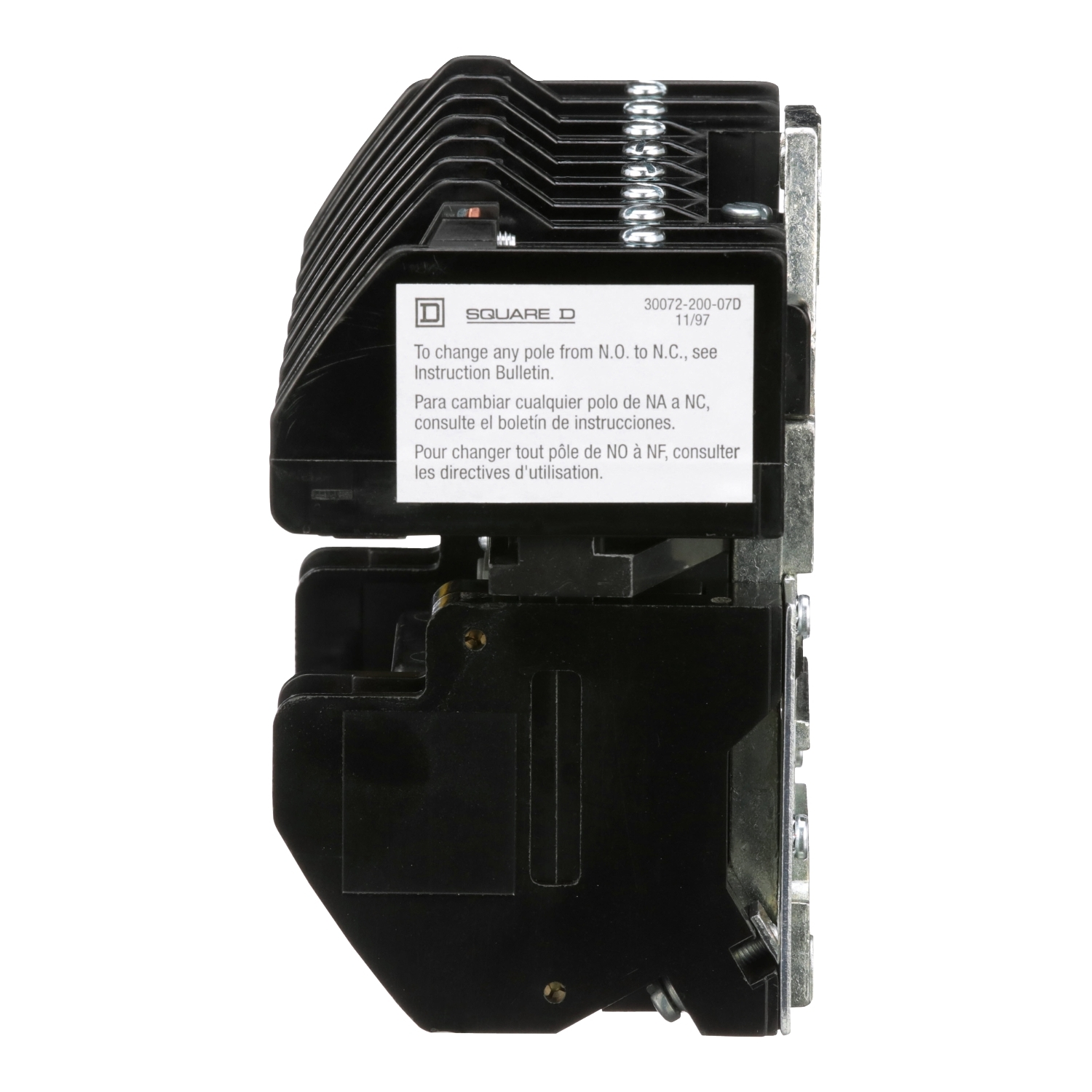

• Contacts are field convertible from NO to NC
• UL Listed and CSA Certified

Product Highlights

This Square D lighting contactor is ideal for lighting control, offering easy coil and contact replacement and a wide range of available voltages.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 8903LO1000V02
• Country of Origin: Mexico

Technical Specifications

• Type: Electrically Held Lighting Contactor
• Brand: Square D
• Depth: 79 mm
• Width: 143 mm
• Height: 127 mm
• Current Rating: 30 Ampere
• Indicator: NO INDICATOR
• Sub Brand: 8903L
• Applications: ELECTRICALLY HELD
• Coil Voltage: 110 VAC at 50 Hz, 120 VAC at 60 Hz
• TC Connection: Screw-clamp terminals
• Certifications: CSA,UL Listed

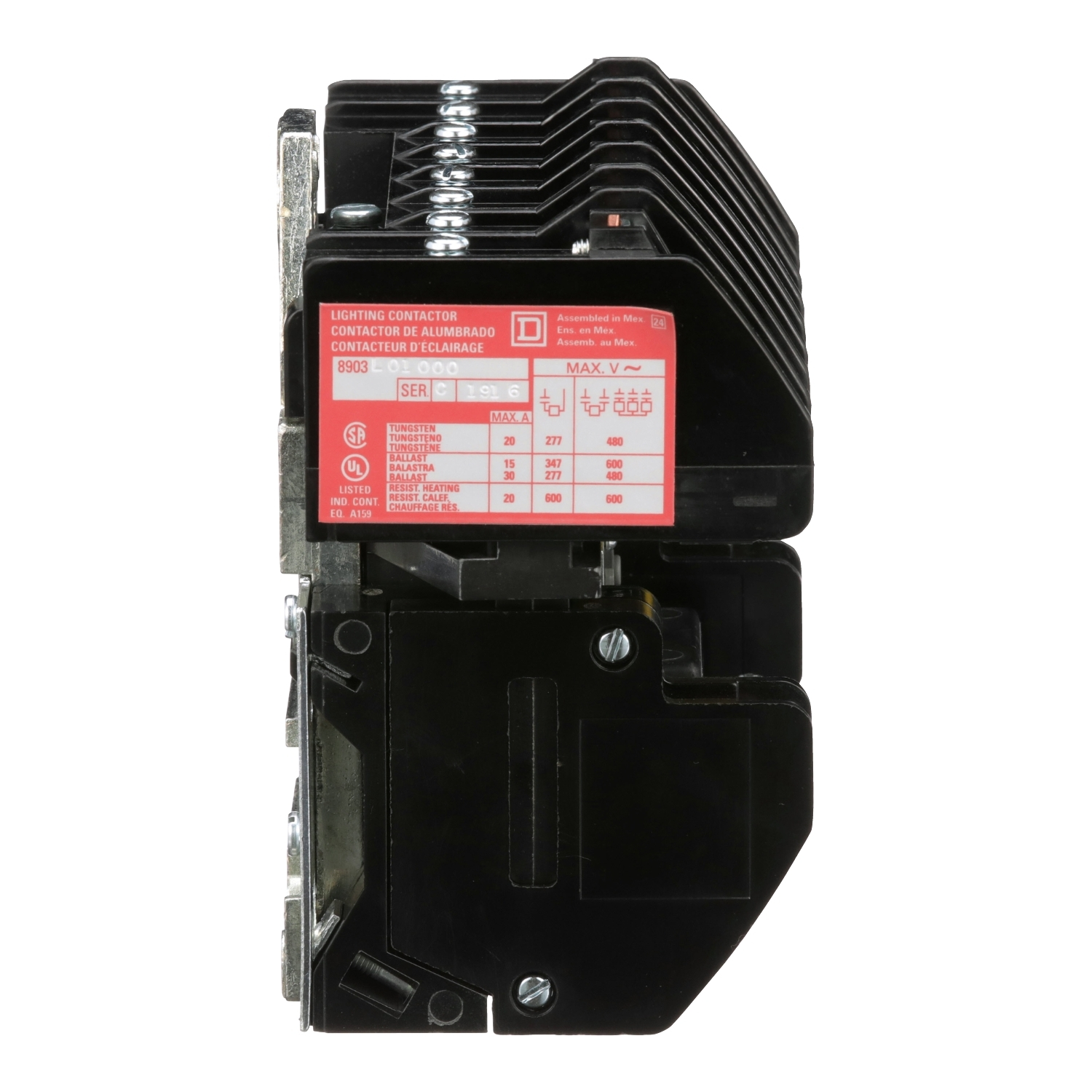

• Contact Rating: 20-20 A TUNGSTEN-30-30 A FLUORESCENT
• Number of Poles: 10
• Country of Origin: Mexico
• Line Rated Current: 20-20 A
• Contact Configuration: 10 NO
• Manufacturer: Schneider Electric
• Voltage Rating: 600 VAC
• Auxiliary Contact: 10NO
• Enclosure: Open
• Contact Type: Double Break Silver Cadmium Oxide
• Electrical Connection Type: Screw Clamp Terminal
• Series: 8903L
• Maximum Load Current: 30 A
• Frequency: 50/60 Hz

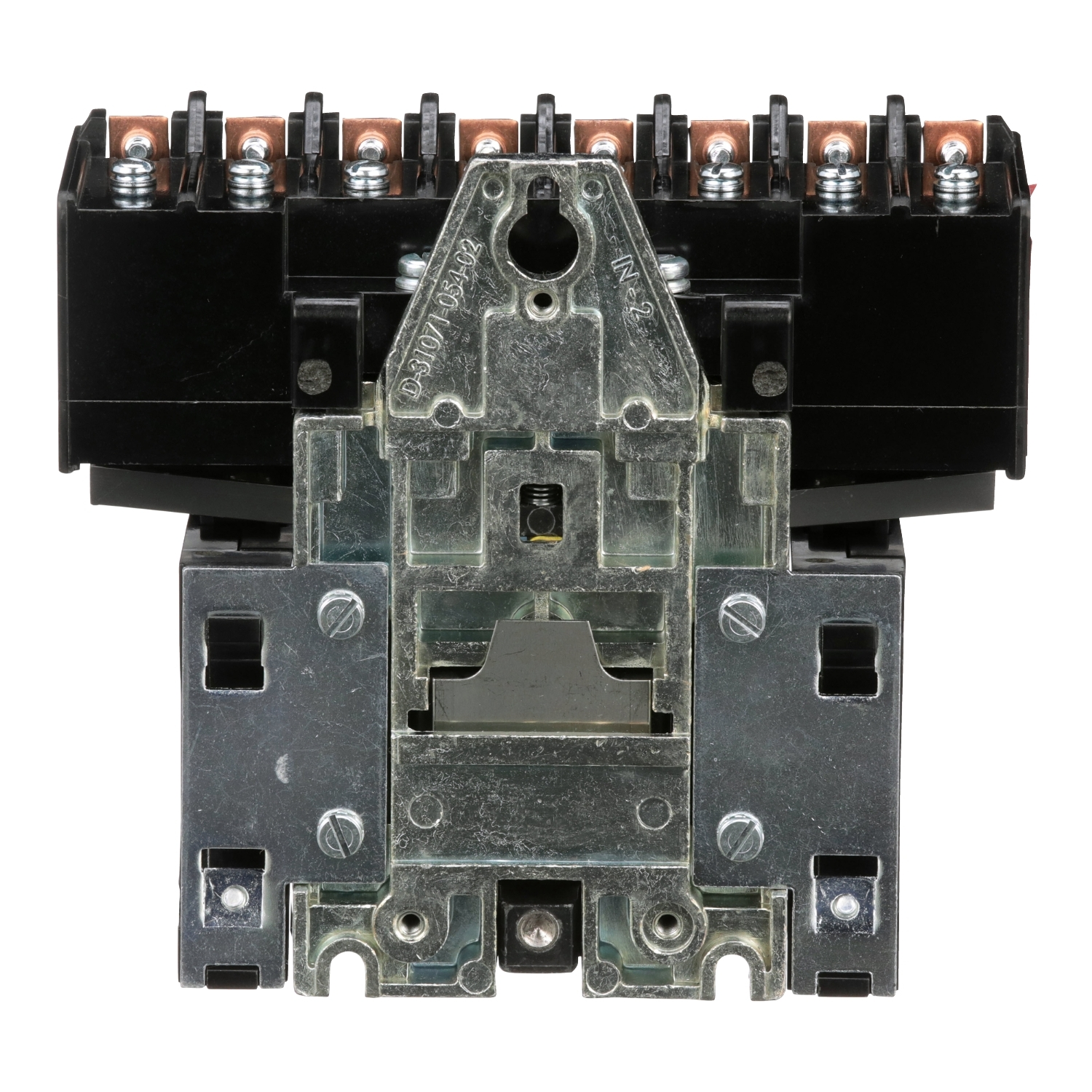

• Mounting: Surface
• Amperage: 30A
• Voltage: 120V
• Poles: 10
• Mounting Type: Surface
• Contactor Type: Lighting
• Nema Rating: Nema 1
• Control Circuit: separate control circuit
• [Uc] Control Circuit Voltage: 110 V AC 50 Hz || 120 V AC 60 Hz
• Inrush Power In Va: 180-180 VA 60 Hz || 170-170 VA 50 Hz
• Local Signalling: no indicator
• Hold-In Power Consumption In Va: 35-35 VA 60 Hz || 35-35 VA 50 Hz
• Electrical Connection: screw-clamp terminals
• Poles Description: 10P 10 NO
• Full Load Amps: 30 A
• Control Type: No control units
• Contactor Type [Specifications]: Electrically Held
