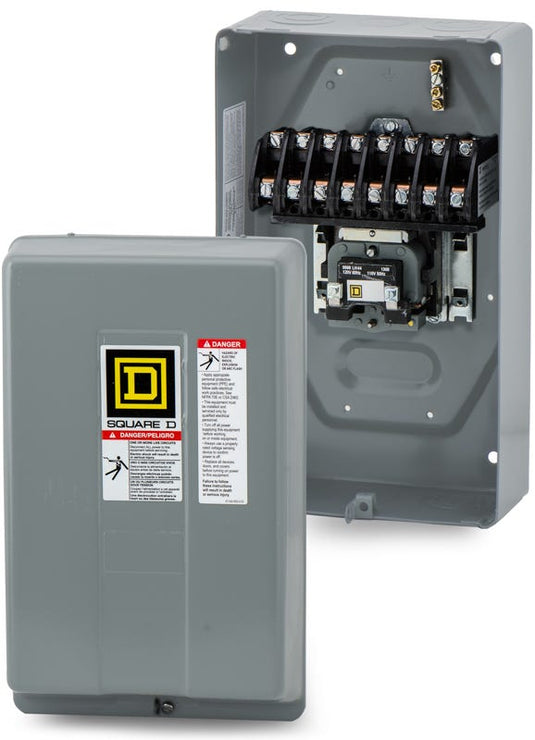

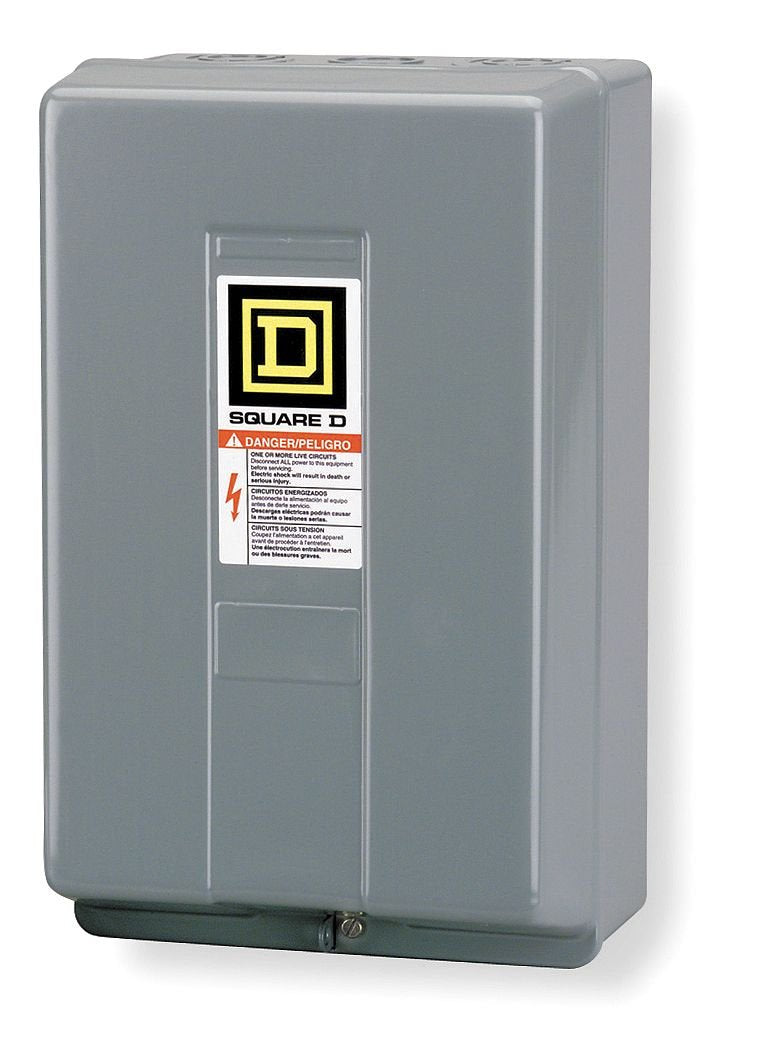

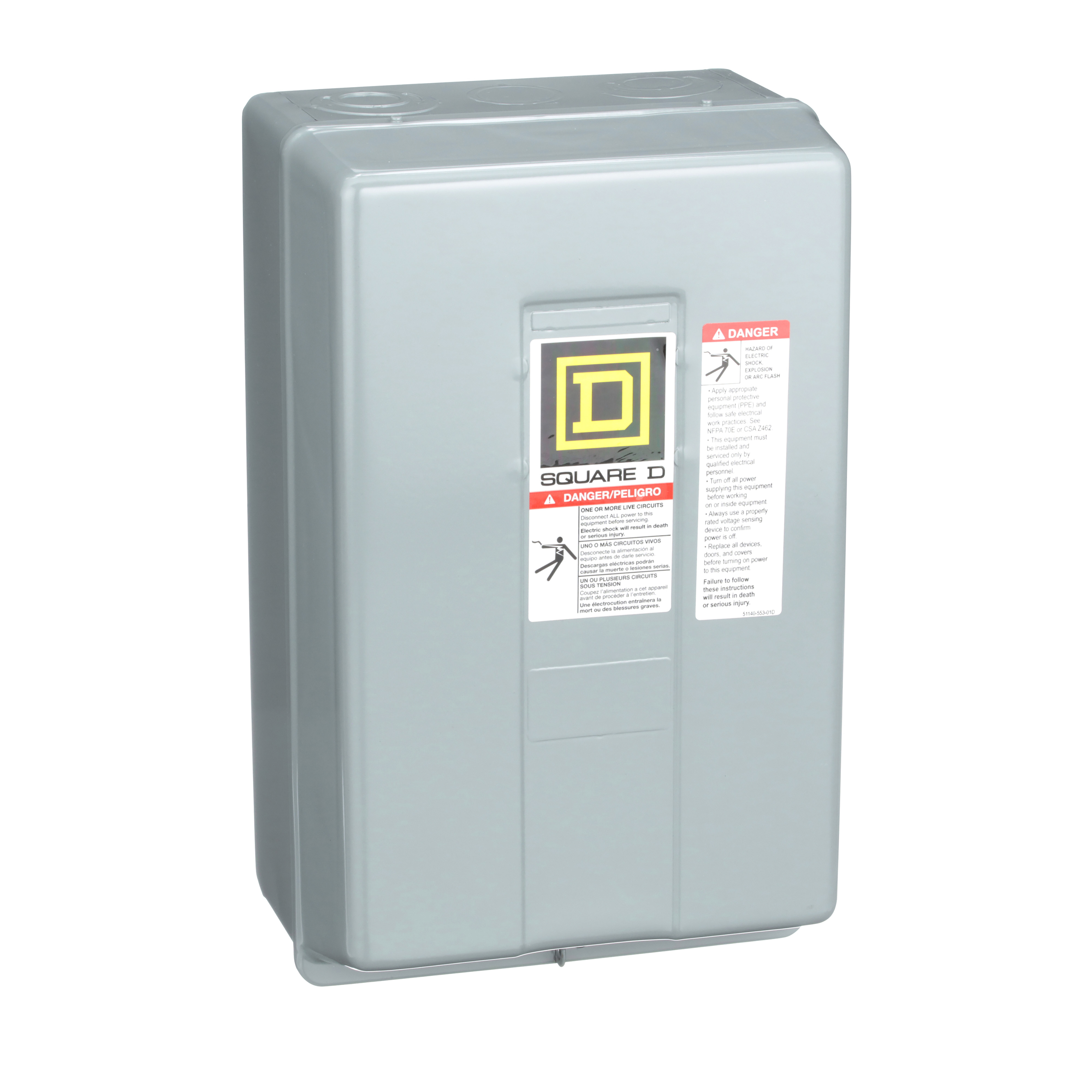

Square D 8903LG80V02 110/120 VAC 30 Amp 8-Pole 8NO NEMA 1 Electrically Held Lighting Contactor

Product Description

The Square D 8903LG80V02 is an 8-pole electrically held lighting contactor for lighting control applications. It can switch up to 30A fluorescent and 20A tungsten lighting loads. The contacts are field convertible from normally open to normally closed. It comes with a 110/120 VAC 50/60 Hz interchangeable operating coil and a NEMA 1 enclosure.

• Field-convertible contacts with NO and NC indicators
• Mechanically held or electrically held
• For 30A Fluorescent or 20A tungsten lighting loads

Product Highlights

The Square D 8903LG80V02 lighting contactor is UL Listed and CSA Certified. The coil and contacts are easily replaced.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 8903LG80V02
• Country of Origin: Mexico

Technical Specifications

• Type: Electrically Held Lighting Contactor
• Brand: Square D
• Depth: 153 mm
• Width: 198 mm
• Height: 322 mm
• Current: 20 Amp
• Indicator: No Indicator
• Sub Brand: 8903L
• Coil Voltage: 110 VAC at 50 Hz, 120 VAC at 60 Hz
• TC Connection: Screw-clamp terminals
• Certifications: CSA, UL Listed
• Contact Rating: 20-20 A TUNGSTEN-30-30 A FLUORESCENT
• Number of Poles: 8 Pole
• Country of Origin: Mexico
• Line Rated Current: 20-20 A tungsten || 30-30 A fluorescent
• Contact Configuration: 8 NO
• Enclosure: NEMA 1
• Voltage Rating: 600 VAC
• Enclosure Material: Painted Sheet Steel
• Enclosure Mounting Type: Surface
• Electrical Connection Type: Screw Clamp Terminal
• Coil Power Rating: 35 VA
• Frequency: 50/60 Hz
• Mounting Type: Surface
• Full Load Amps: 30 A
• Poles Description: 8P 8 NO
• Inrush Power In Va: 180-180 VA 60 Hz; 170-170 VA 50 Hz
• Hold-In Power Consumption In Va: 35-35 VA 60 Hz || 35-35 VA 50 Hz
• Nema Degree Of Protection: NEMA 1 painted sheet steel surface
• Auxiliary Contact: 8NO
