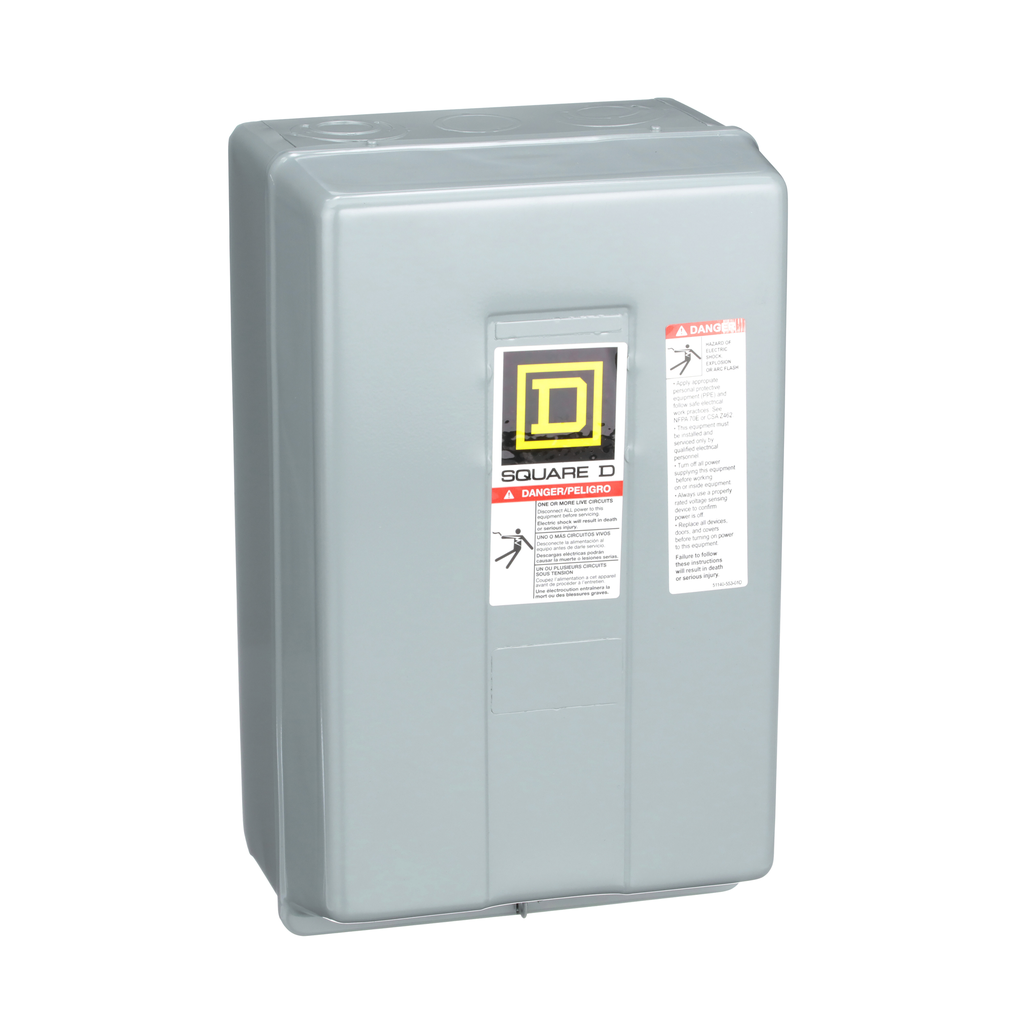

Square D 8903LG60V02 110/120 VAC 30 Amp 6-Pole 6NO Electrically Held Lighting Contactor

Product Description

The Square D 8903LG60V02 is an electrically held lighting contactor that operates on 110/120 VAC. This device is designed for lighting control applications, capable of managing a load of up to 30 Amperes for fluorescent lighting or 20 Amperes for tungsten lighting. The device is equipped with six normally open (NO) contacts, allowing for versatile installations.

• Electrically held device for effective control.
• Supports a wide voltage range with interchangeable operating coils.
• Designed with UL and CSA approvals for reliable safety.

Product Highlights

This lighting contactor is renowned for its reliability in commercial and industrial settings. With a NEMA 1 enclosure for indoor use, it ensures a safe environment for electrical operations.

Product Information

Standard Information

• Brand: Square D
• MPN: 8903LG60V02

Technical Specifications

• Voltage: 110/120 VAC
• Current Rating: 30 Amp (Fluorescent), 20 Amp (Tungsten)
• Dimensions: 12.69 inches tall, 7.81 inches wide, 6.03 inches deep
• Number of Poles: 6 Pole
• Contact Configuration: 6 NO
• Enclosure Type: NEMA 1
• Country of Origin: Mexico
• Warranty Length: 18 months
