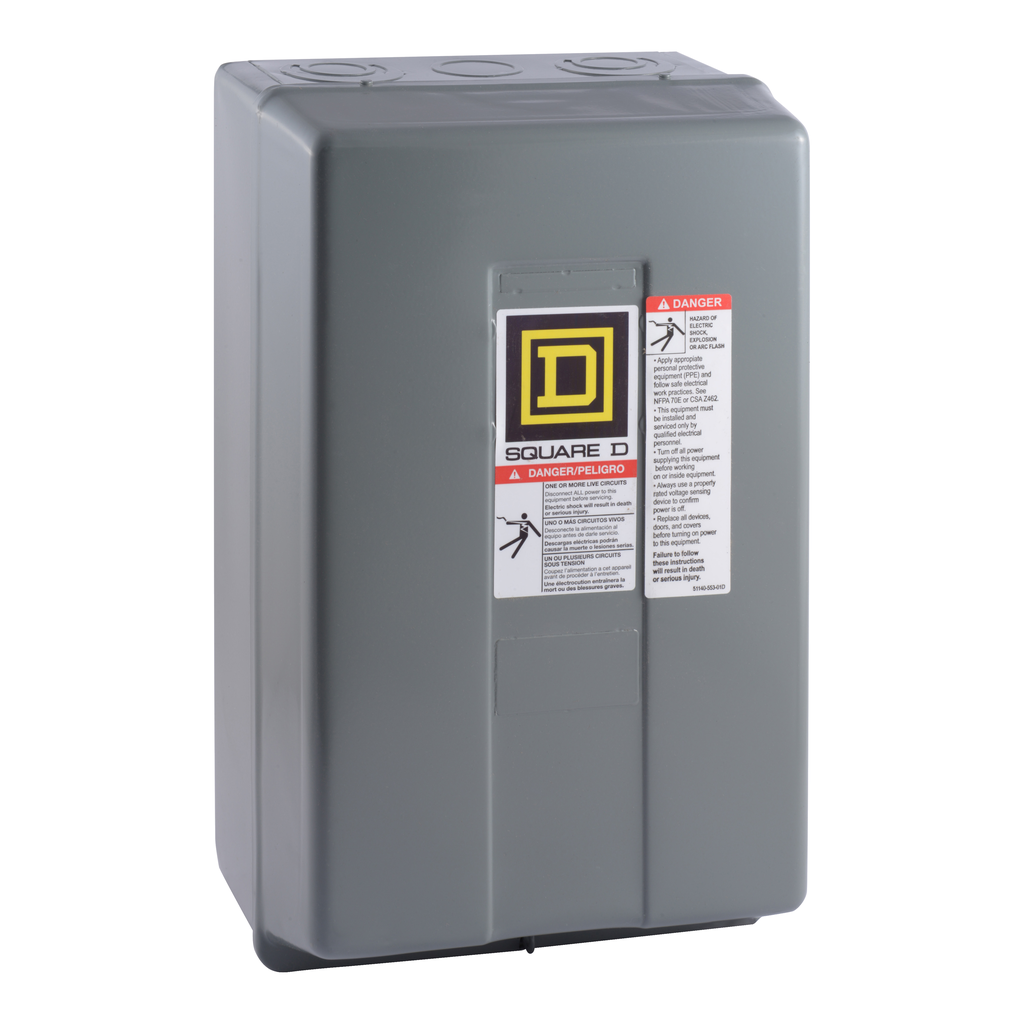

Square D 8903LG40V04 30 Amp 4-Pole Electrically Held Lighting Contactor

Product Description

The Square D 8903LG40V04 is an electrically held lighting contactor designed for lighting control applications. This device can handle loads up to 30 amps for fluorescent and 20 amps for tungsten lighting. It features four normally open contacts that can be converted in the field. The contactor comes with a 277 VAC 60 Hz interchangeable operating coil, which can also accommodate a variety of other coil voltages up to 600 VAC. Enclosed in a NEMA 1 painted sheet steel housing, this product is UL Listed and CSA Certified, ensuring compliance with safety standards.

• This contactor supports electrified lighting control.
• Can switch various lighting types and loads.
• Easy to replace coil and contacts.

Product Highlights

This lighting contactor offers reliable operation for electric lighting systems with flexible coil voltage options.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D
• Country of Origin: Mexico

Technical Specifications

• MPN: 8903LG40V04
• Current Rating: 20 Amps Tungsten / 30 Amps Fluorescent
• Coil Voltage: 277 VAC at 60 Hz
• Number of Poles: 4 Pole
• Contact Configuration: 4 NO
• Enclosure Size: 12.69 inches height, 7.81 inches width, 6.03 inches depth
• Warranty: 18 months
• UPC: 785901625650
