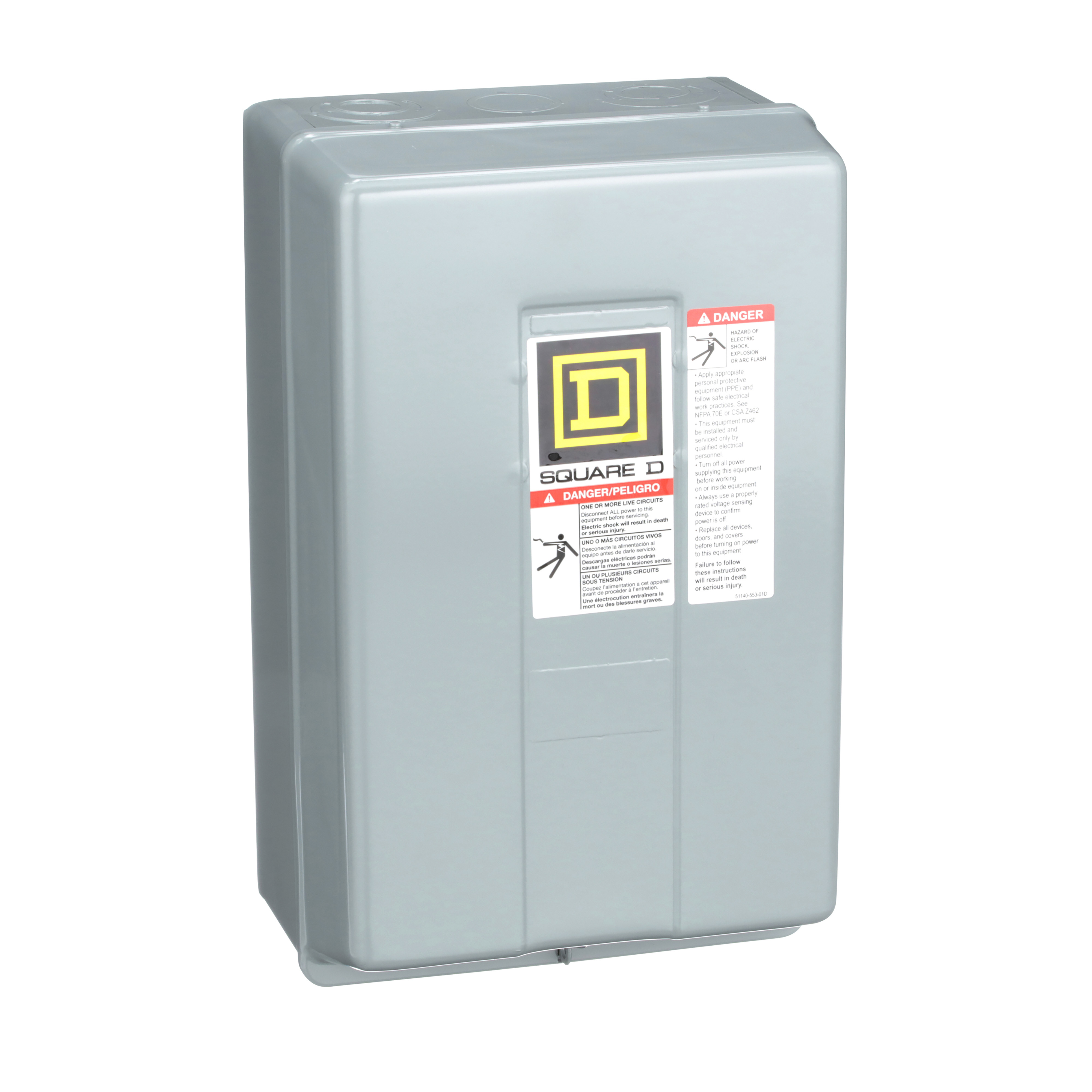

Square D 8903LG40V02 110/120 VAC 30 Amp 4-Pole 4NO NEMA 1 Electrically Held Lighting Contactor

Product Description

The Square D 8903LG40V02 is a 110/120 VAC 30 Amp 4-Pole Electrically Held Lighting Contactor. It is designed for lighting control applications and supports up to 30 Amp fluorescent and 20 Amp tungsten loads. This contactor features field-convertible contacts and is UL Listed and CSA Certified.

• Operates at 110/120 VAC, 50/60 Hz
• Electrically held device with 4 normally open contacts
• Replaceable coil and contacts for easy maintenance

Product Highlights

It provides reliable switching for various lighting systems and fits into a NEMA 1 enclosure.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 8903LG40V02
• Type: Electrically Held Lighting Contactor
• Current Rating: 30 Amp fluorescent, 20 Amp tungsten
• Coil Voltage: 110/120 VAC
• Number of Poles: 4
• Contact Configuration: 4 NO
• Dimensions: 12.69 inches tall, 7.81 inches wide, 6.03 inches deep
• Weight: 10.10 lb
