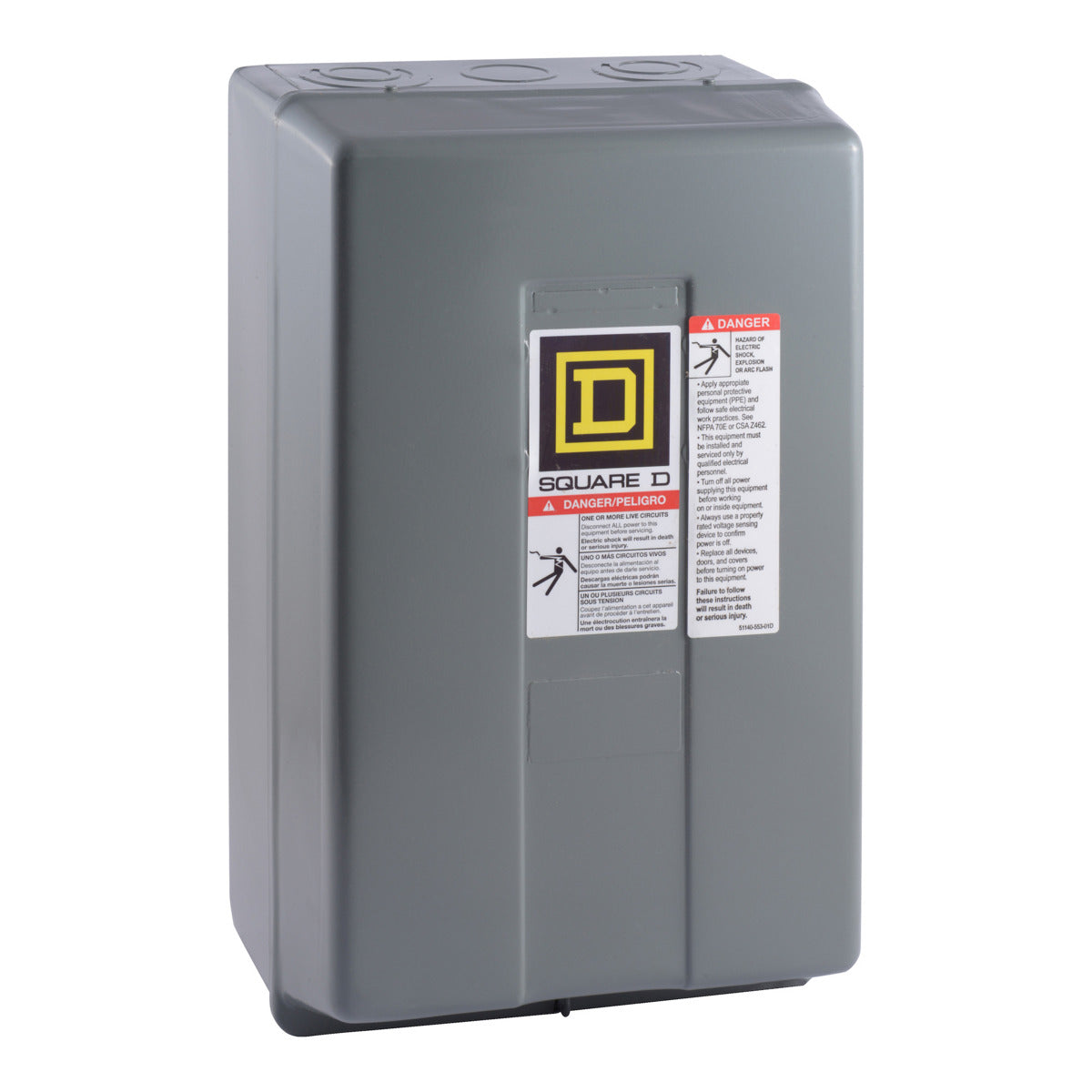

Square D 8903LG30V04 Lighting Contactor 277 VAC 30 Amp 3 Pole NEMA 1

Product Description

The Square D 8903LG30V04 is an electrically held lighting contactor designed for various lighting control applications. This contactor can handle loads of up to thirty amps for fluorescent lighting and twenty amps for tungsten lighting. It features three normally open (NO) contacts, allowing versatile usage in different configurations. The device is equipped with a 277 volt alternating current operating coil, with options available for other common voltages up to six hundred volts.

• Handling capability: Up to 30 Amperes for fluorescent loads and 20 Amperes for tungsten.
• Field convertible contacts from normally open to normally closed.
• NEMA 1 enclosure suitable for indoor use, with dimensions of twelve point six nine inches in height, seven point eight one inches in width, and six point zero three inches in depth.

Product Highlights

This contactor is UL listed and CSA certified, ensuring reliability in construction and performance standards. Easily replaceable coils and contacts enhance operational efficiency.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 8903LG30V04
• Number of Poles: 3 Pole
• Current Rating: 20 Amperes
• Height: 12.69 inches
• Width: 7.81 inches
• Depth: 6.03 inches
• Coil Voltage: 277 @ 60 Hz Volts
• Country of Origin: Mexico
