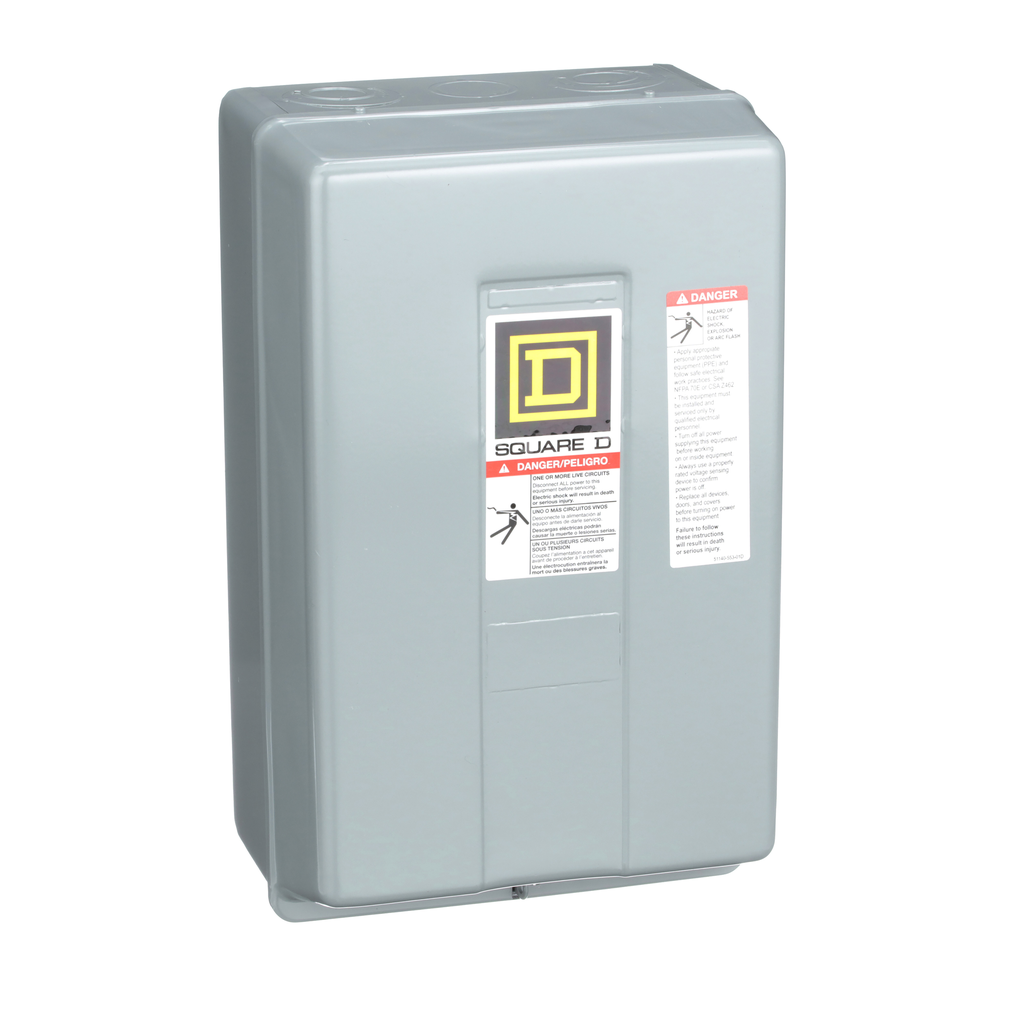

Square D 8903LG30V02 110/120 VAC 30 Amp 3-Pole 3NO NEMA 1 Electrically Held Lighting Contactor

Product Description

Square D offers the 8903LG30V02, a three-pole contactor that operates at 110/120 VAC and can handle up to 30 Amps for lighting control applications. This is an electrically held contactor that is suitable for switching both fluorescent and tungsten lighting loads. It features three Normally Open (NO) contacts, with the ability to convert contacts from NO to Normally Closed (NC) as needed. The unit comes equipped with a standard interchangeable operating coil that works at 50/60 Hz, and other coils are available for a range of voltages up to 600 VAC.

• Field-convertible contacts from NO to NC
• Handles 30 A fluorescent and 20 A tungsten lighting loads
• UL Listed and CSA Certified for safety

Product Highlights

This contactor is designed for long-term usage and is enclosed in a NEMA 1 painted sheet steel case for protection. The coil and contacts can be easily replaced, ensuring simple maintenance.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 8903LG30V02
• Coil Voltage: 110 V AC 50 Hz / 120 V AC 60 Hz
• Contact Rating: 20-20 A tungsten / 30-30 A fluorescent
• Number of Poles: 3 Pole
• Height: 12.69 inches
• Width: 7.81 inches
• Depth: 6.03 inches
• Country of Origin: Mexico
• Warranty Length: 18 months
