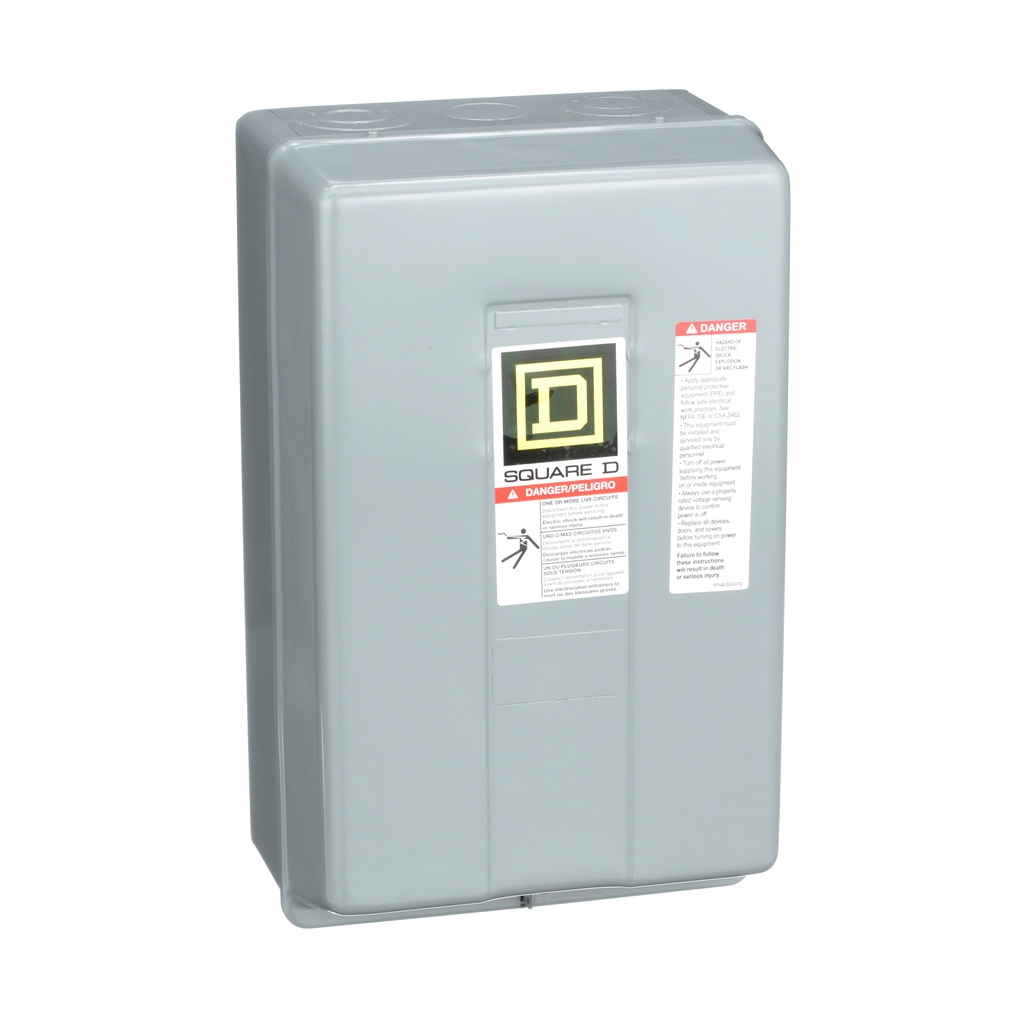

Square D 8903LG20V02 110/120 VAC 30 Amp 2-Pole 2NO NEMA 1 Electrically Held Lighting Contactor

Product Description

Square D 8903LG20V02 is a 110/120 VAC, 30 Amp, 2-Pole, 2NO electrically held lighting contactor. It is designed for controlling lighting in various applications. This contactor can handle lighting loads of up to 30 Amperes for fluorescent and 20 Amperes for tungsten. The device is easily field convertible from normally open (NO) to normally closed (NC) contacts. Provided with an interchangeable coil rated for 110/120 VAC at 50/60 Hz, it supports a broad range of operating voltages up to 600 VAC.

• Electrically held configuration
• Field convertible contacts
• UL Listed and CSA Certified

Product Highlights

This lighting contactor features a compact design and easy replacement for coils and contacts. It is suitable for various environments due to its NEMA 1 painted sheet steel enclosure, which is available in multiple types according to user needs.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 8903LG20V02
• Coil Voltage: 110/120 VAC
• Current Rating: 30A fluorescent, 20A tungsten
• Number of Poles: 2 Pole
• Contact Configuration: 2 NO
• Dimensions: 12.69 inches tall, 7.81 inches wide, 6.03 inches deep
• Weight: 9.62 lbs
• Country of Origin: Mexico
• Warranty: 18 months
