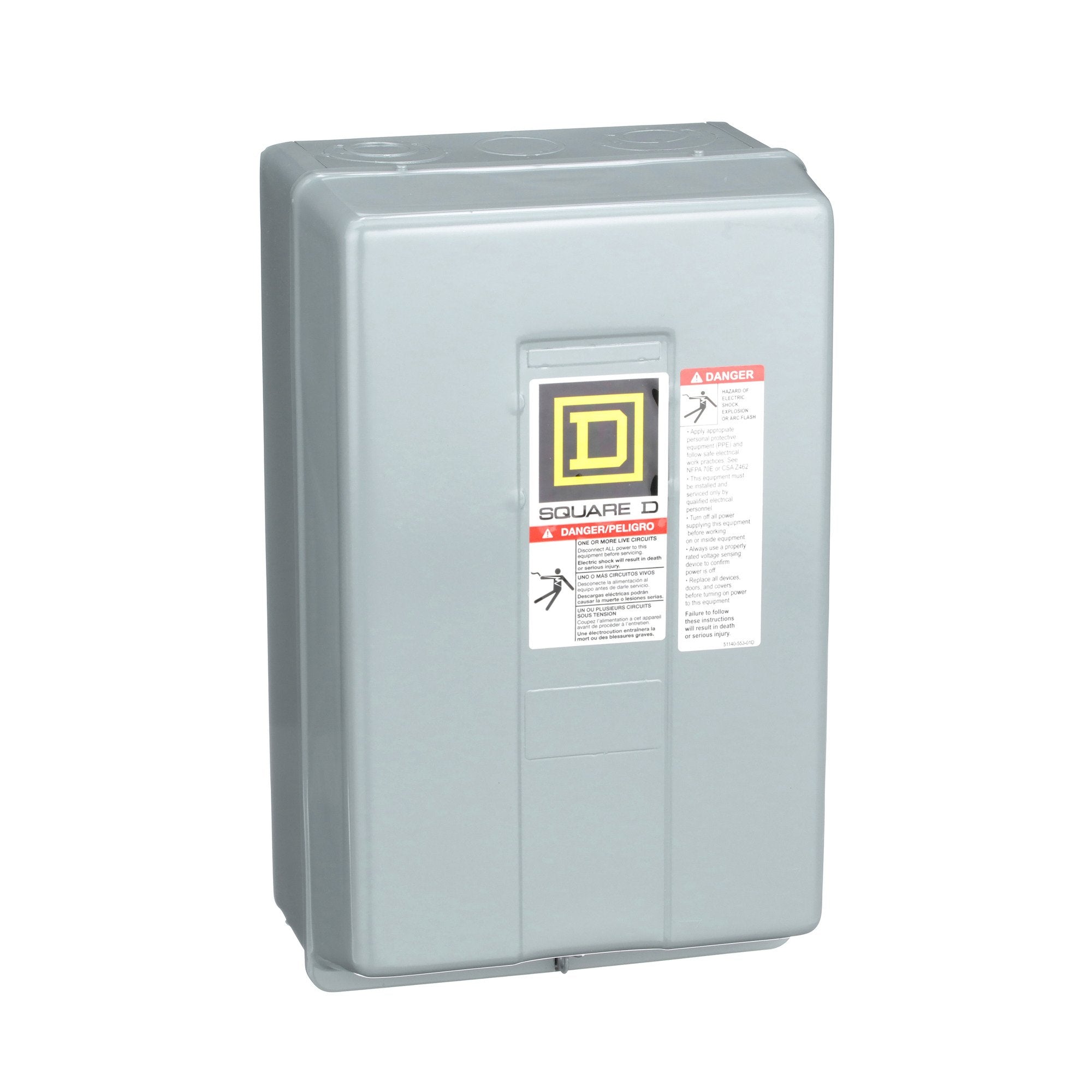

Square D 8903LG1200V02 110/120 VAC 30 Amp 12-Pole 12NO NEMA 1 Electrically Held Lighting Contactor

Product Description

Square D 8903LG1200V02 is an electrically held lighting contactor designed for lighting control applications. This device is a multipole contactor capable of switching lighting loads of up to 30 amps for fluorescent and 20 amps for tungsten. The device features twelve normally open contacts, allowing for efficient control over multiple lighting circuits.

• Replaceable coil and contacts
• For 30A fluorescent or 20A tungsten lighting loads
• UL and CSA approved

Product Highlights

This contactor is equipped with a 110/120 VAC operating coil and can be configured for various voltage ratings up to 600 VAC. The NEMA 1 enclosure is made of painted sheet steel, ensuring durability. Field-convertible contacts provide flexibility for different configurations, allowing for easy maintenance and adaptations.

Product Information

Standard Information

• Catalog Number: 8903LG1200V02
• Brand: Square D
• Manufacturer: Schneider Electric
• Country of Origin: Mexico
• Warranty Description: Contractual Warranty: 18 months

Technical Specifications

• Coil Voltage: 110@50Hz/120@60Hz VAC
• Contact Rating: 20A tungsten / 30A fluorescent
• Number of Poles: 12 Pole
• Net Weight: 4.99 kg
• Dimensions: 12.69 inches tall, 7.81 inches wide, 6.03 inches deep
• Current: 20 Amp
• Connection Type: Screw-clamp terminals
