Product Description

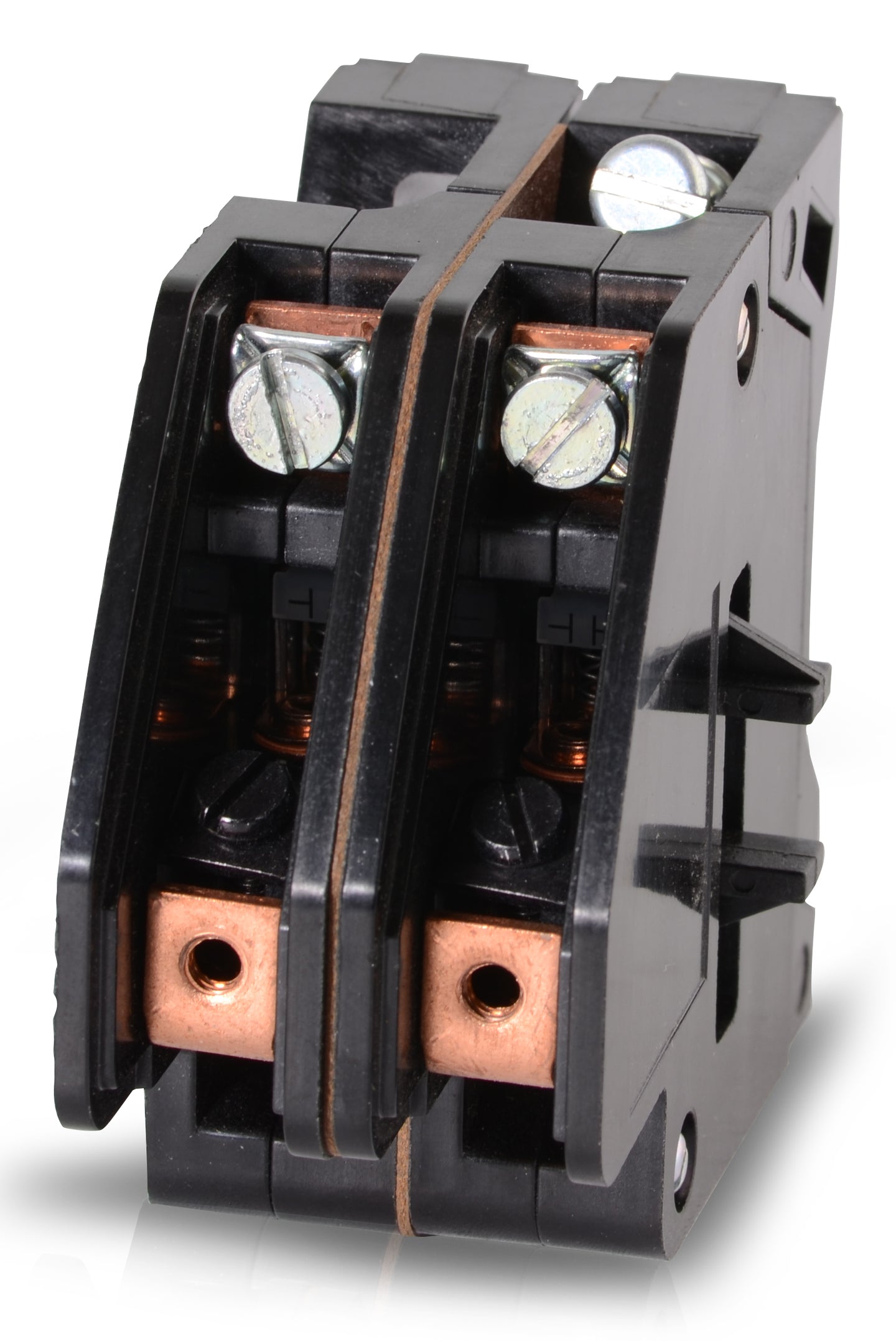

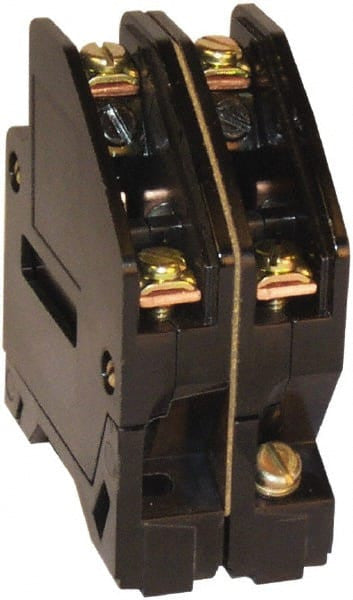

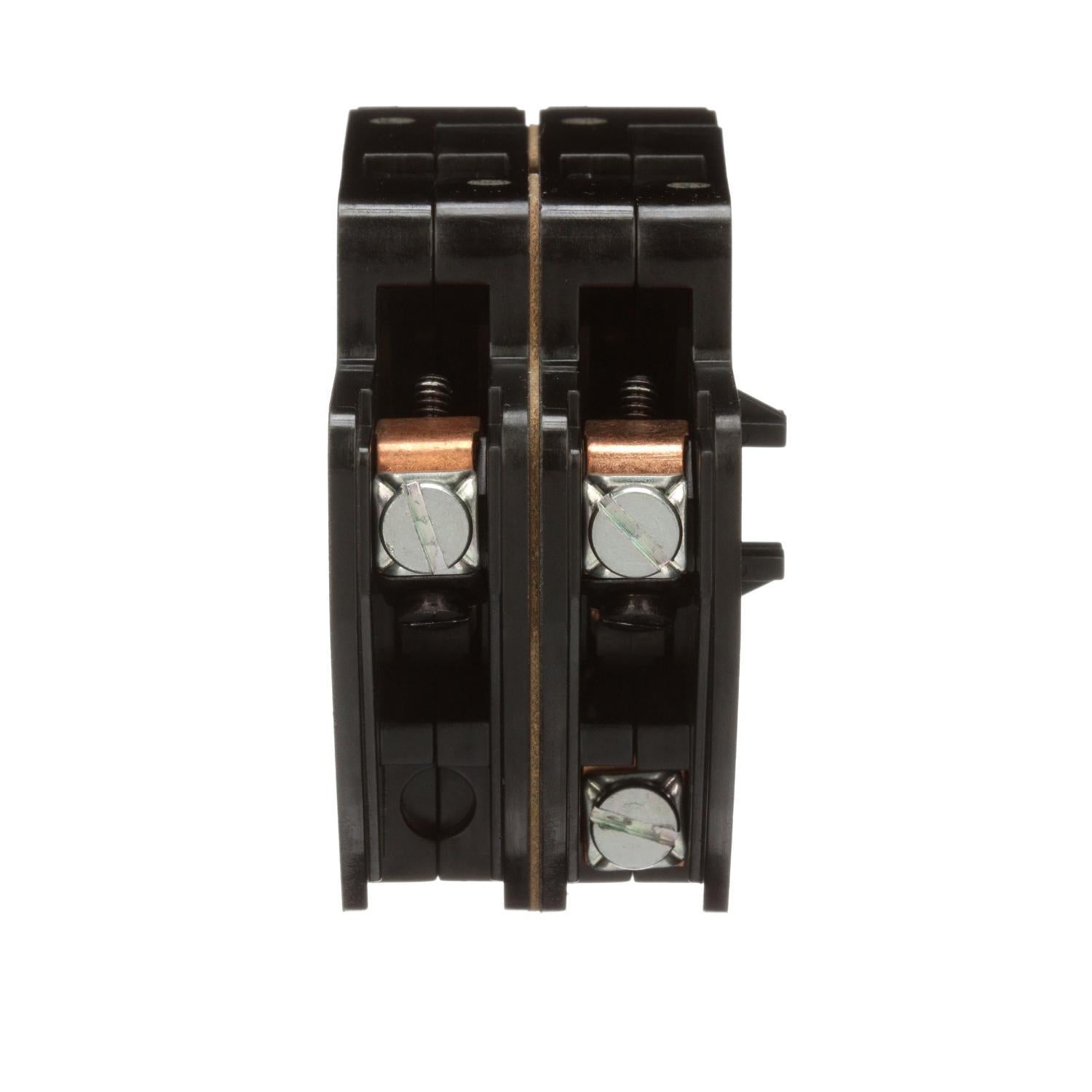

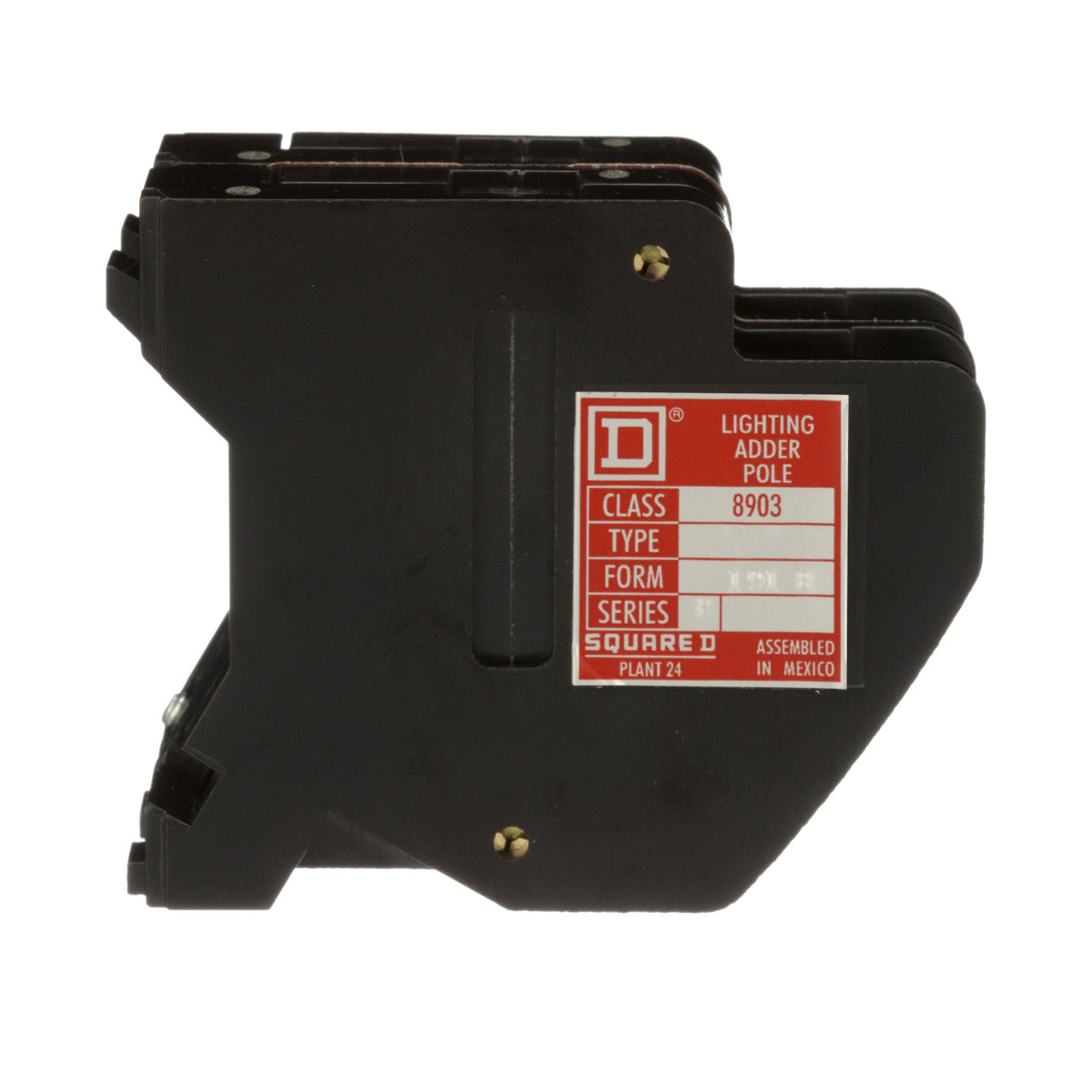

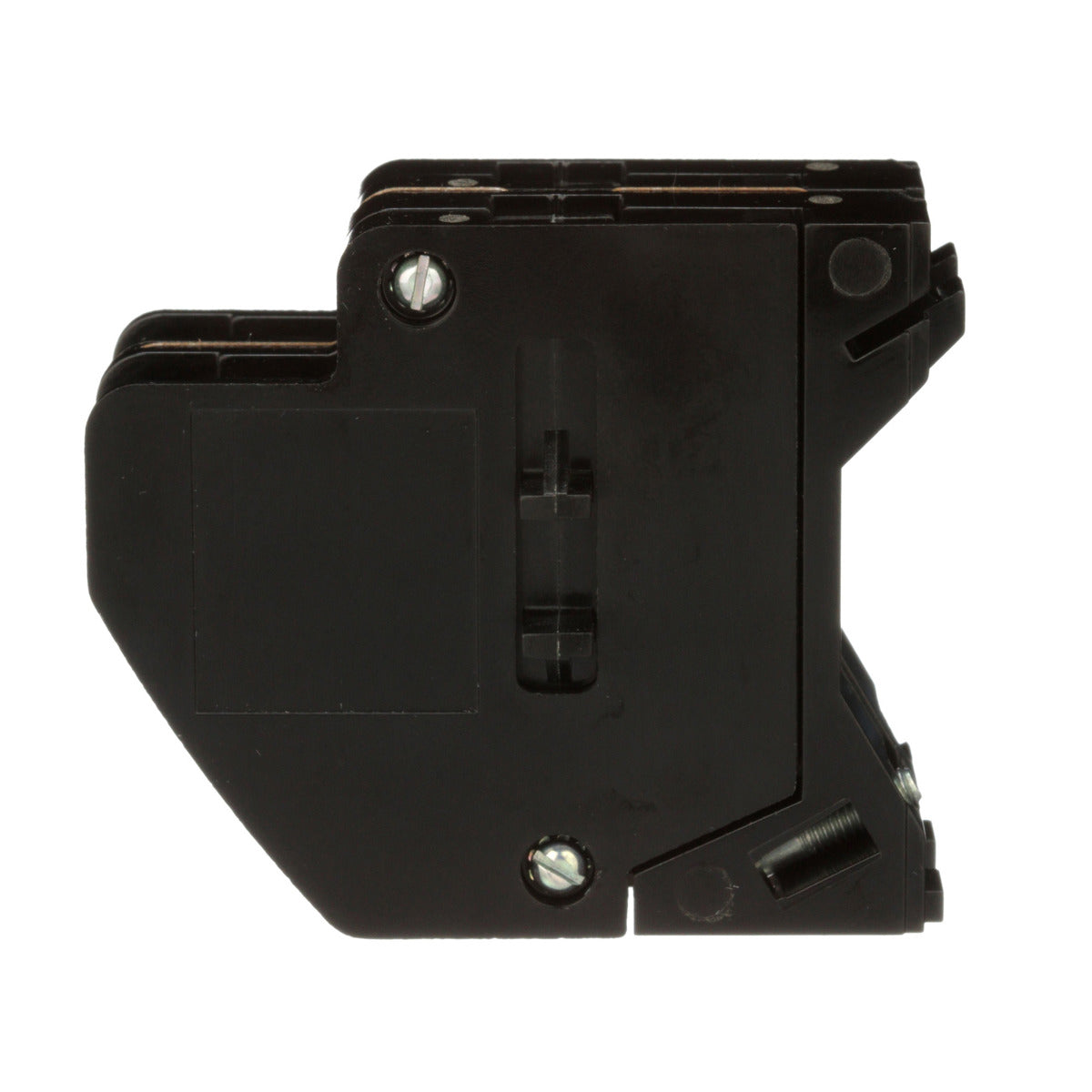

The Square D 8903L3L multipole lighting contactors are for lighting control applications and available in mechanically or electrically held versions. This power pole can be added to the left side of any 8903L lighting contactor. The power pole has two normally open contacts that can switch up to 30 A fluorescent and 20 A tungsten lighting loads.
- For lighting control applications
- Available in either mechanically held or electrically held versions
- Can be added to the left side of any 8903L lighting contactor
Product Highlights
Contacts are field convertible from NO to NC. UL Listed and CSA Certified when used with 8903L lighting contactors.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: 8903L3L
-
Country of Origin: Mexico
Technical Specifications
-
Type: Auxiliary Contact Module
-
Brand: Square D
-
Sub Brand: SCHNEIDER ELECTRIC
-
Applications: ADDITION OF POWER POLES ON 8903L/LX LIGHTING CONTACTORS
-
TC Connection: Screw-clamp terminals
-
Certifications: CSA,UL Listed
-
Contact Rating: 30A, 600V MAX
-
Country of Origin: Mexico
-
Contact Configuration: 3-POLE
-
Operating Temperature: 40C AMBIENT
-
Size: 1.97 in
-
Depth: 50 mm
-
Width: 64 mm
-
Height: 77 mm
-
Manufacturer: Schneider Electric
-
Made in USA: No
-
UPC: 785901620242
-
GTIN: 00785901620242
-
Item [Specifications]: Lighting Contactor Power Pole Adder
-
Features [Specifications]: Halogen free plastic parts product; Mercury Free; PVC Free; Green Premium product; Toxic Heavy Metal Free
-
Standards [Specifications]: UL Listed; CSA
-
Contactor Type [Specifications]: Auxiliary Contact Module
-
Electrical Connections [Specifications]: Screw-clamp terminals
-
Series: 8903
-
Amperage: 30
-
Voltage: 600VAC
-
Poles: 2
-
Approval: UL, CSA
-
Frame Type: 8903
-
Connection Type: Screw Clamp
-
For Use With: 8903L/LX Lighting Contactor
-
Standards: RoHS
-
Temperature Rating: 40°C
-
Mpn: 8903L3L
-
Category: Business & Industrial
Electrical Equipment & Supplies
Contactors
Lighting Contactors
-
Contactor Accessory Type: Power Pole Adder
-
ECCN: EAR99
-
UNSPSC: 39121529
-
Rated Current: 30A
-
Rated Voltage: 600V ac
-
No. of Poles: 2
-
Voltage Rating: 600 V
-
Amperage Rating: 30 A
-
Suitable For Use With: Class 8903L/LX Type Lighting Contactor
