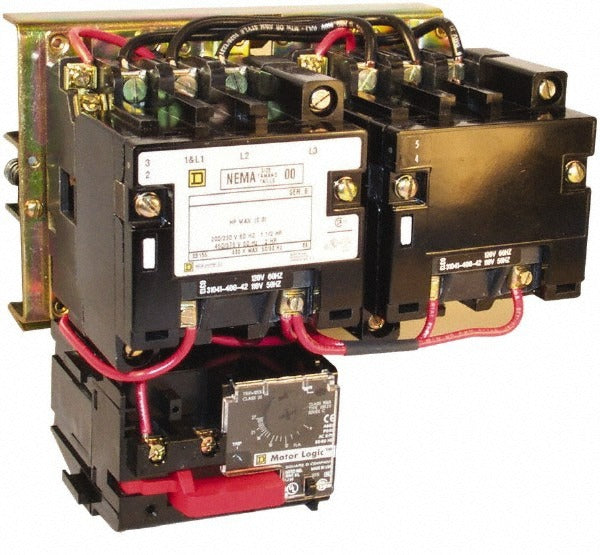

Square D 8736SCO7V02S Nema Size 1 Reversible Motor Starter 27A

Product Description

The SQUARE D 8736SCO7V02S is a reversible NEMA Size 1 motor starter designed for three-phase motor control applications. It accepts a coil voltage of 110 volts AC at 50 Hz or 120 volts AC at 60 Hz, making it suitable for both domestic and international power configurations. Rated at 27 amps, this starter handles motor loads up to 10 horsepower at 460 volts AC and 575 volts AC, or up to 7.5 horsepower at 200 volts AC and 230 volts AC. The open enclosure construction is intended for installation inside a suitable enclosure or control panel. Licensed electricians and industrial control technicians are the primary installers of this device.

This reversible motor starter is used in commercial and industrial settings where a three-phase motor must run in both forward and reverse directions. Typical applications include conveyor systems, pumps, compressors, fans, and other motor-driven equipment requiring directional control. The open enclosure format means the unit must be mounted inside a field-supplied enclosure that meets the requirements of the installation environment. Its NEMA Size 1 rating aligns it with standard control panel designs across a wide range of light-to-medium industrial motor loads.

Key Features

• Reversible operation for forward and reverse three-phase motor control
• 27-amp continuous current rating at NEMA Size 1
• Dual coil voltage rating: 110 volts AC at 50 Hz and 120 volts AC at 60 Hz
• Three-phase horsepower ratings: 10 HP at 460 and 575 volts AC, 7.5 HP at 200 and 230 volts AC
• Open enclosure design for panel or enclosure-mounted installations
• UL Listed, CSA certified, and RoHS compliant

Compatibility

Designed as an OEM-style reversible NEMA Size 1 motor starter replacement for three-phase motor control applications in commercial and industrial control panels.

Installation Notes

Installation of this motor starter must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out the circuit before mounting or wiring the starter. Because this unit uses an open enclosure, it must be installed inside a suitable enclosure that provides adequate protection for the environment. Verify that line voltage, load amperage, and motor horsepower ratings are matched to the application before energizing.
